Connector Identification

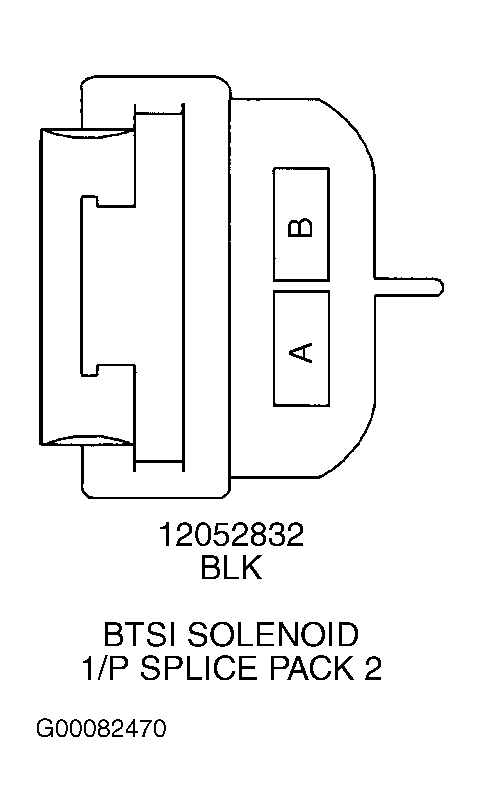

Fig 1: Identifying BTSI Solenoid Harness Connector Terminals
G00082470Courtesy of GENERAL MOTORS CORP.

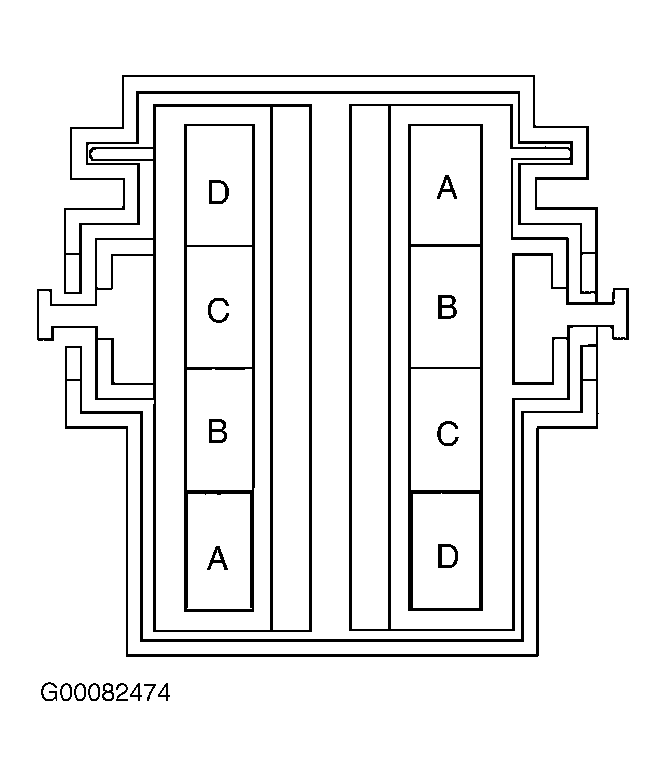

Fig 2: Identifying Stoplamp Switch Harness Connector Terminals
G00082474Courtesy of GENERAL MOTORS CORP.
