Removal Procedure

  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
  2. Remove the automatic transaxle control assembly. Refer to SHIFT CONTROL REPLACEMENT in Automatic Transaxle - 4T40-E/4T45-E (Overhaul).
  3. Using an electrical terminal pick, remove the solenoid electrical terminals from the connector body.
    Fig 1: Removing Shift Lock Control Solenoid Electrical Terminals From Connector Body
    GM893818Courtesy of GENERAL MOTORS CORP.
  4. Using a 5/32 in. drill bit, drill out the rivet attaching the solenoid to control assembly.

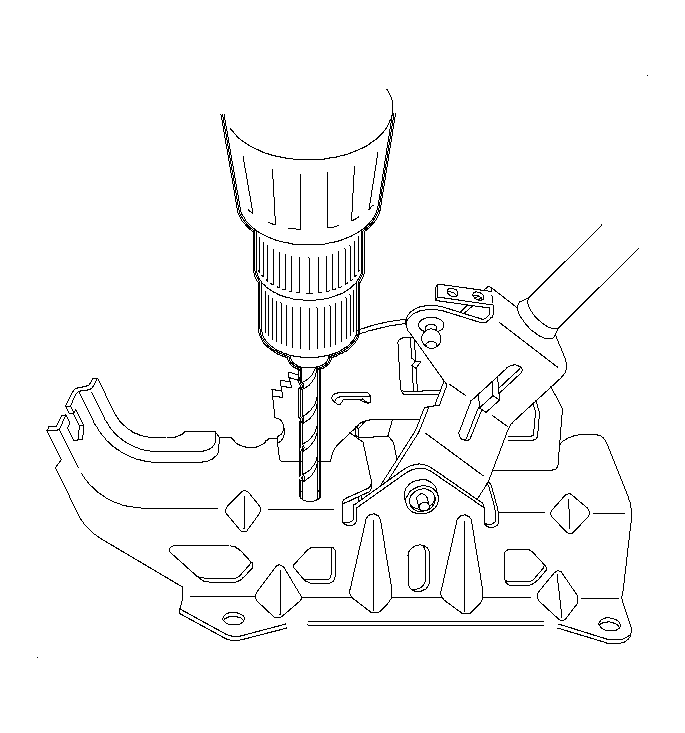

    Fig 2: Drilling Out Shift Lock Control Solenoid Rivet At Control Assembly
    GM893823Courtesy of GENERAL MOTORS CORP.
  5. Remove the shift lock control solenoid.
    Fig 3: Removing & Installing Shift Lock Control Solenoid
    GM893824Courtesy of GENERAL MOTORS CORP.
