Home >> Saturn >> 2003 >> L300 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System & Component Testing >> Computerized Engine Controls >> Engine Control Module >> Notes

Engine Control Module: Notes

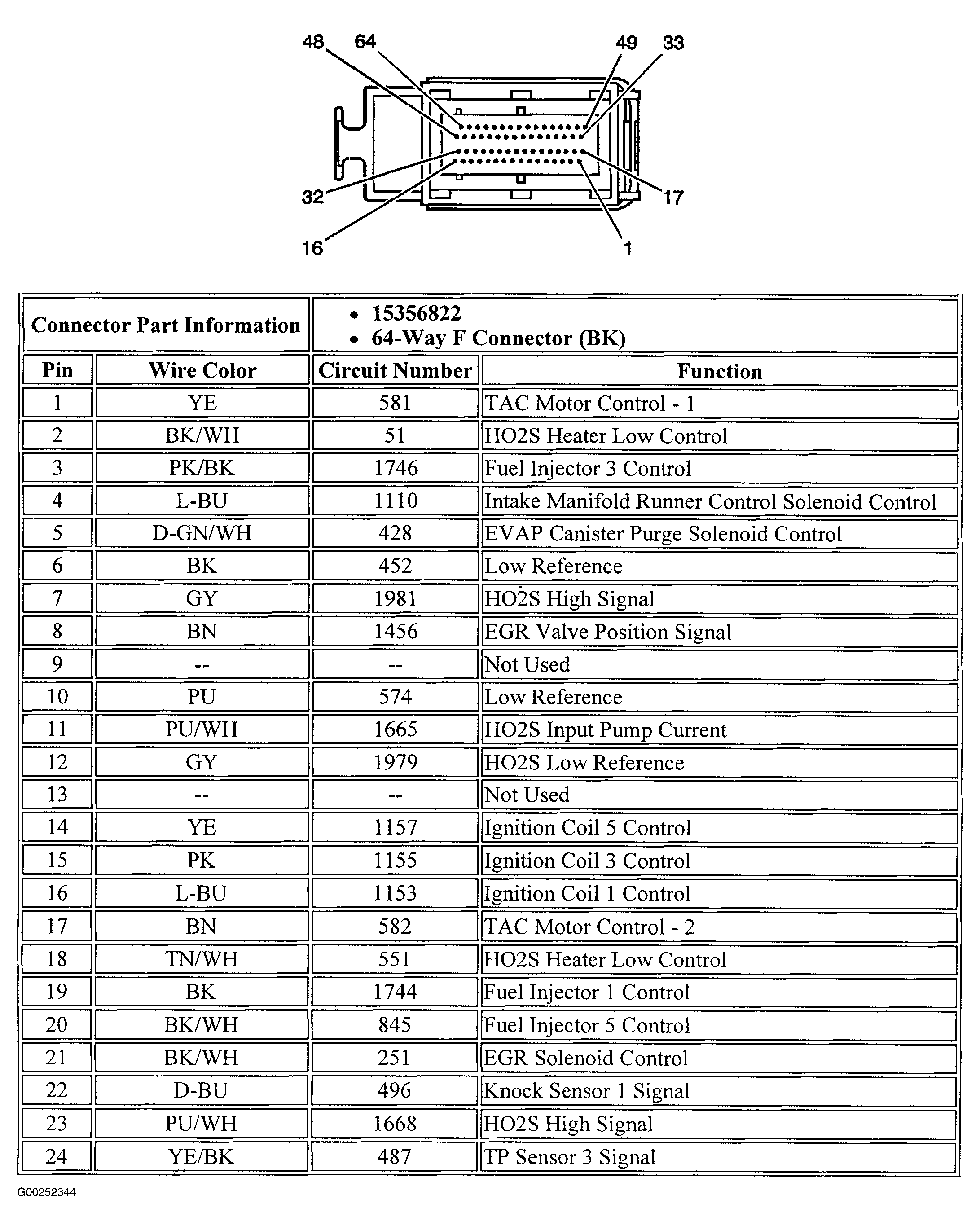

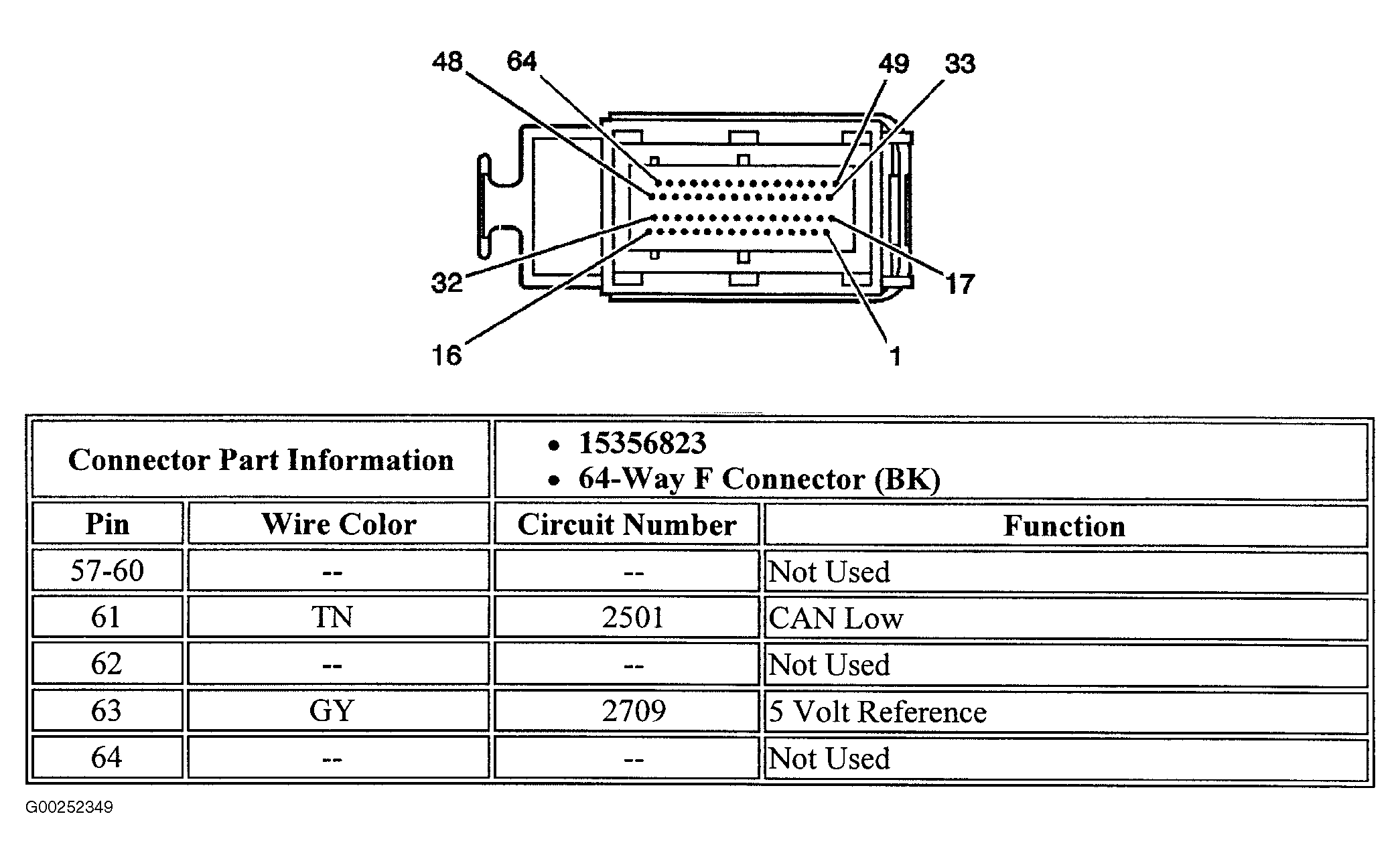

NOTE: To locate components, see COMPONENT LOCATIONS . For circuit reference, see WIRING DIAGRAMS . For connector terminal identification, see Figure -Figure .
