Installation Procedure

  1. Install the connector body to the control assembly.

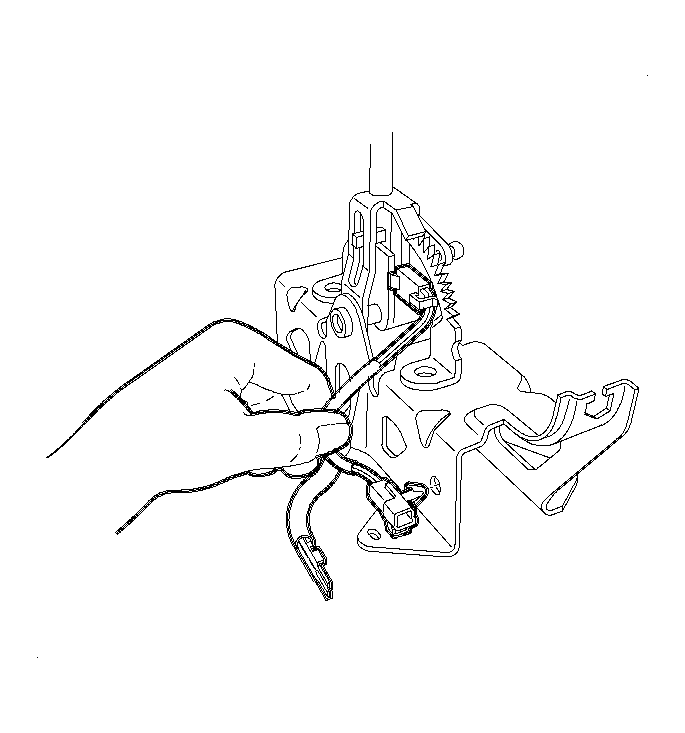

    Fig 1: Removing & Installing Park Lock Switch
    GM893820Courtesy of GENERAL MOTORS CORP.
  2. Install the park lock switch to the control assembly.
  3. Insert the shift lock control solenoid electrical terminals into the connector body.

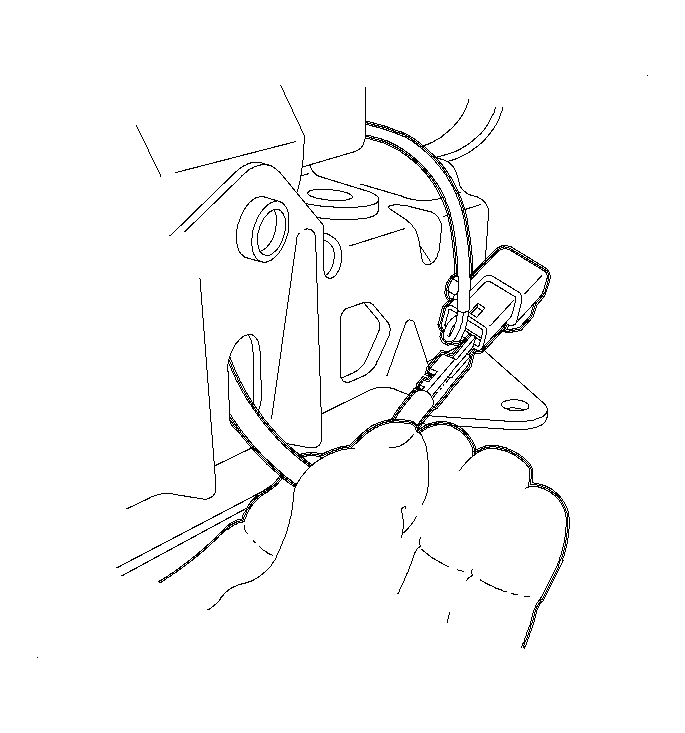

    Fig 2: Inserting Shift Lock Control Solenoid Electrical Terminals Into Connector Body
    GM893821Courtesy of GENERAL MOTORS CORP.
  4. Install the automatic transaxle control assembly. Refer to Shift Control Replacement in Automatic Transaxle - 4T40-E/4T45-E
  5. Enable the SIR system. Refer DISABLING & ACTIVATING AIR BAG SYSTEM in Air Bag Restraint Systems.
