Special Tools

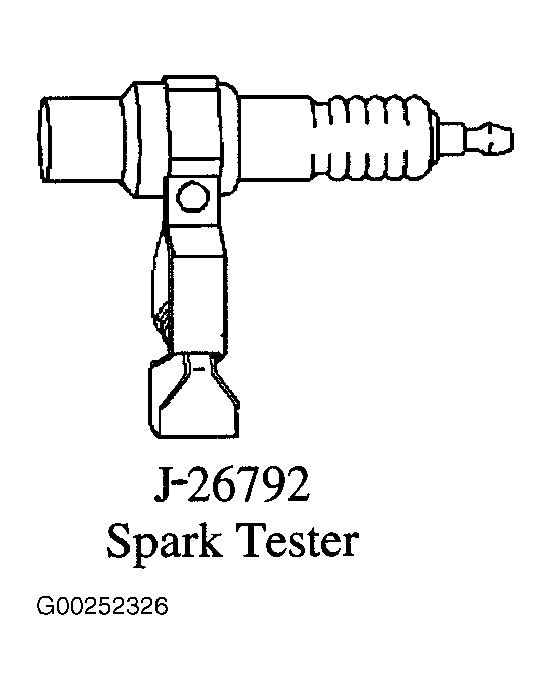

Fig 1: Spark Tester (J-26792)

G00252326

Courtesy of GENERAL MOTORS CORP.

Fig 2: Fuel Pressure Gauge (J-34730-1A)

G00252327

Courtesy of GENERAL MOTORS CORP.

Fig 3: Gauge Bar Set (SA94127E)

G00252339

Courtesy of GENERAL MOTORS CORP.

Fig 4: Fuel Pressure/Flow Adapter (SA9127E-7)

G00252340

Courtesy of GENERAL MOTORS CORP.

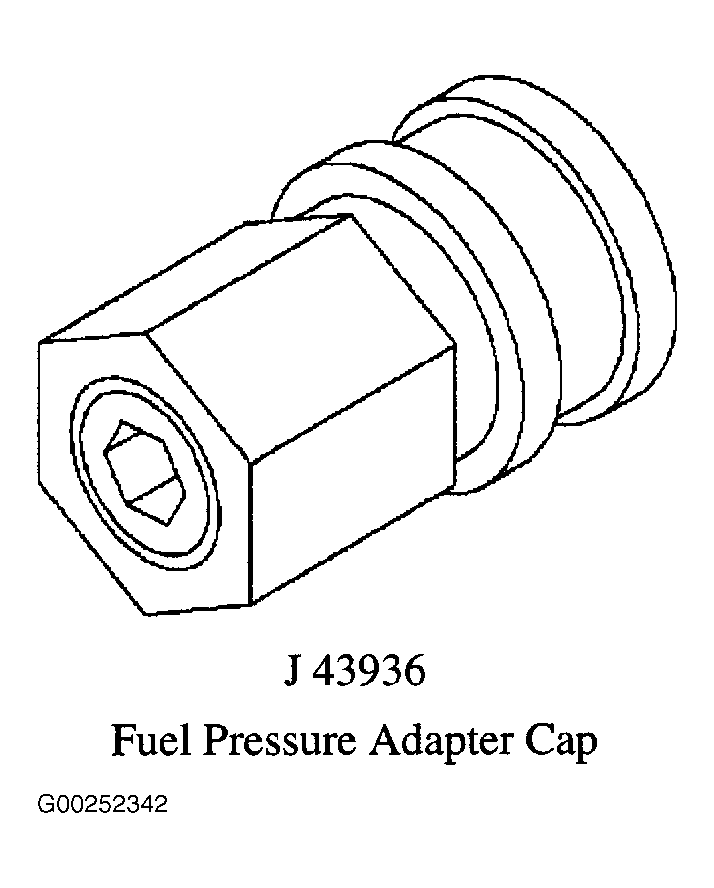

Fig 5: Fuel Pressure Adapter Cap (J-43936)

G00252342

Courtesy of GENERAL MOTORS CORP.

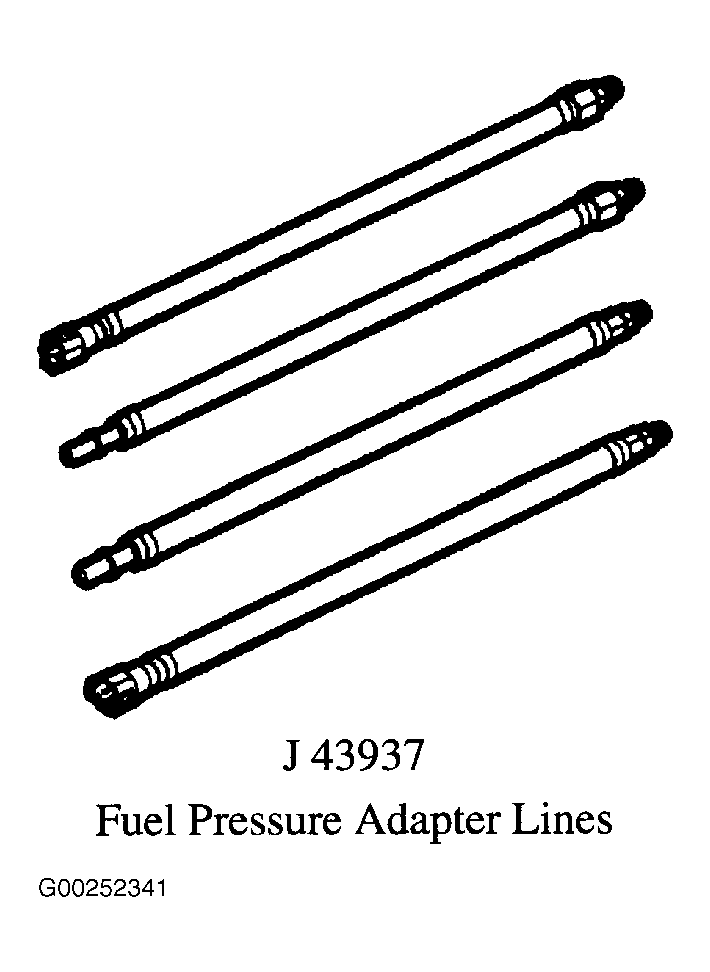

Fig 6: Fuel Pressure Adapter Lines (J-43937)

G00252341

Courtesy of GENERAL MOTORS CORP.

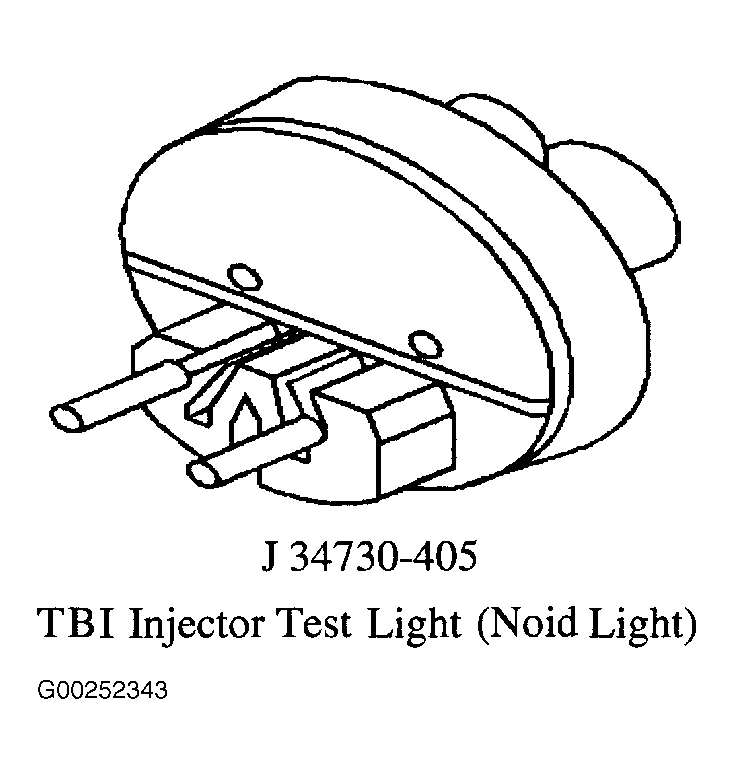

Fig 7: TBI Injector Test Light (J-34730-405)

G00252343

Courtesy of GENERAL MOTORS CORP.
