Installation Procedure

    IMPORTANT: Make sure that the ignition coil seals are properly seated to the valve cover.
  1. Install the ignition coil.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the ignition coil retaining bolts.

    Tighten:  Tighten the ignition coil retaining bolts to 10 N.m (89 lb in).

  3. Replace the ignition coil connectors.
  4. Install the ignition coil cover.
  5. Install the ignition coil cover screws.

    Tighten:  Tighten the screws to 8 N.m (71 lb in).

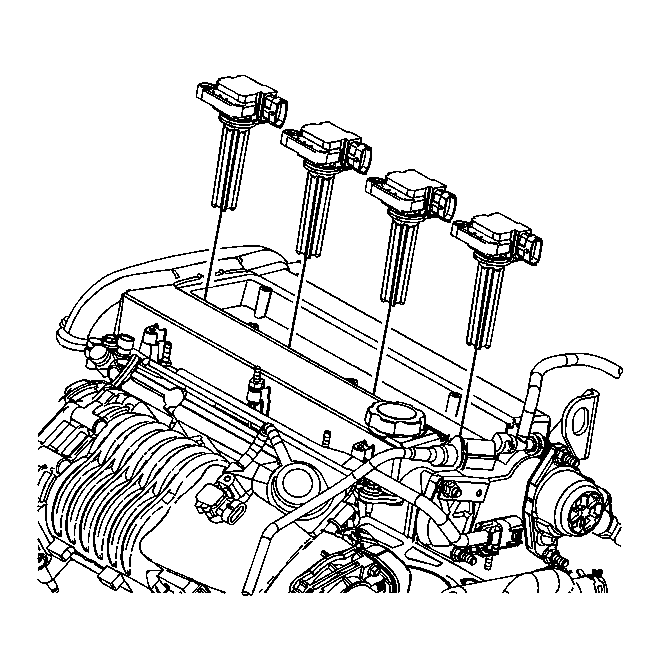

    6. Fig 1: View Of Ignition Coils
    GM1387190Courtesy of GENERAL MOTORS CORP.
