Engine Controls (Introduction)
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
Engine Controls Schematics

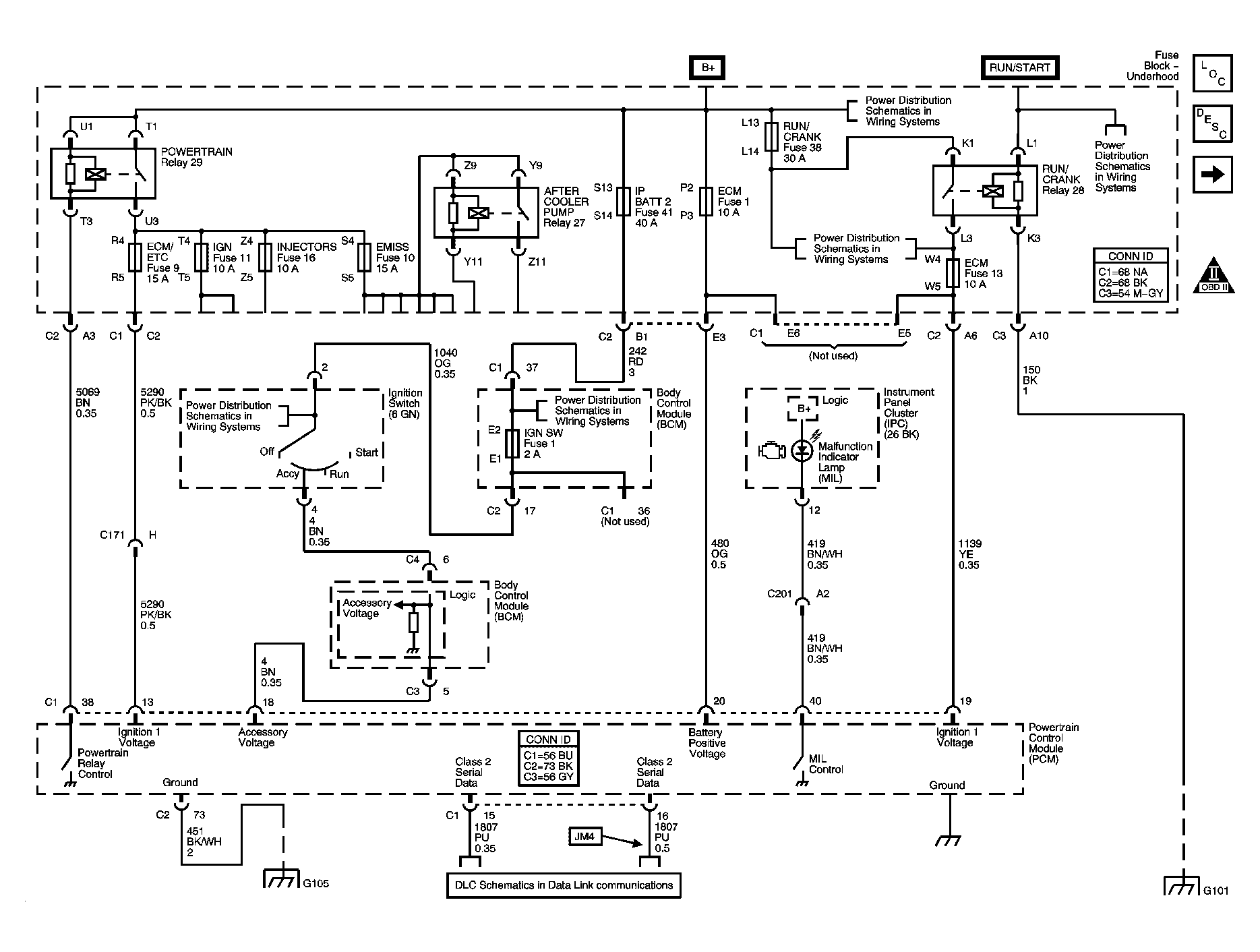

Fig 1: Power, Ground, MIL, and Serial Data Schematic
Courtesy of GENERAL MOTORS CORP.

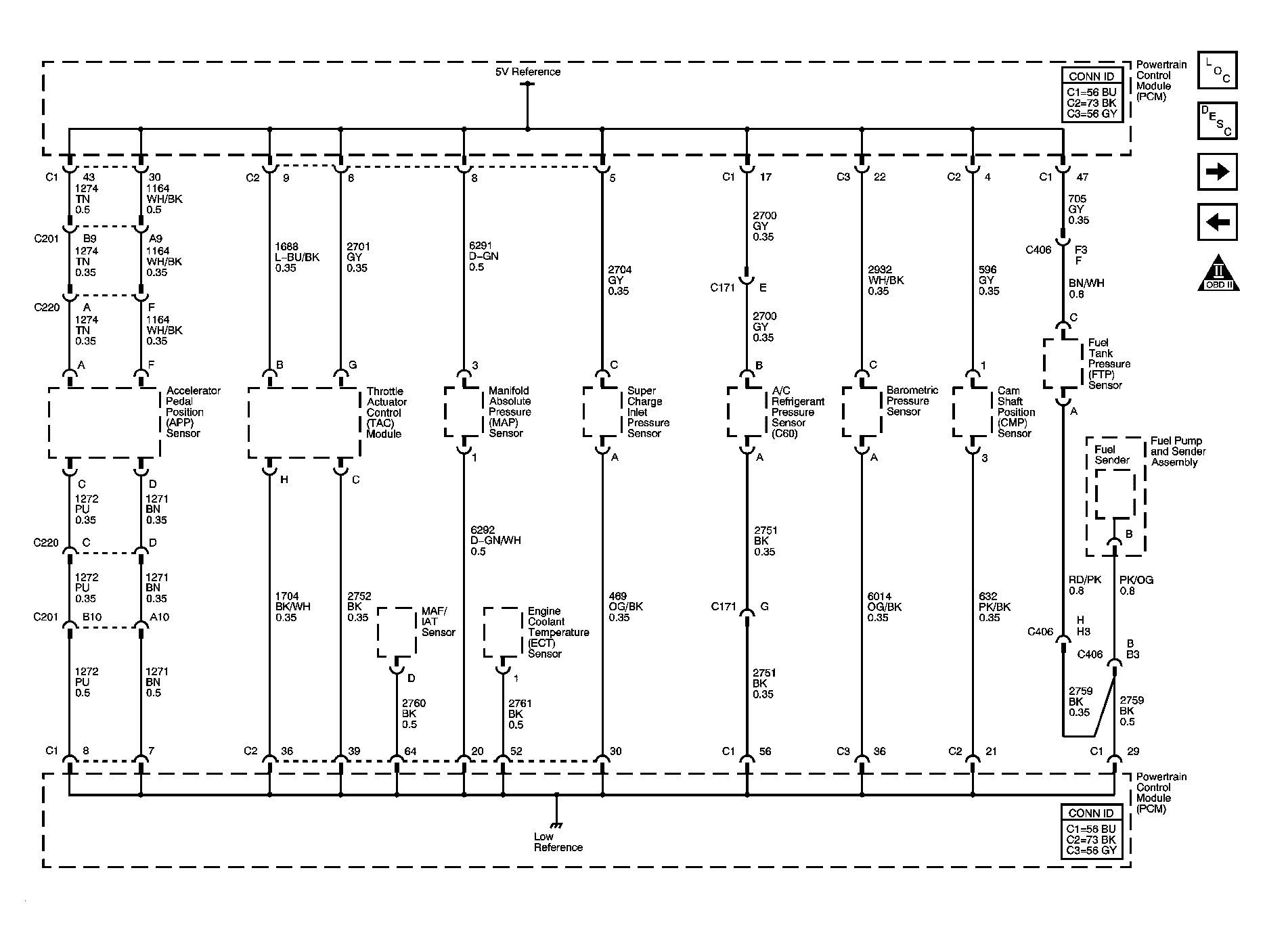

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Busing Schematic
Courtesy of GENERAL MOTORS CORP.

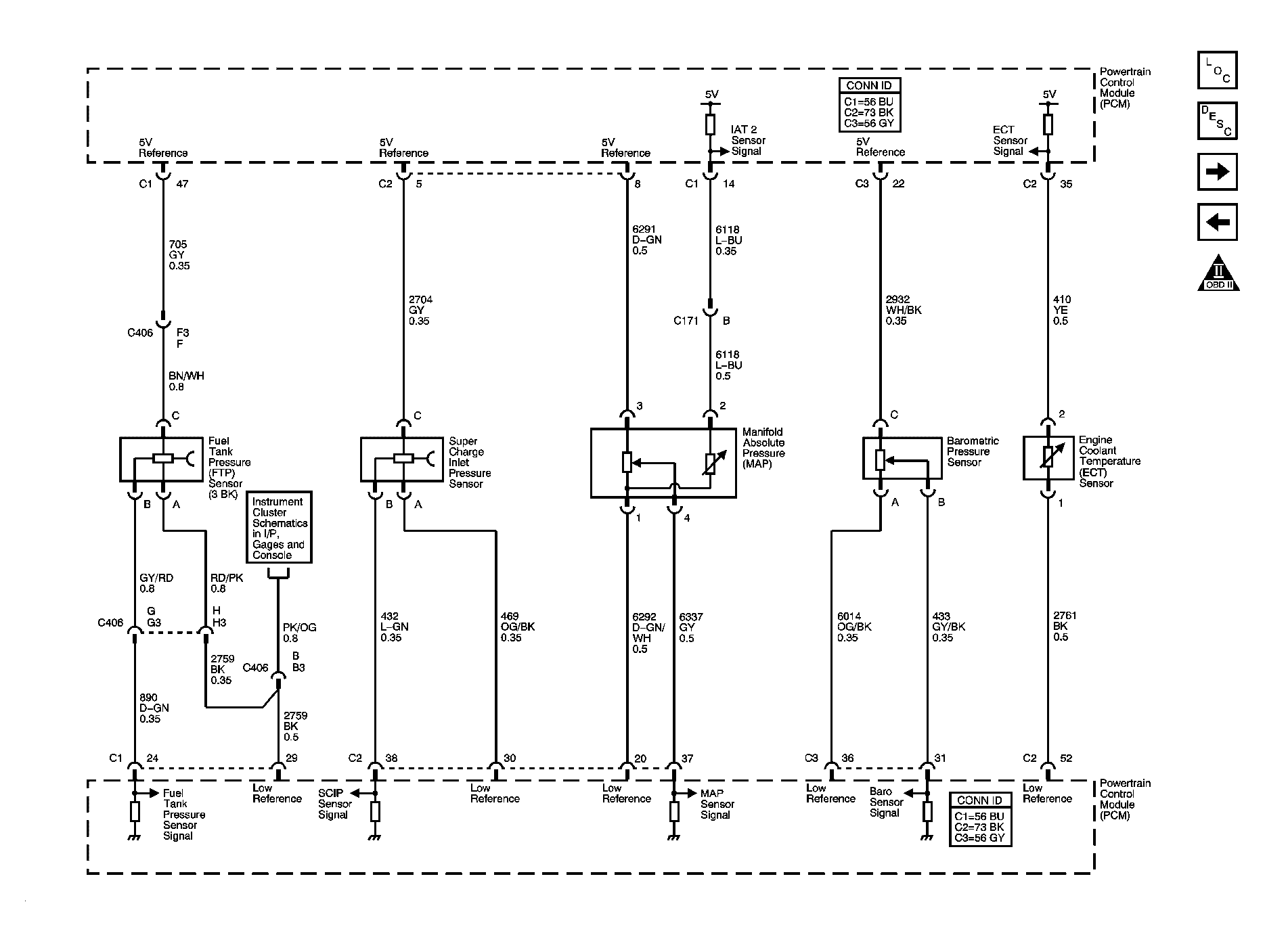

Fig 3: Engine Data Sensors - Pressure and Temperature Schematic
Courtesy of GENERAL MOTORS CORP.

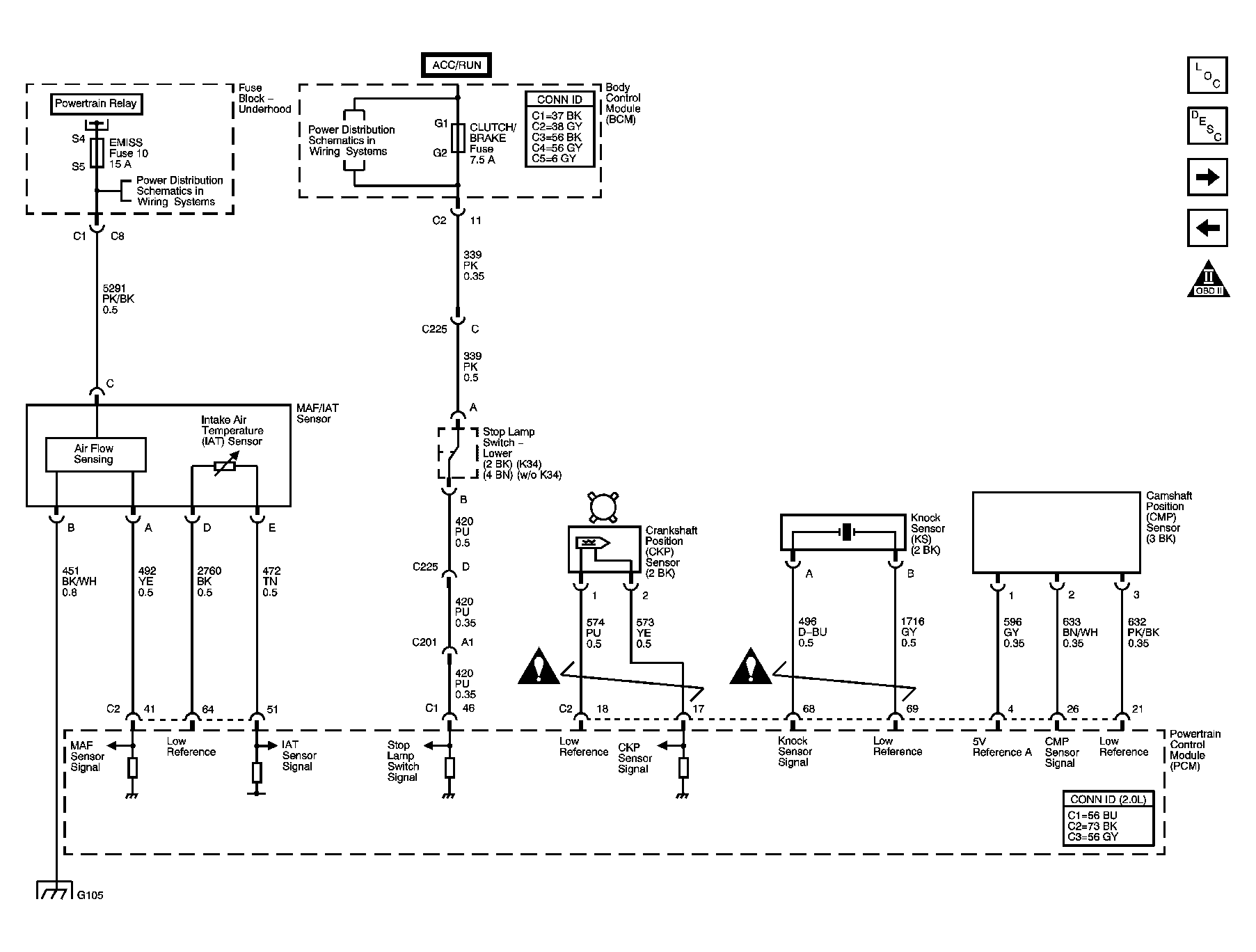

Fig 4: Engine Data Sensors Schematic - MAF/IAT, CKP, KS and Stop Lamp Switch, Lower
Courtesy of GENERAL MOTORS CORP.

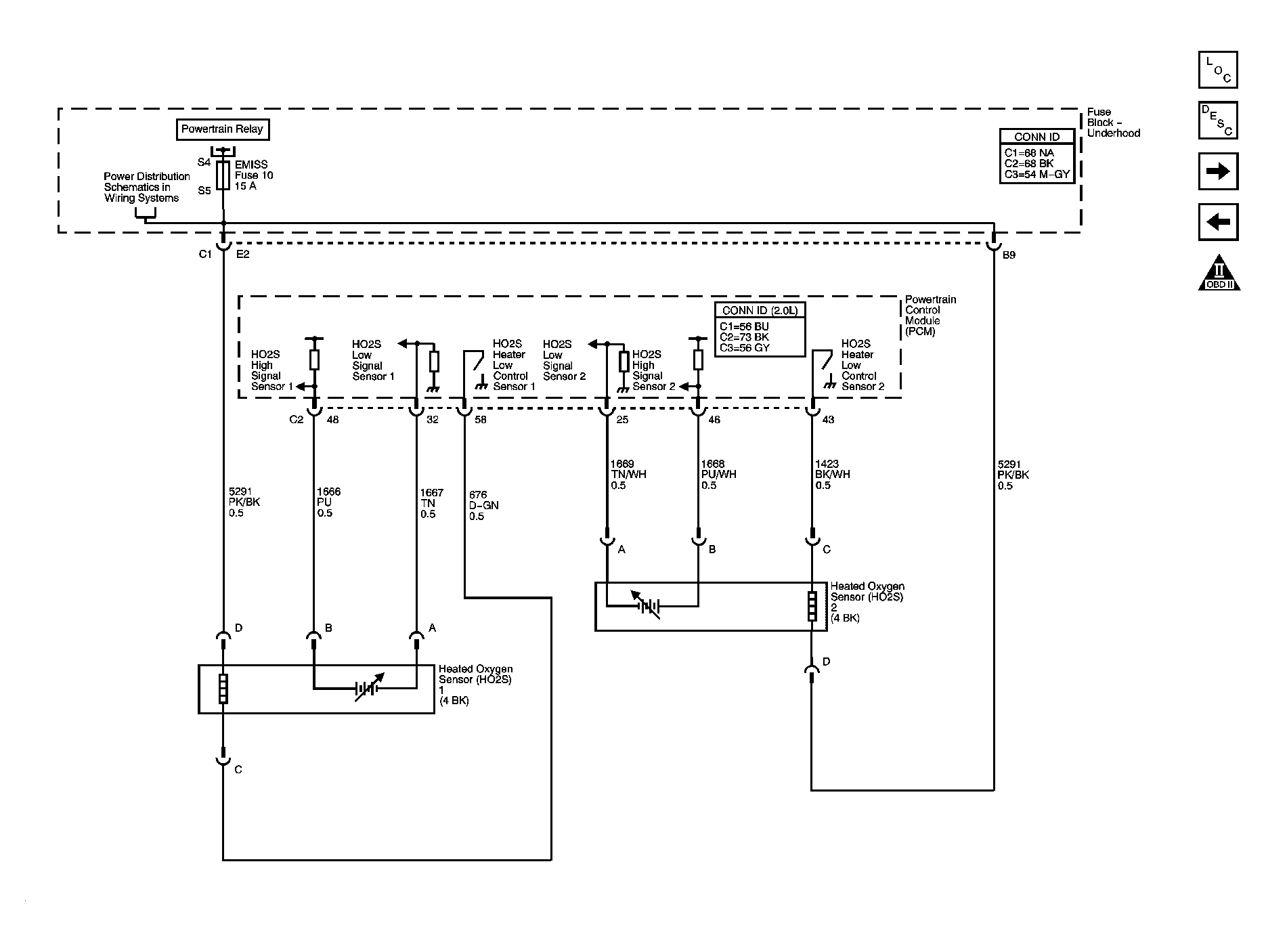

Fig 5: Engine Data Sensors Schematic - HO2S
Courtesy of GENERAL MOTORS CORP.

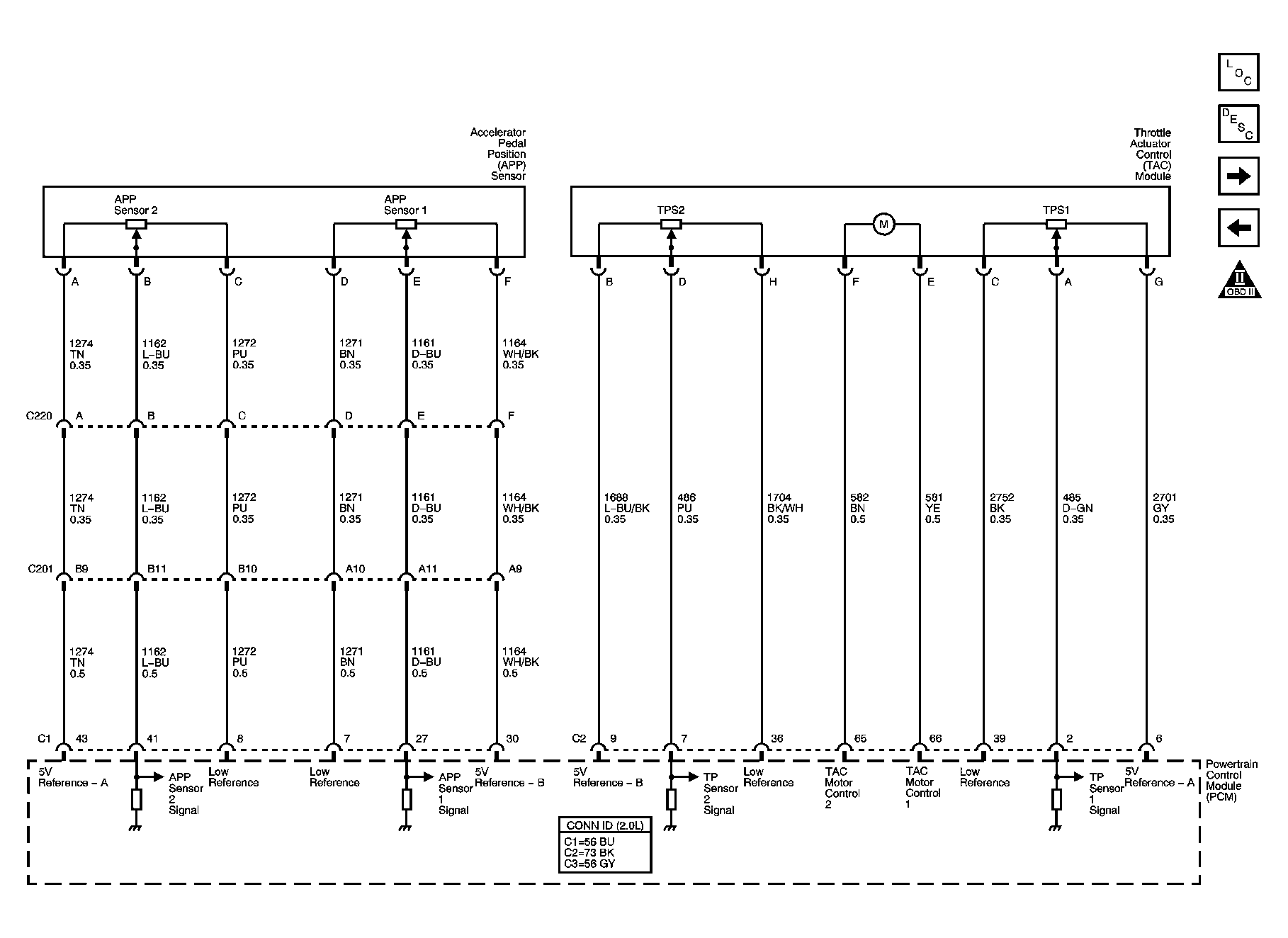

Fig 6: Engine Data Sensors Schematic - APP and TAC
Courtesy of GENERAL MOTORS CORP.

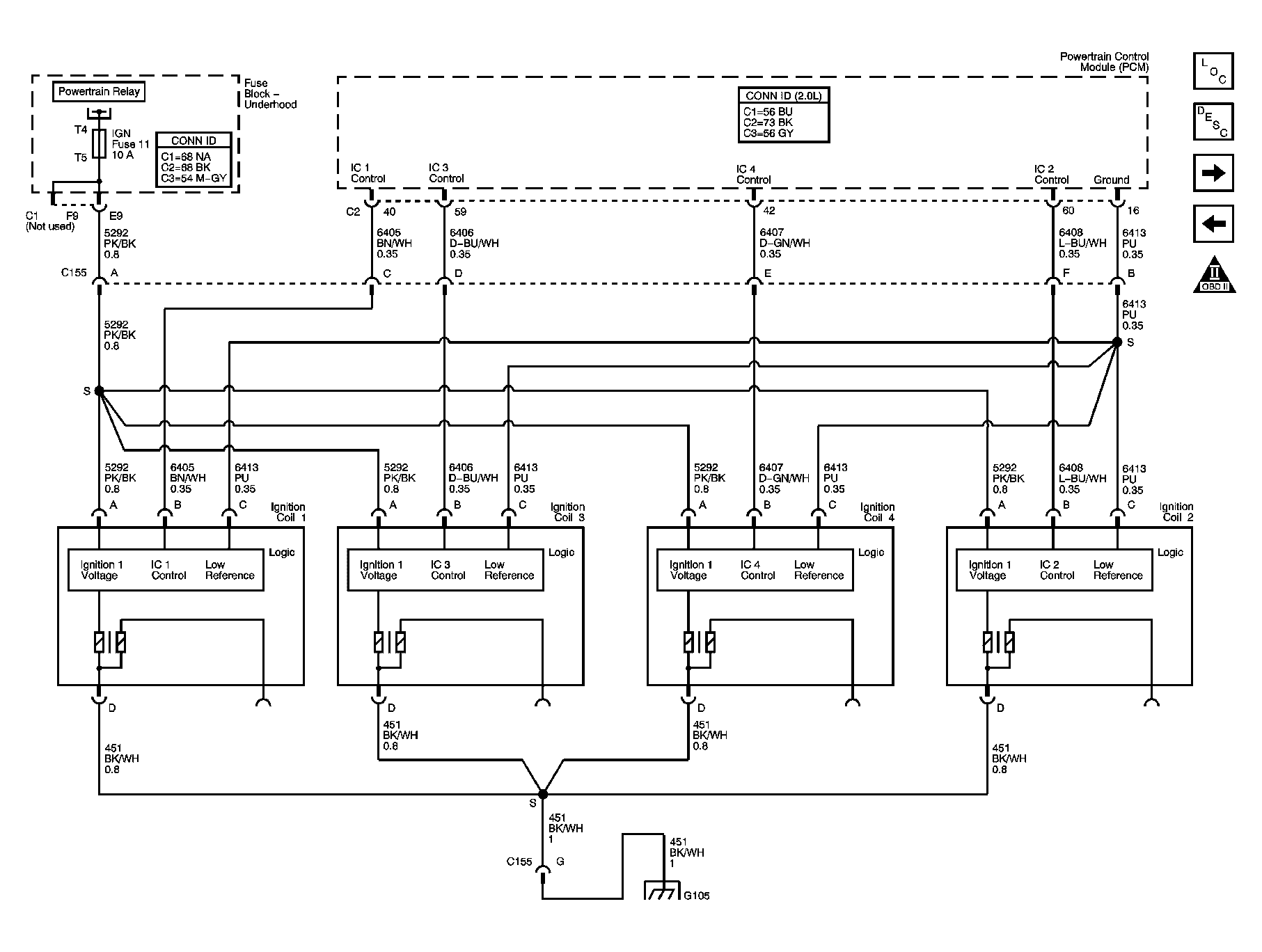

Fig 7: Ignition Controls Schematic
Courtesy of GENERAL MOTORS CORP.

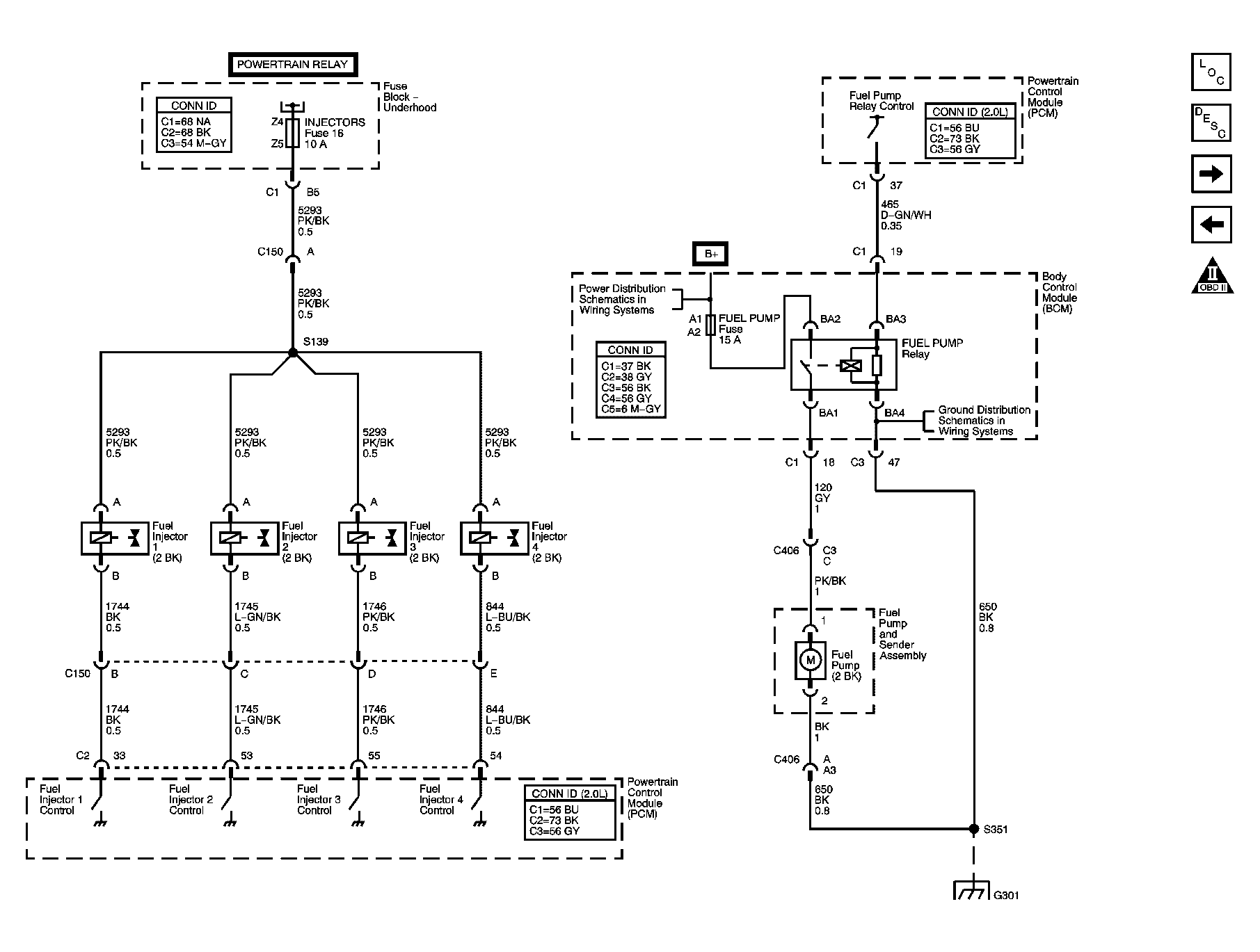

Fig 8: Fuel Delivery Schematic
Courtesy of GENERAL MOTORS CORP.

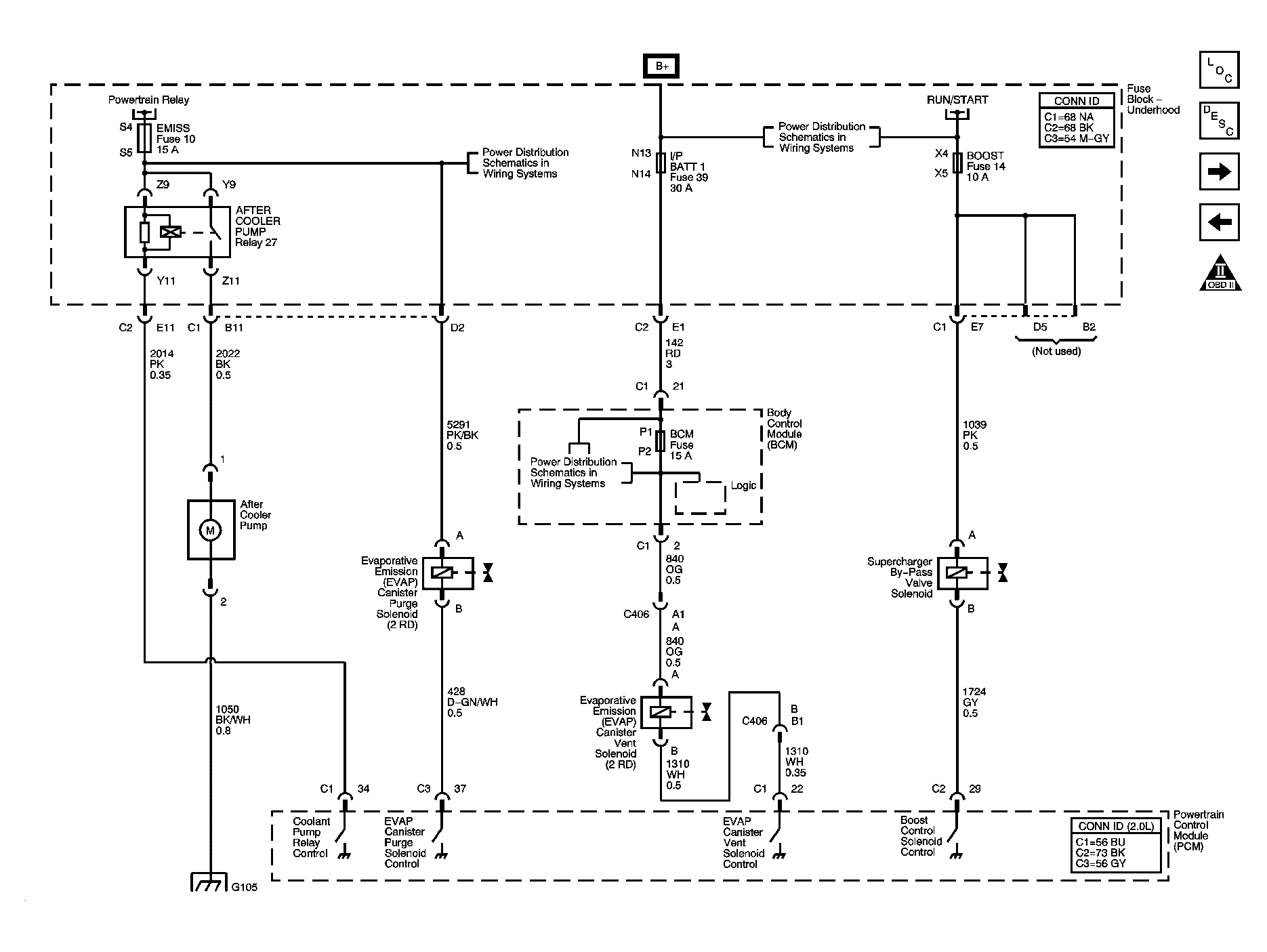

Fig 9: EVAP Controls, After Cooler Pump and Super Charger Boost Control Solenoid Schematic
Courtesy of GENERAL MOTORS CORP.

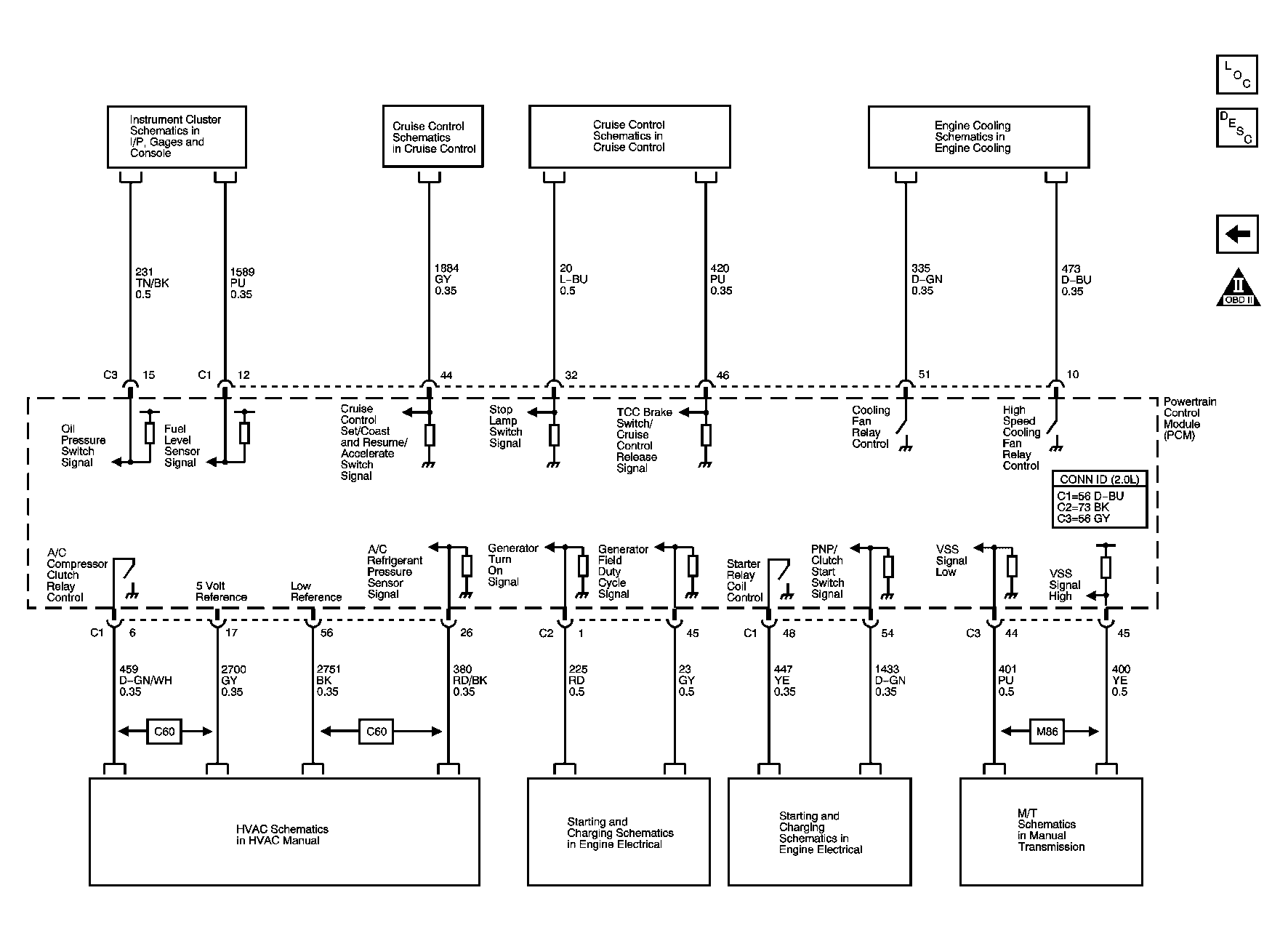

Fig 10: Controlled/Monitored Subsystem Reference Schematic
Courtesy of GENERAL MOTORS CORP.
