Installation Procedure

  1. Install the air cleaner filter into the lower air cleaner housing.

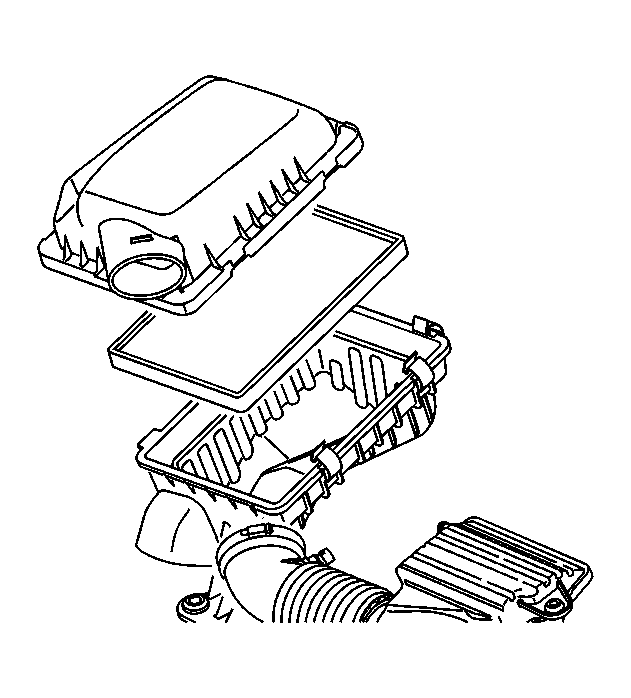

    2. Fig 1: Exploded View Of Air Cleaner Filter
    GM851250Courtesy of GENERAL MOTORS CORP.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
  3. Secure the air cleaner housing cover.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Connect the air cleaner resonator to the air cleaner assembly.

    Tighten:  Tighten the air cleaner intake duct clamp to 5 N.m (44 lb in).

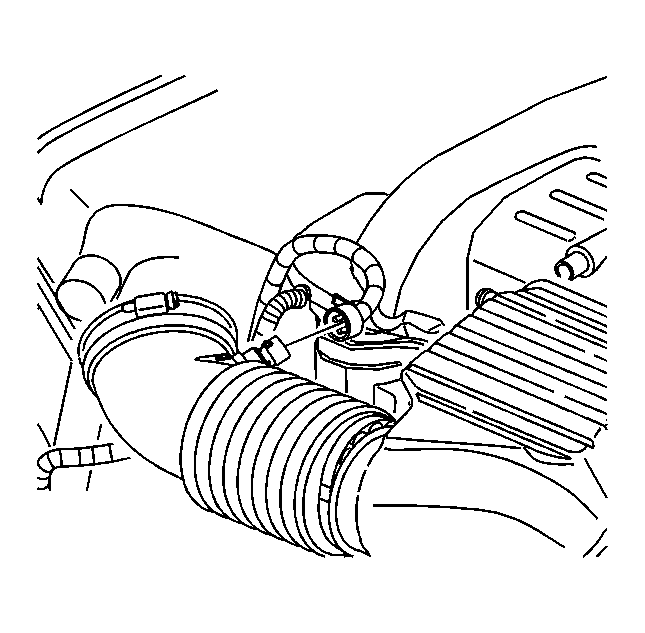

    5. Fig 2: View Of IAT Sensor Harness Connector
    GM851290Courtesy of GENERAL MOTORS CORP.
  5. Connect the IAT sensor harness connector.
