Engine Controls - Introduction
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
Engine Controls Schematics

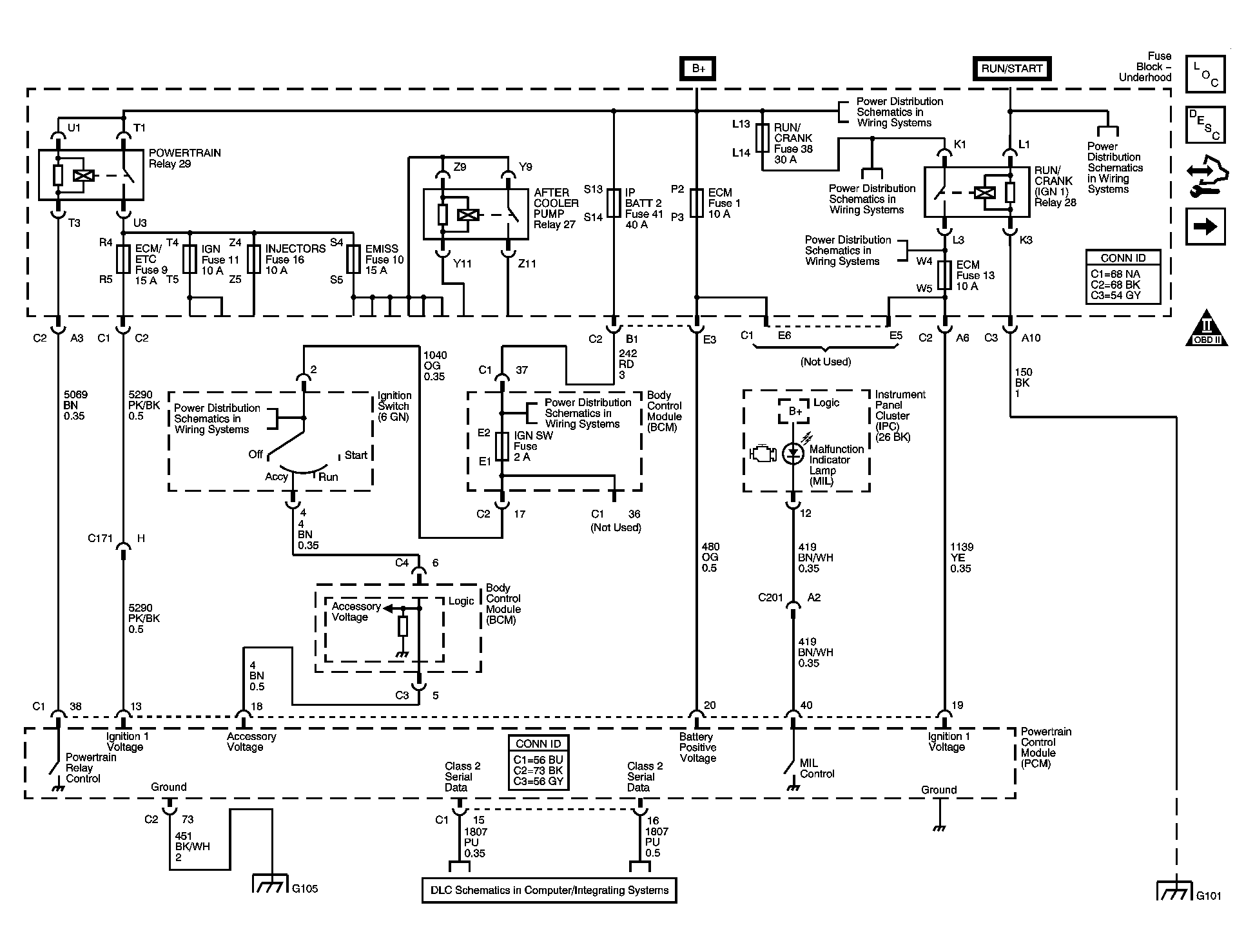

Fig 1: Power, Ground, MIL, and Serial Data Schematics
Courtesy of GENERAL MOTORS CORP.

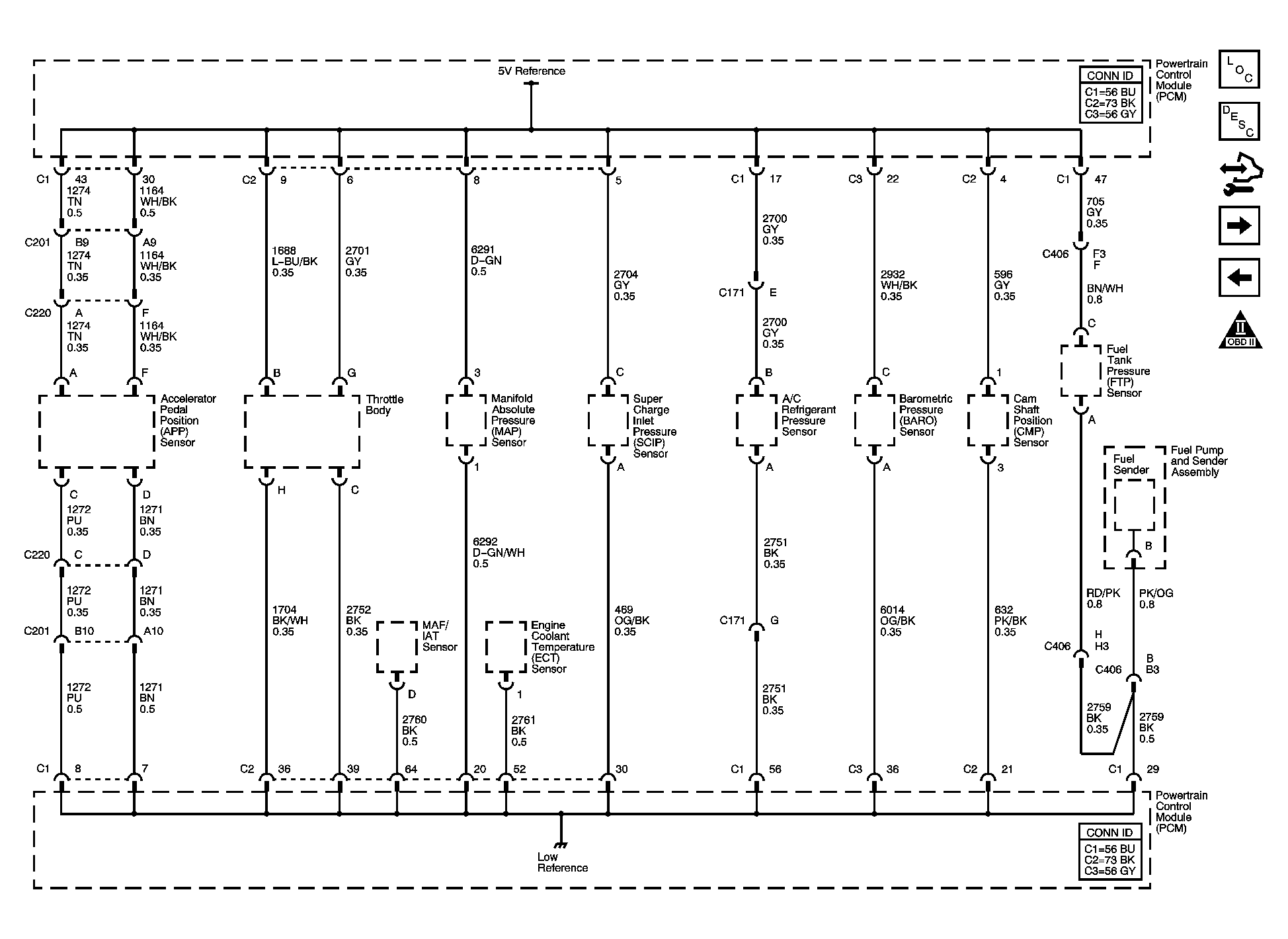

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Busing Schematics
Courtesy of GENERAL MOTORS CORP.

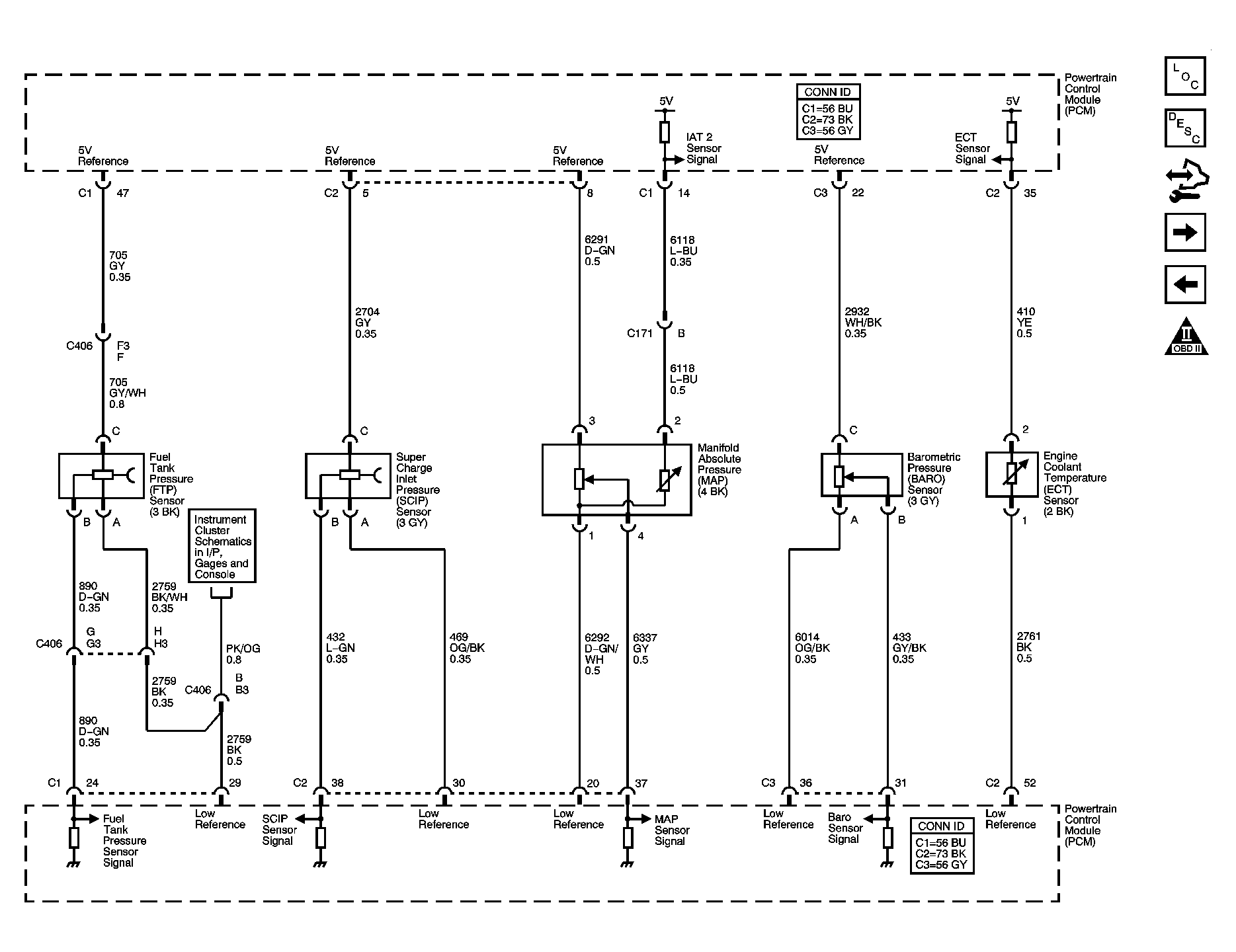

Fig 3: Engine Data Sensors Schematics - Pressure and Temperature
Courtesy of GENERAL MOTORS CORP.

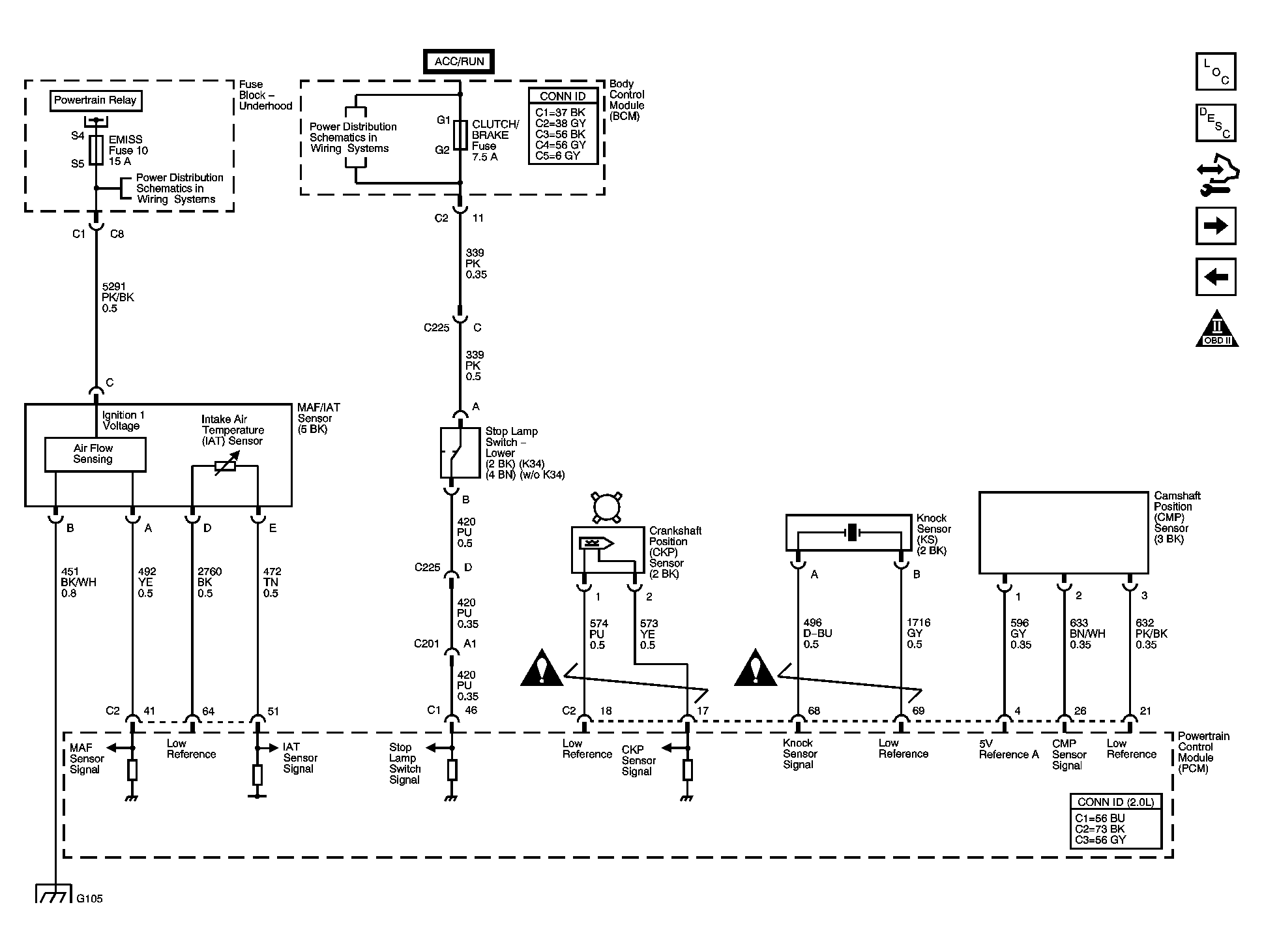

Fig 4: Engine Data Sensors - MAF/IAT, CKP, KS and Stop Lamp Switch Schematics - Lower
Courtesy of GENERAL MOTORS CORP.

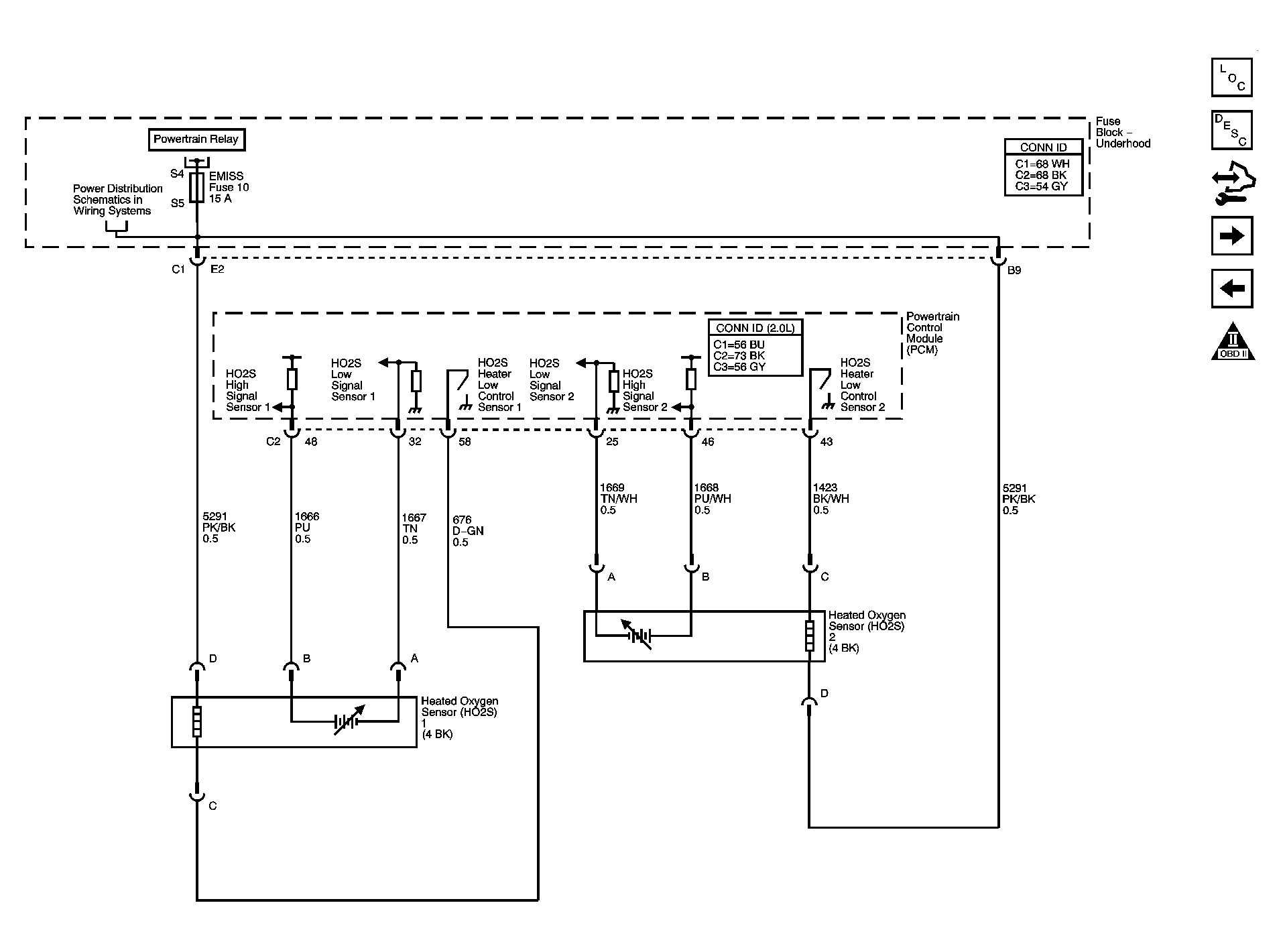

Fig 5: Engine Data Sensors Schematics - HO2S
Courtesy of GENERAL MOTORS CORP.

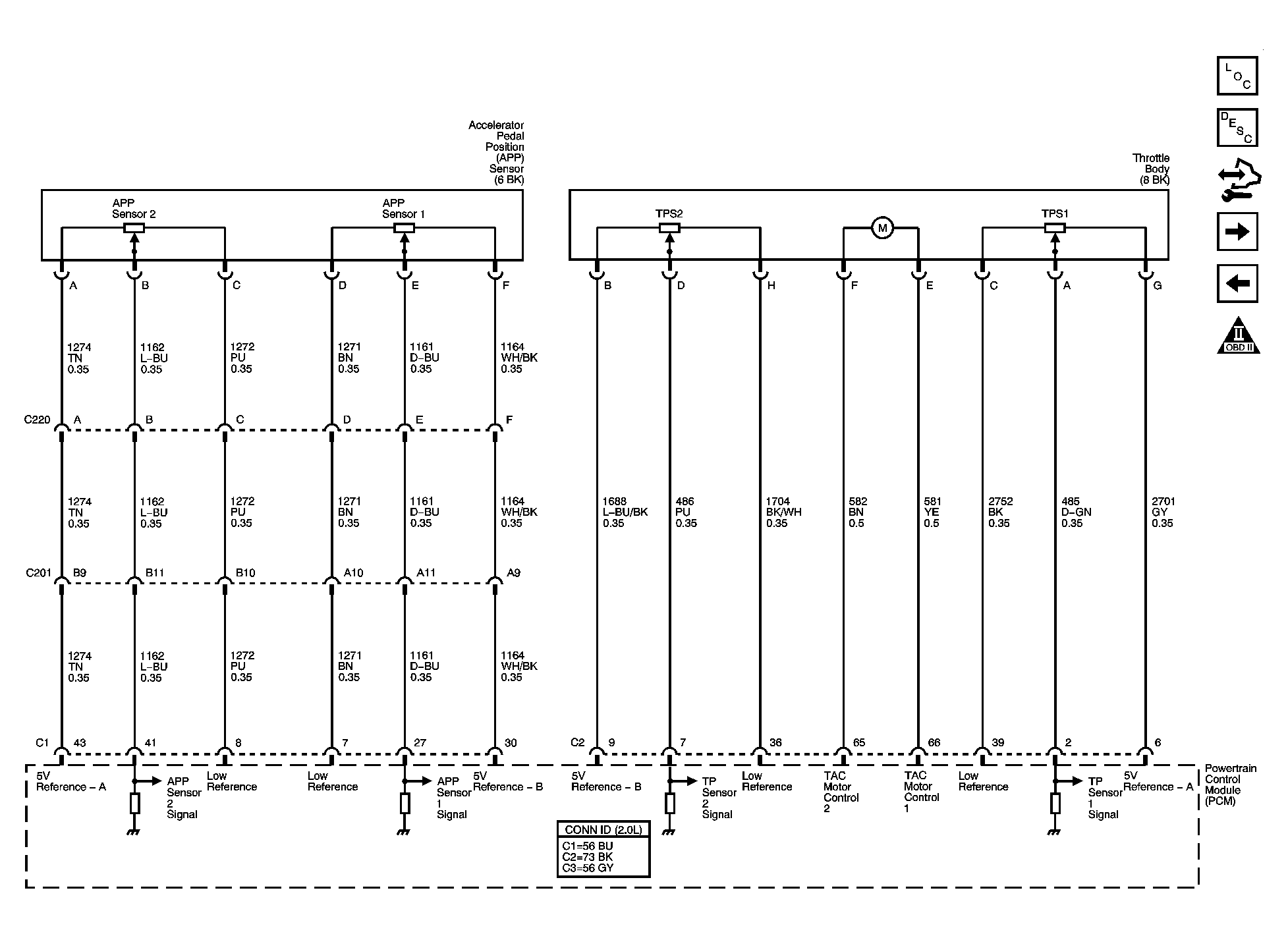

Fig 6: Engine Data Sensors Schematics - APP and TAC
Courtesy of GENERAL MOTORS CORP.

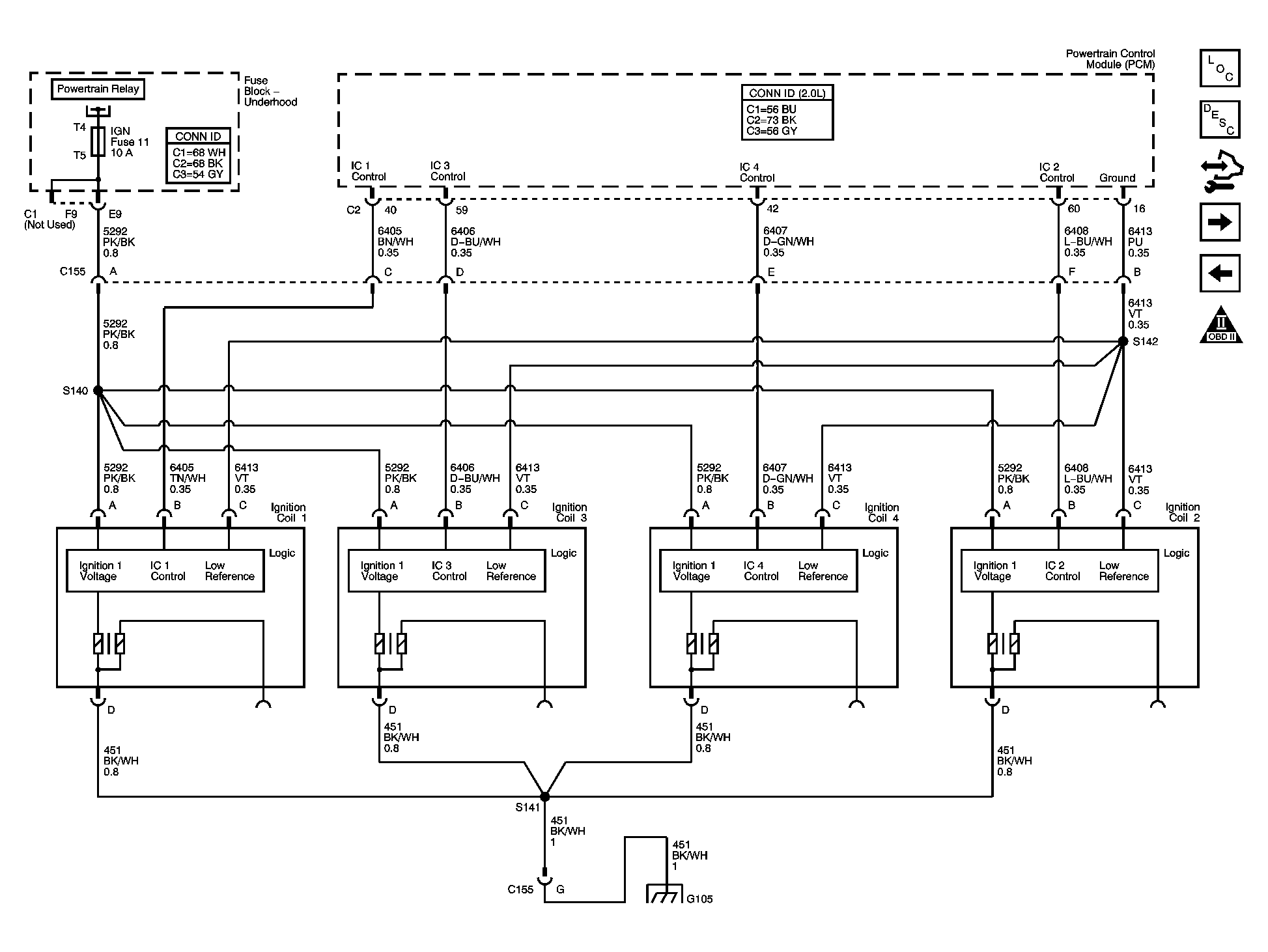

Fig 7: Ignition Controls Schematics
Courtesy of GENERAL MOTORS CORP.
Fig 8: Fuel Controls Schematics
Courtesy of GENERAL MOTORS CORP.

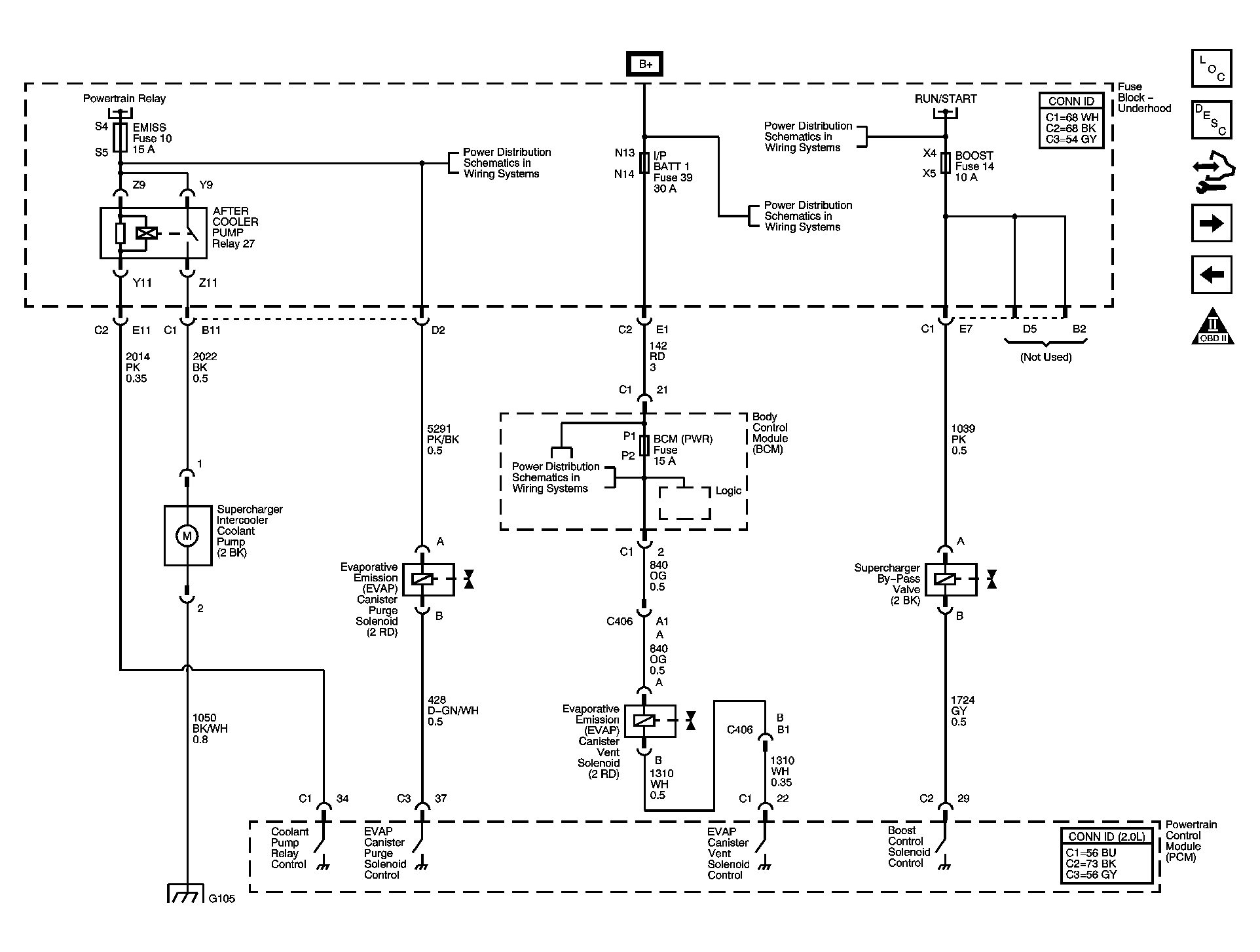

Fig 9: EVAP Controls, After Cooler Pump, and Supercharger By-Pass Valve Solenoid Schematics
Courtesy of GENERAL MOTORS CORP.

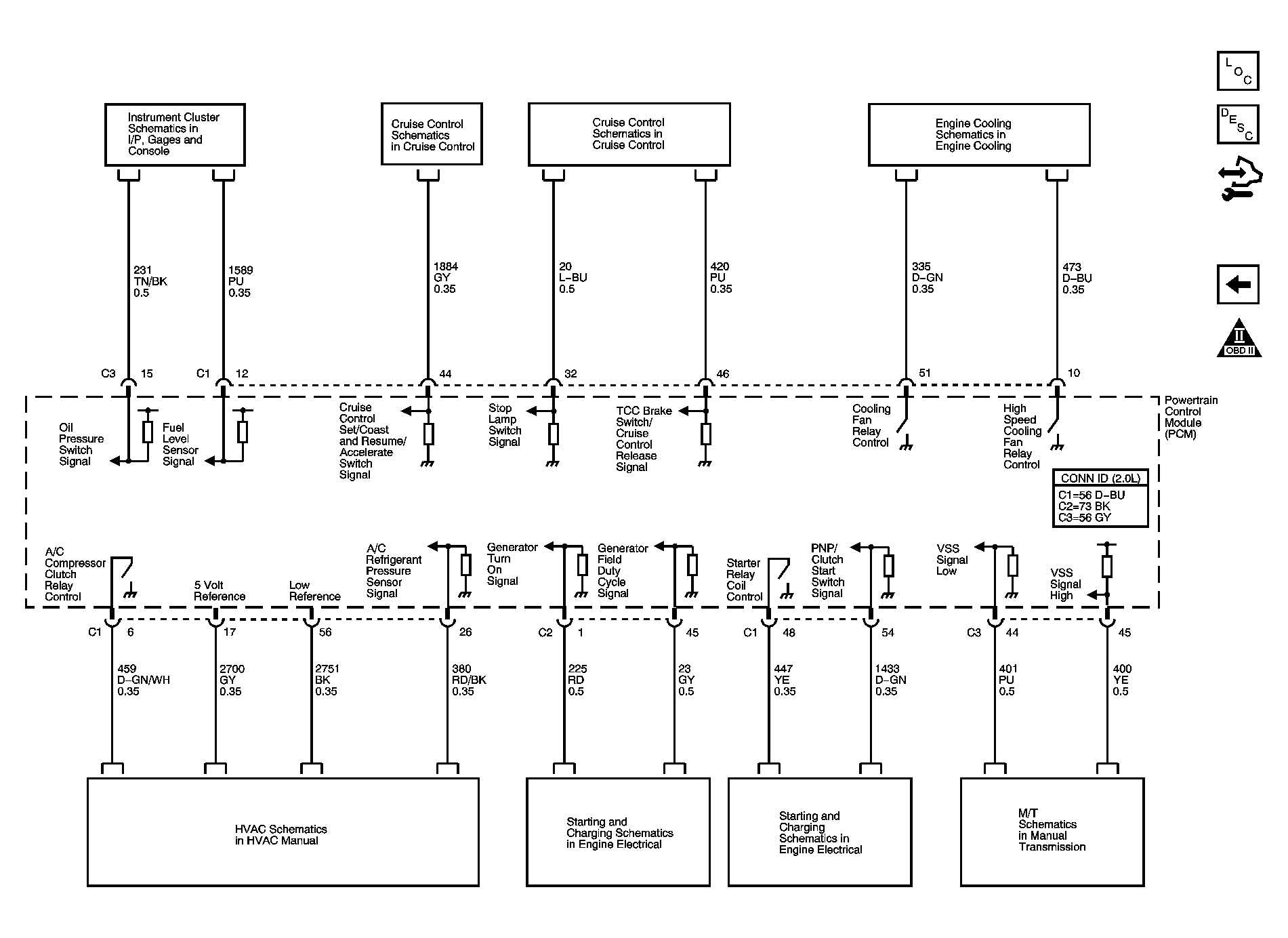

Fig 10: Controlled/Monitored Subsystem Reference Schematics
Courtesy of GENERAL MOTORS CORP.
