DTC B2707: Notes

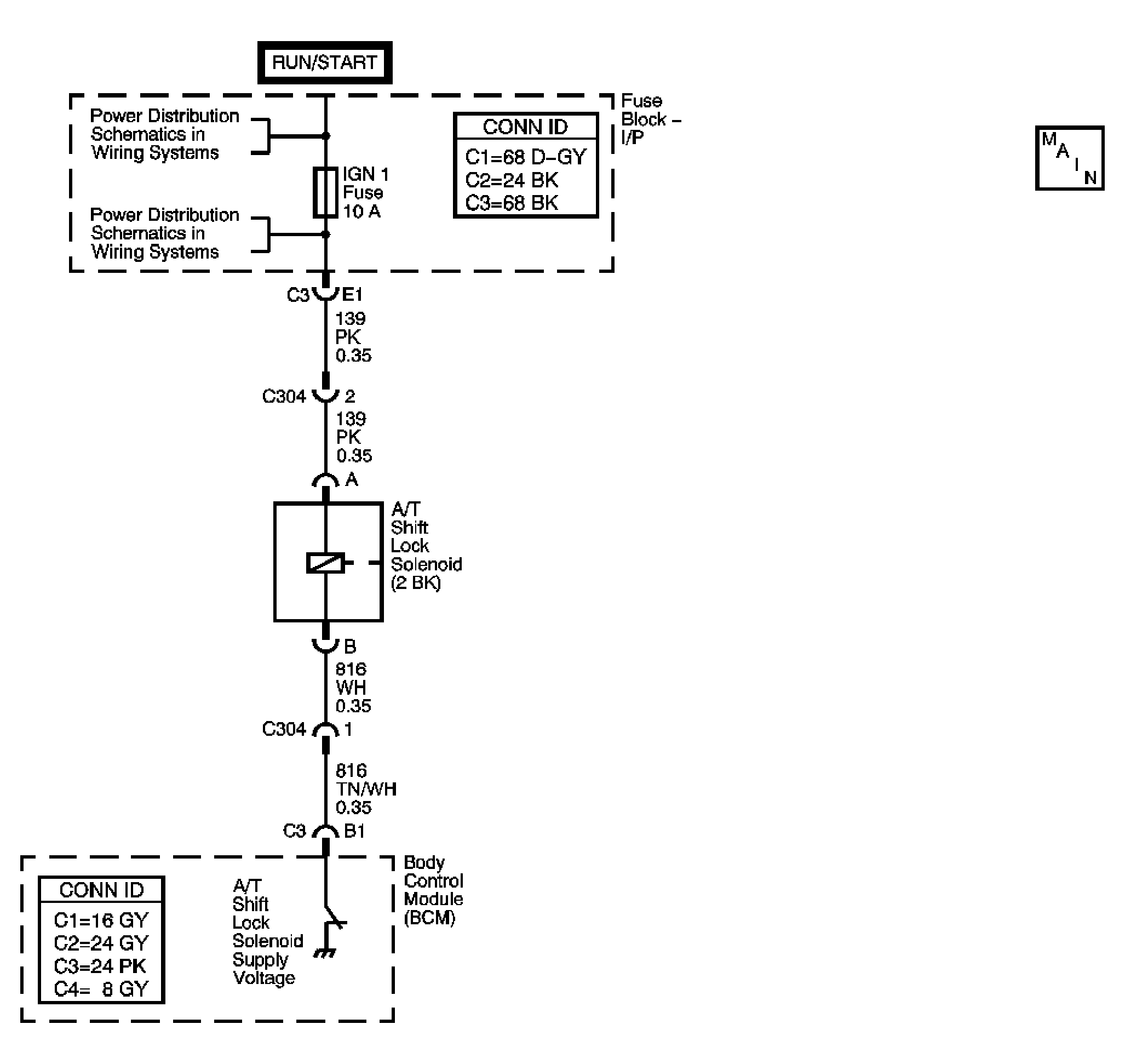

Fig 1: Automatic Transmission Shift Lock Control Solenoid Circuit

GM1477402

Courtesy of GENERAL MOTORS CORP.
