Home >> Scion >> 2004 >> xA Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Injector ASSY >> Components

Fuel Injector ASSY: Components

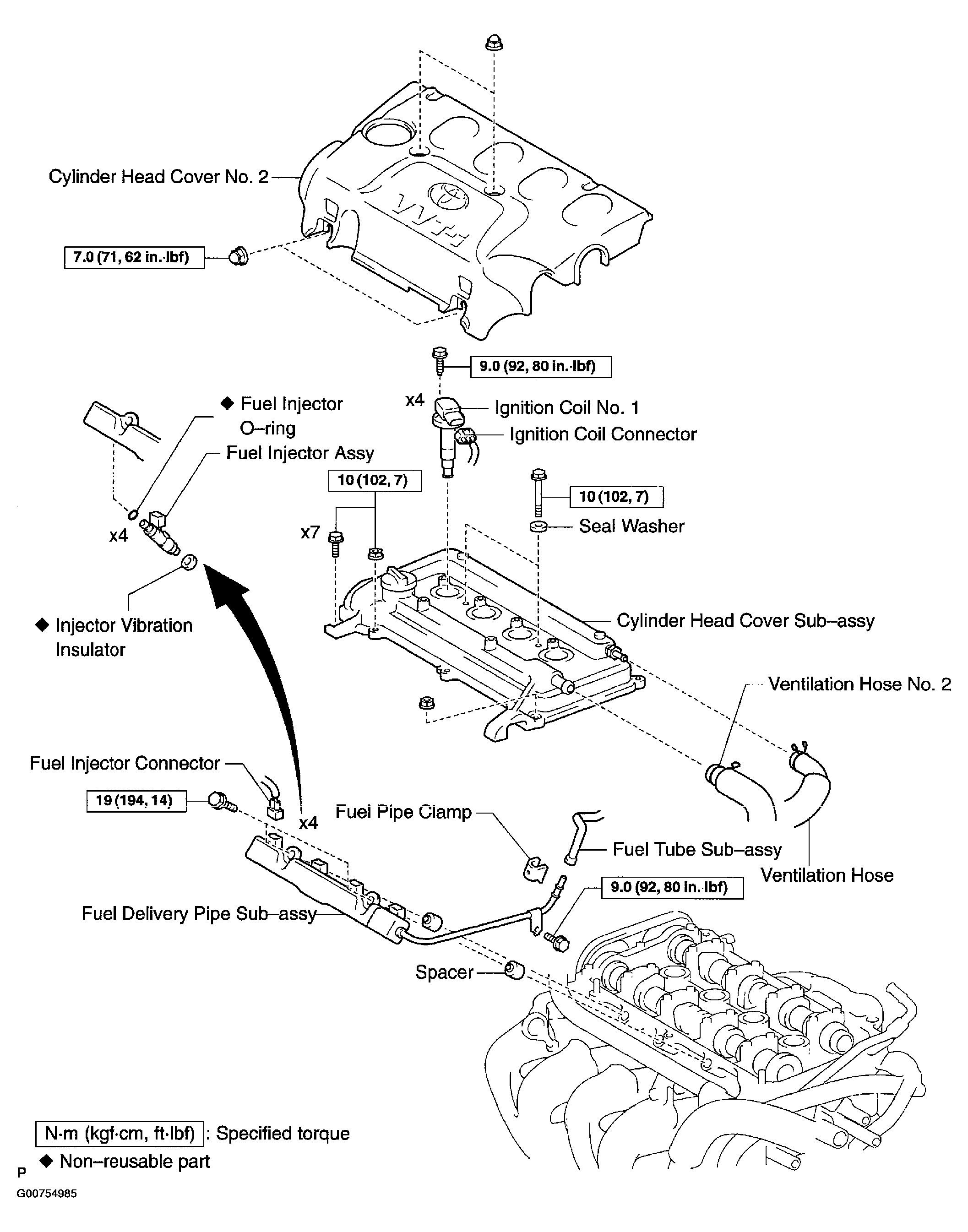

Fig 1: Dissembled View Of Fuel Injector Assembly

G00754985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
