Fuel Pump ASSY: Components

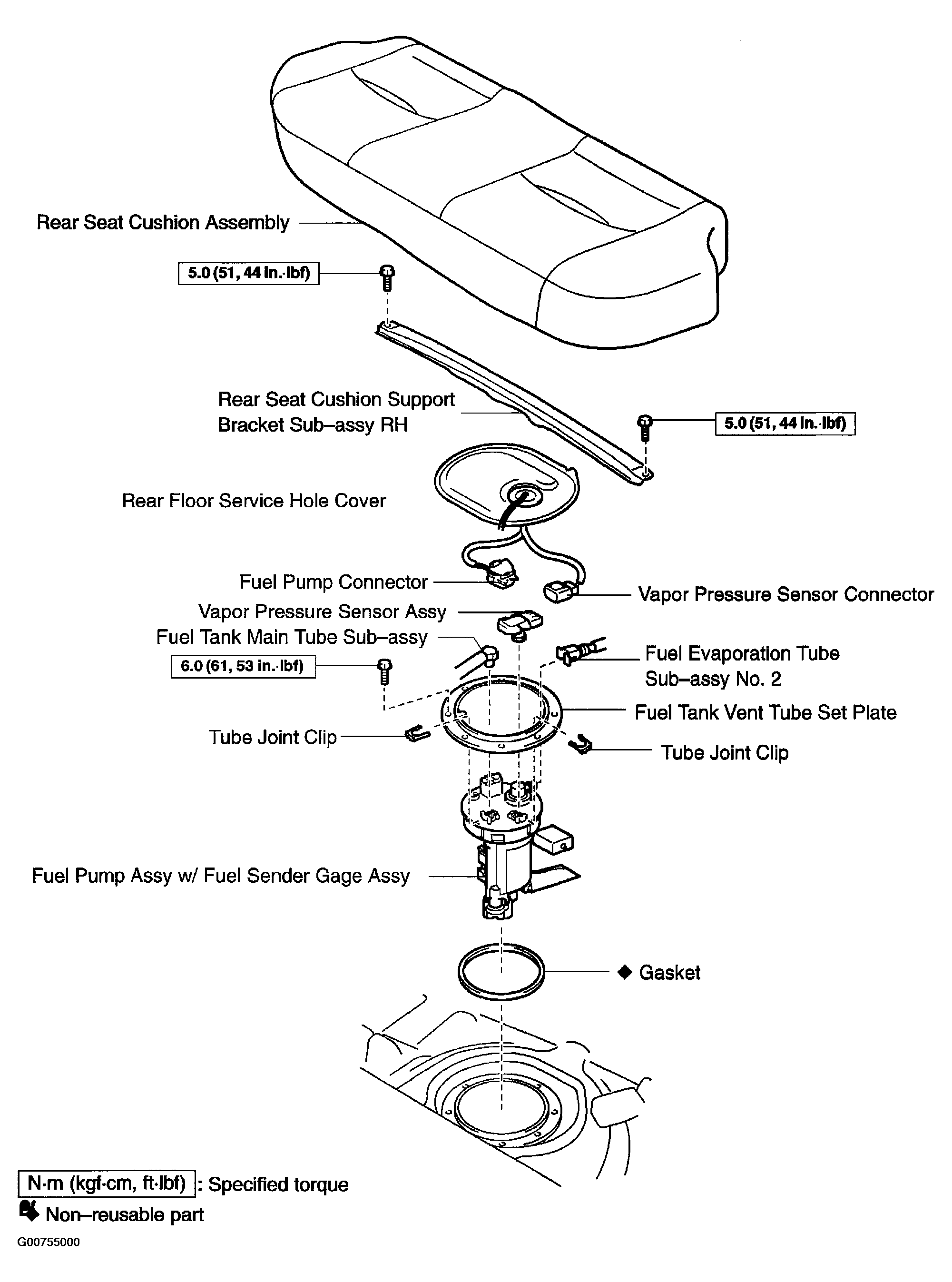

Fig 1: Disassembled View Of Fuel Pump Assembly (1 Of 2)
G00755000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

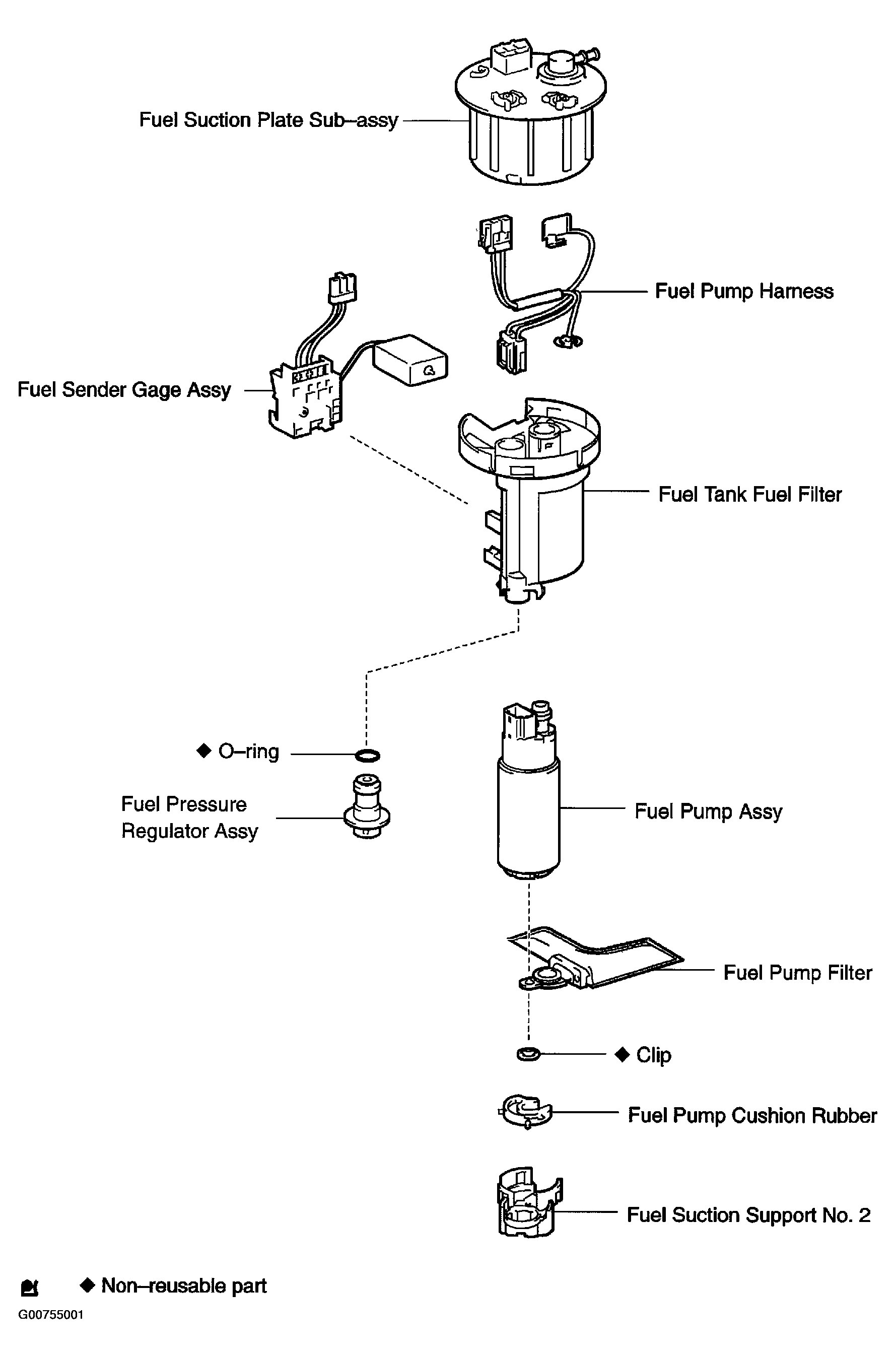

Fig 2: Disassembled View Of Fuel Pump Assembly (2 Of 2)
G00755001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
