Fuel Tank ASSY
>>
Components
Fuel Tank ASSY: Components

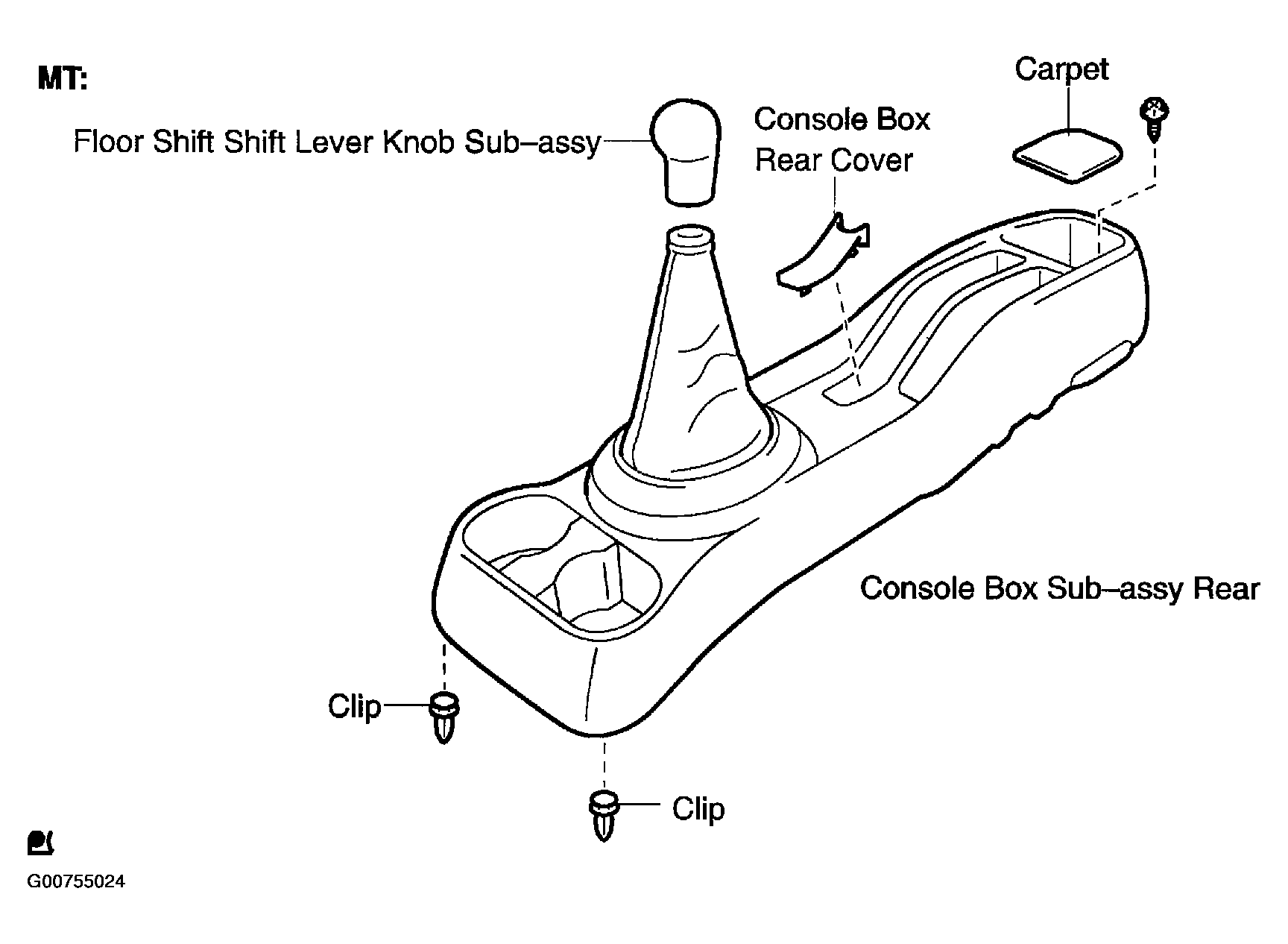

Fig 1: Removing Console Assembly Components - MT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

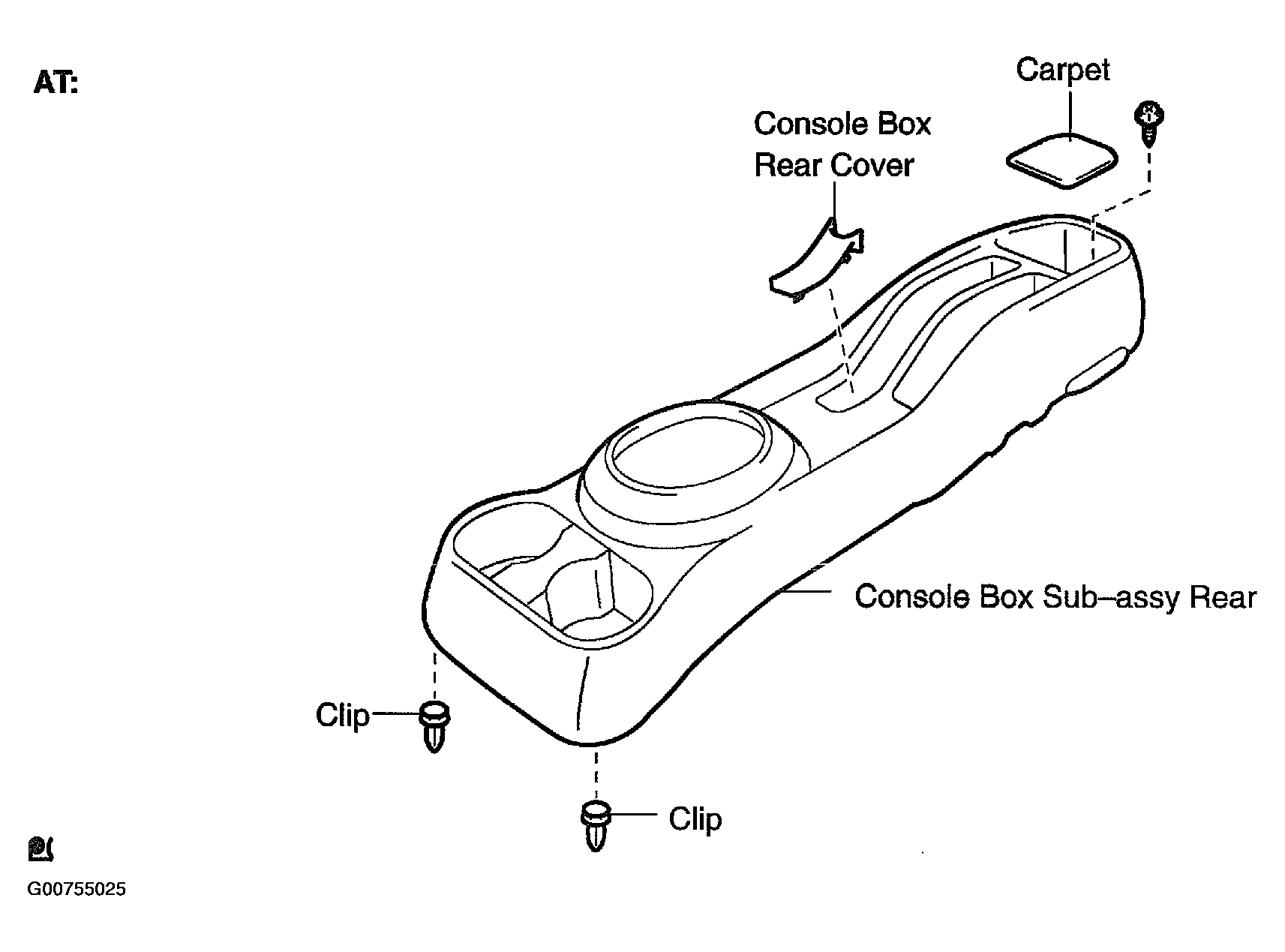

Fig 2: Removing Console Assembly Components - AT
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

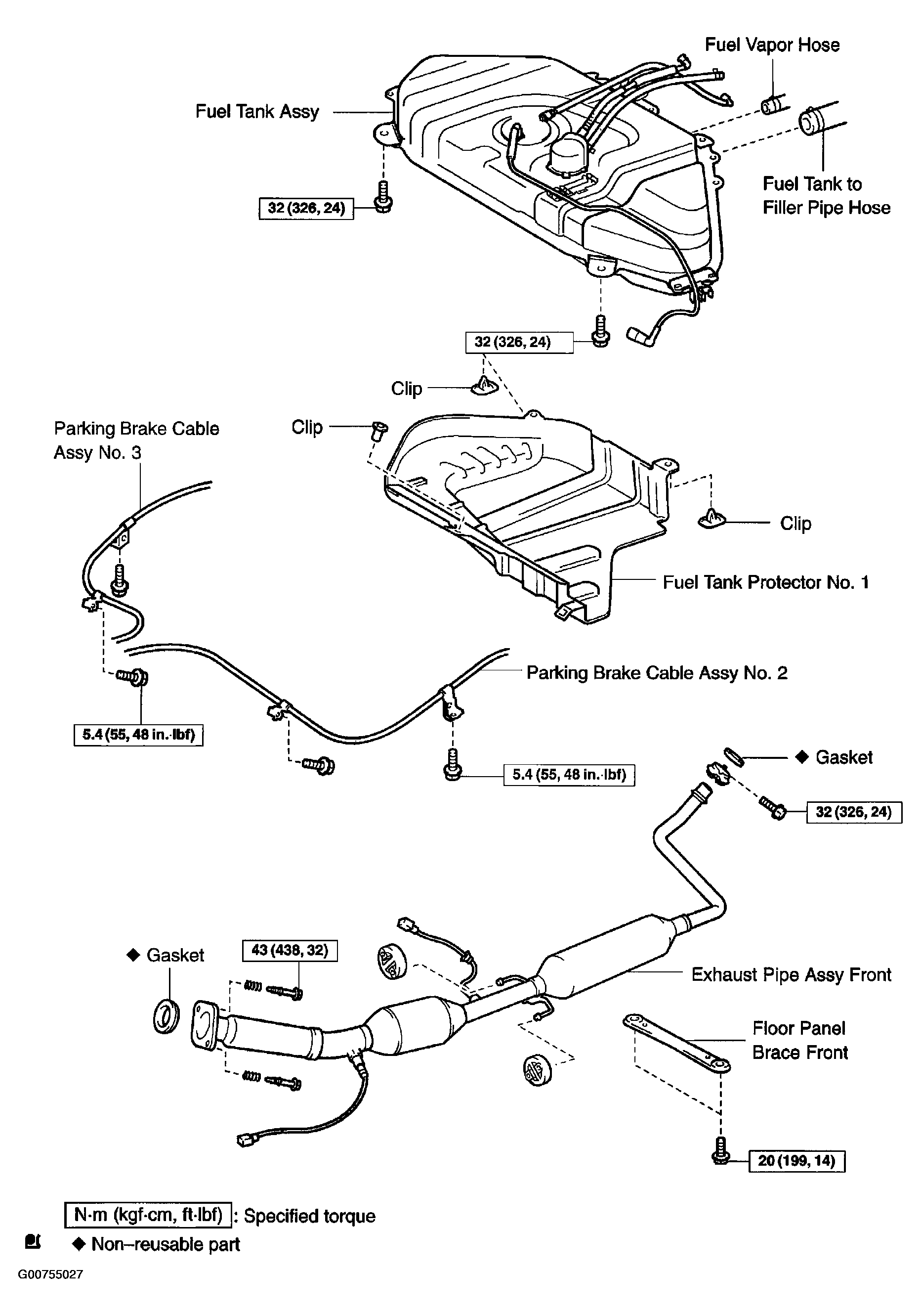

Fig 3: Locating Fuel Tank Assembly Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

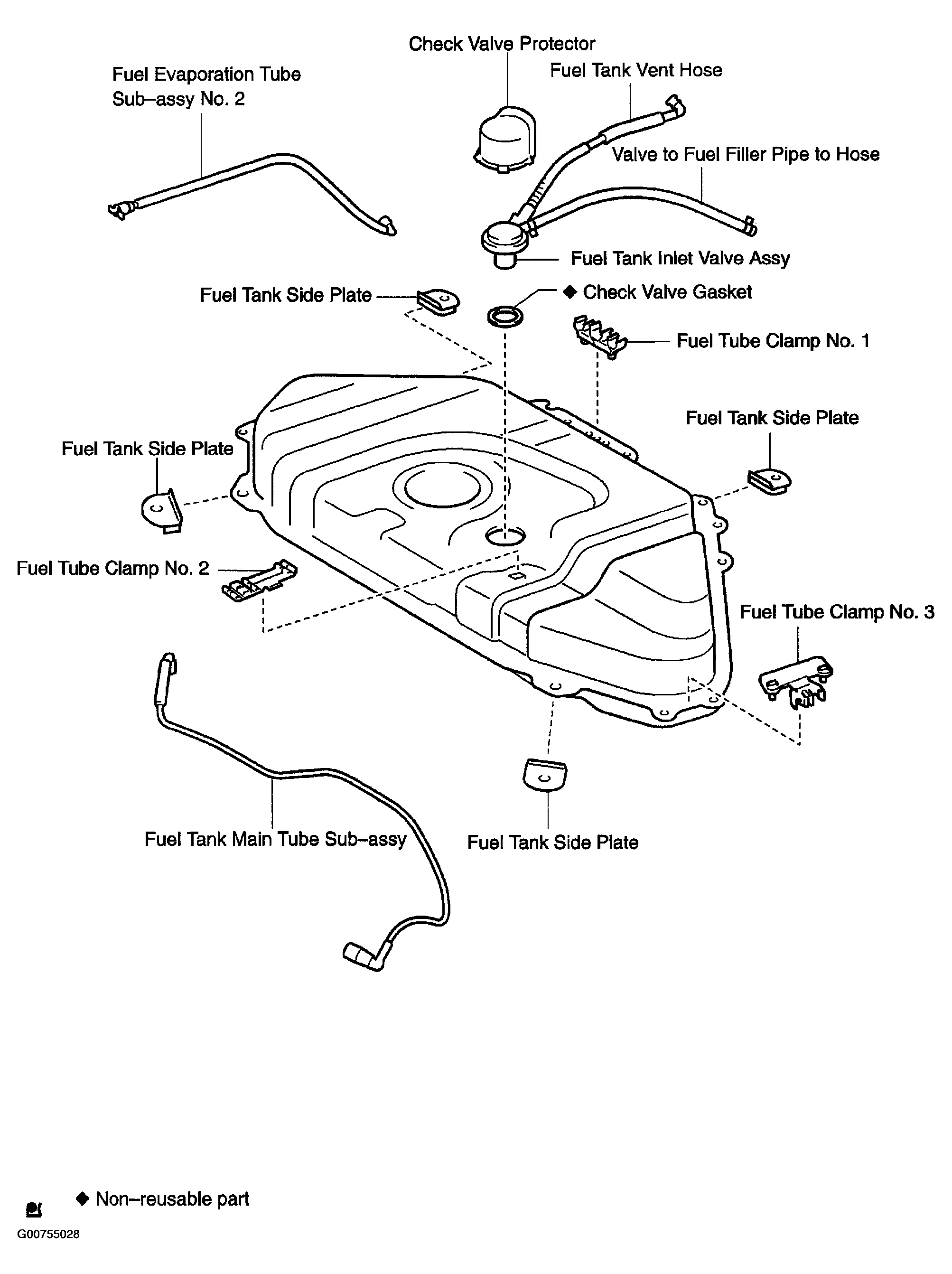

Fig 4: Locating Fuel Tank Assembly Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

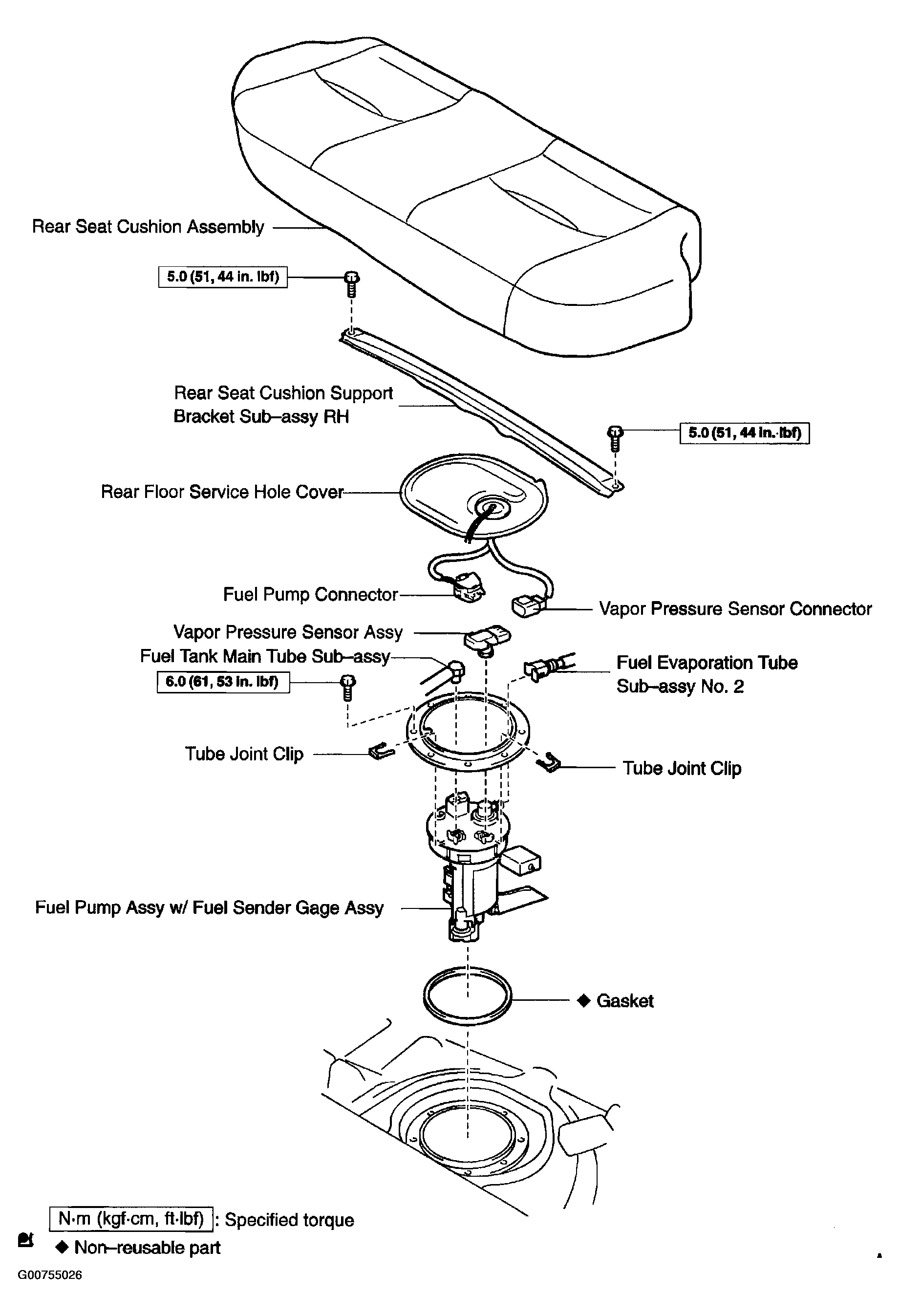

Fig 5: Locating Fuel Tank Assembly Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
