Home >> Scion >> 2004 >> xB Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> Fuel Injector ASSY >> Components

Fuel Injector ASSY: Components

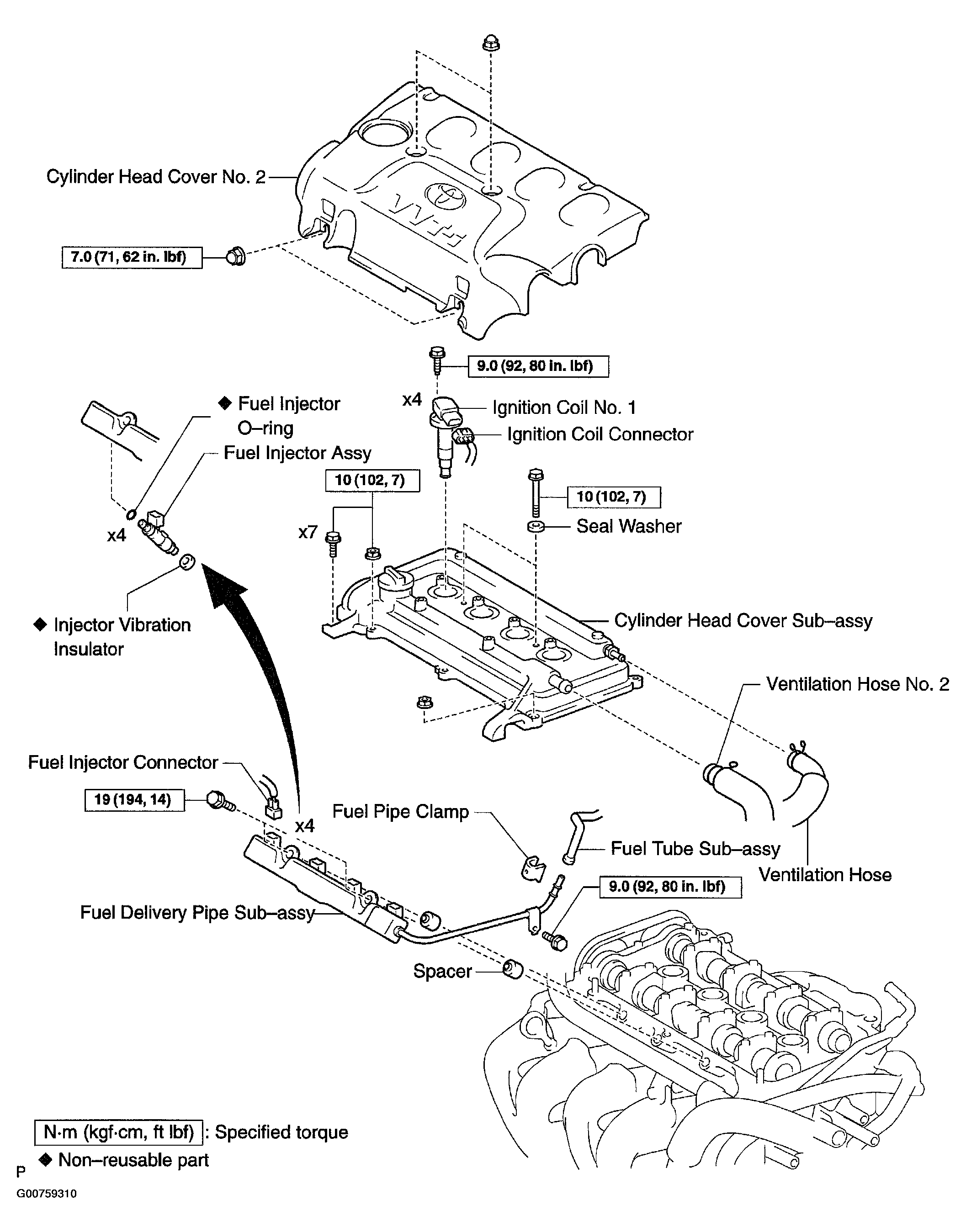

Fig 1: Fuel Injector Assy Replacement Components With Torque Specifications

G00759310

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
