Emission Control System: Location

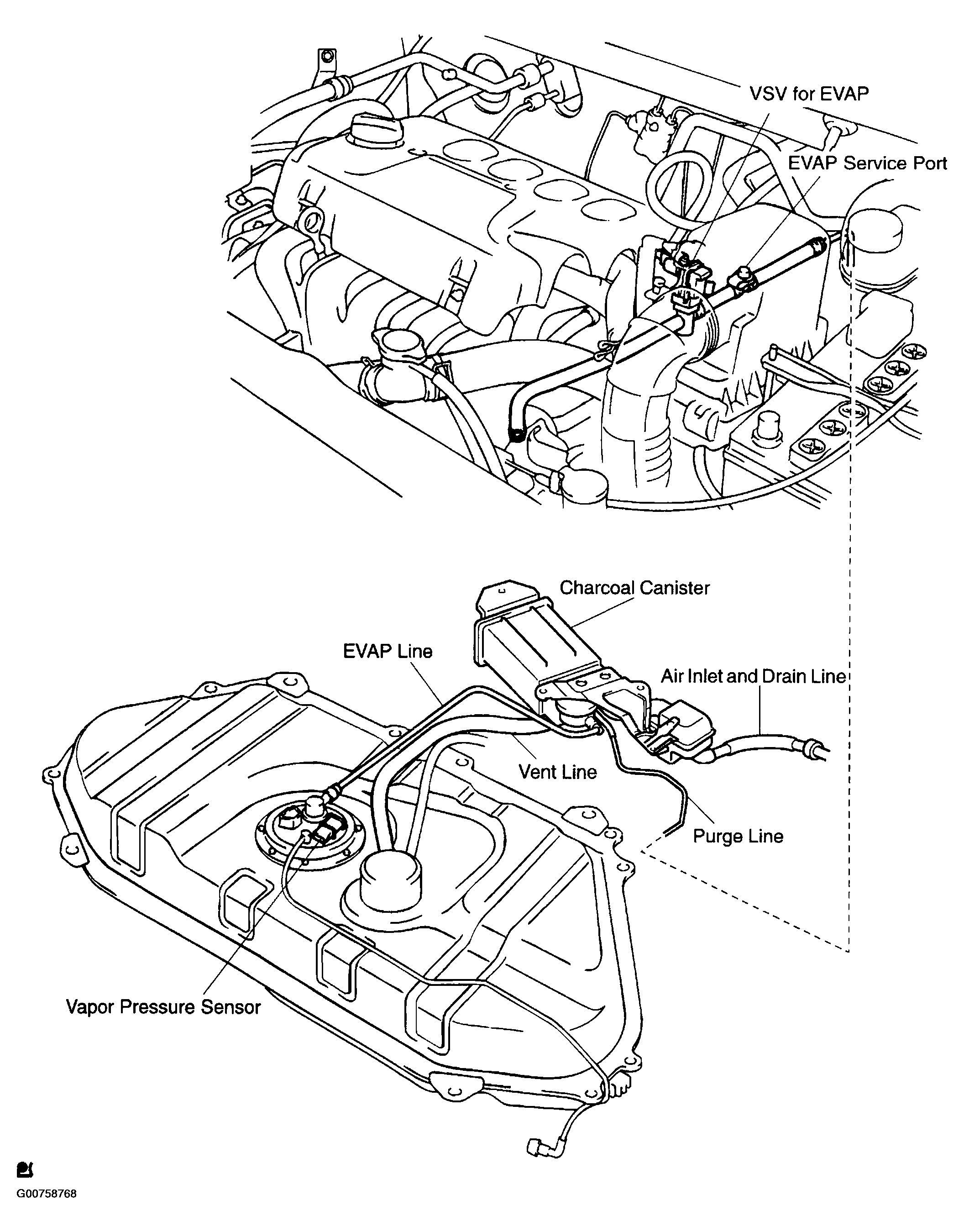

Fig 1: Locating Emission Control System Components
G00758768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

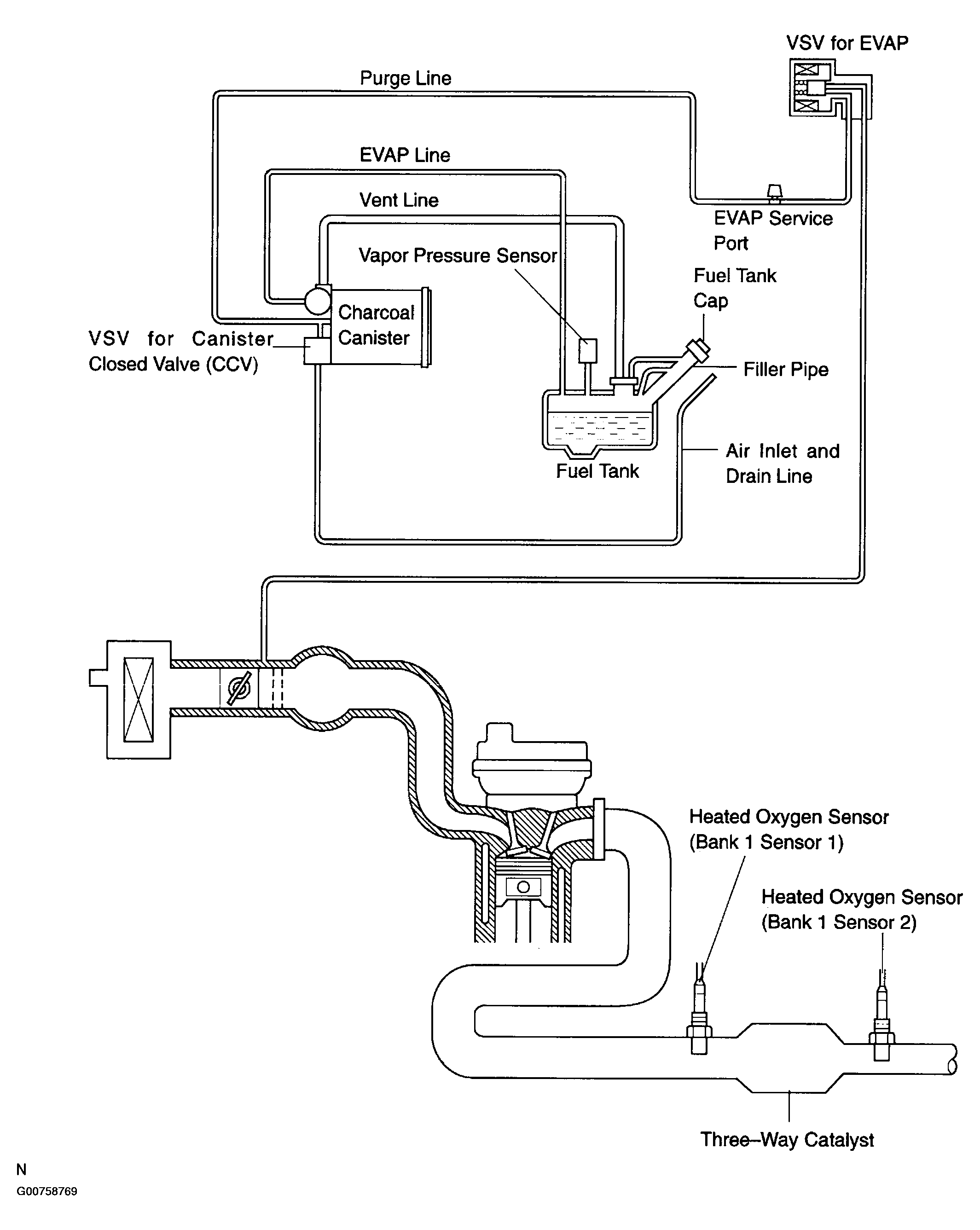

Fig 2: Emission Control System Line Diagram
G00758769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
