Knock Sensor
>>
Components
Knock Sensor: Components

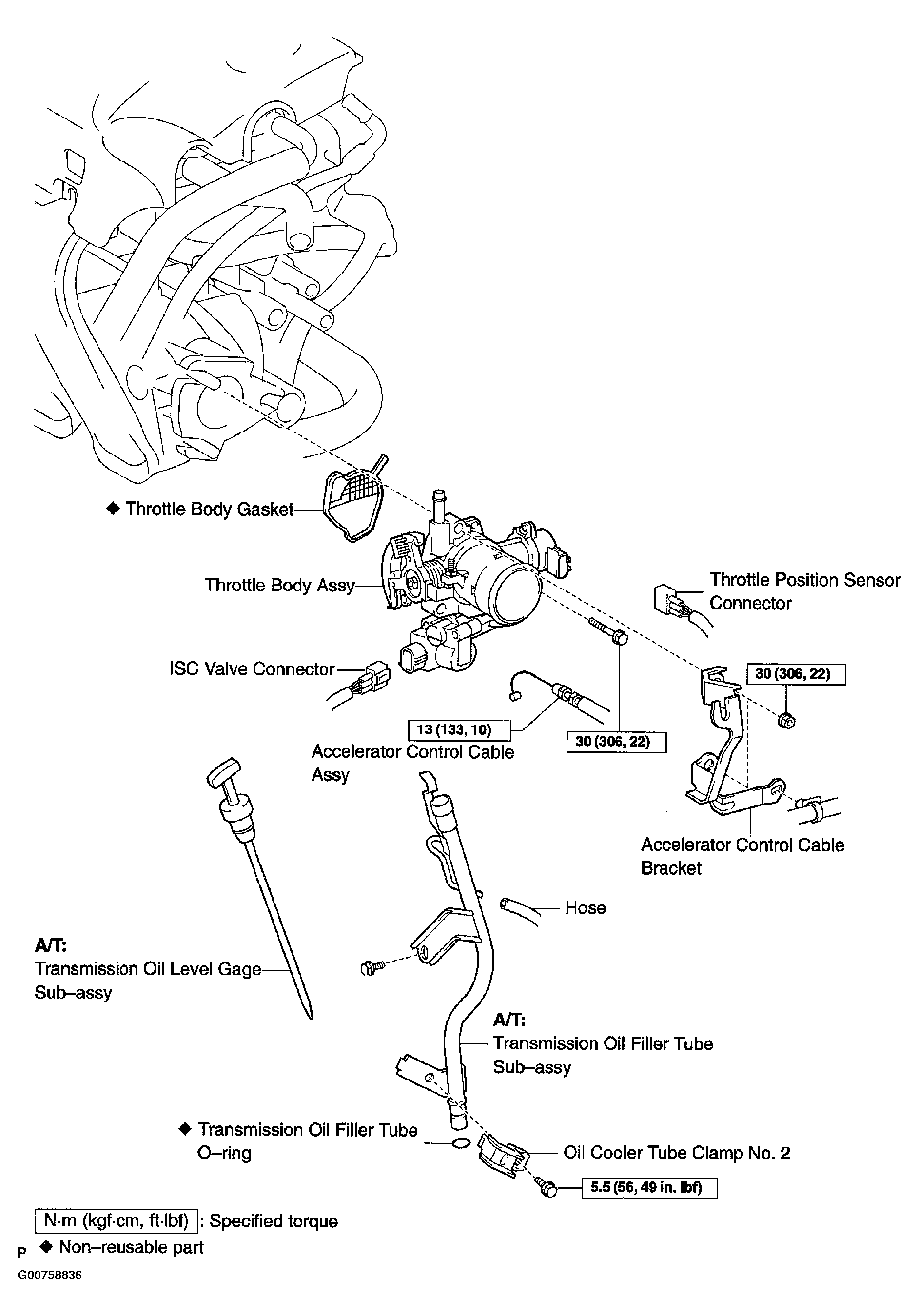

Fig 1: Exploded View Of Knock Sensor Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

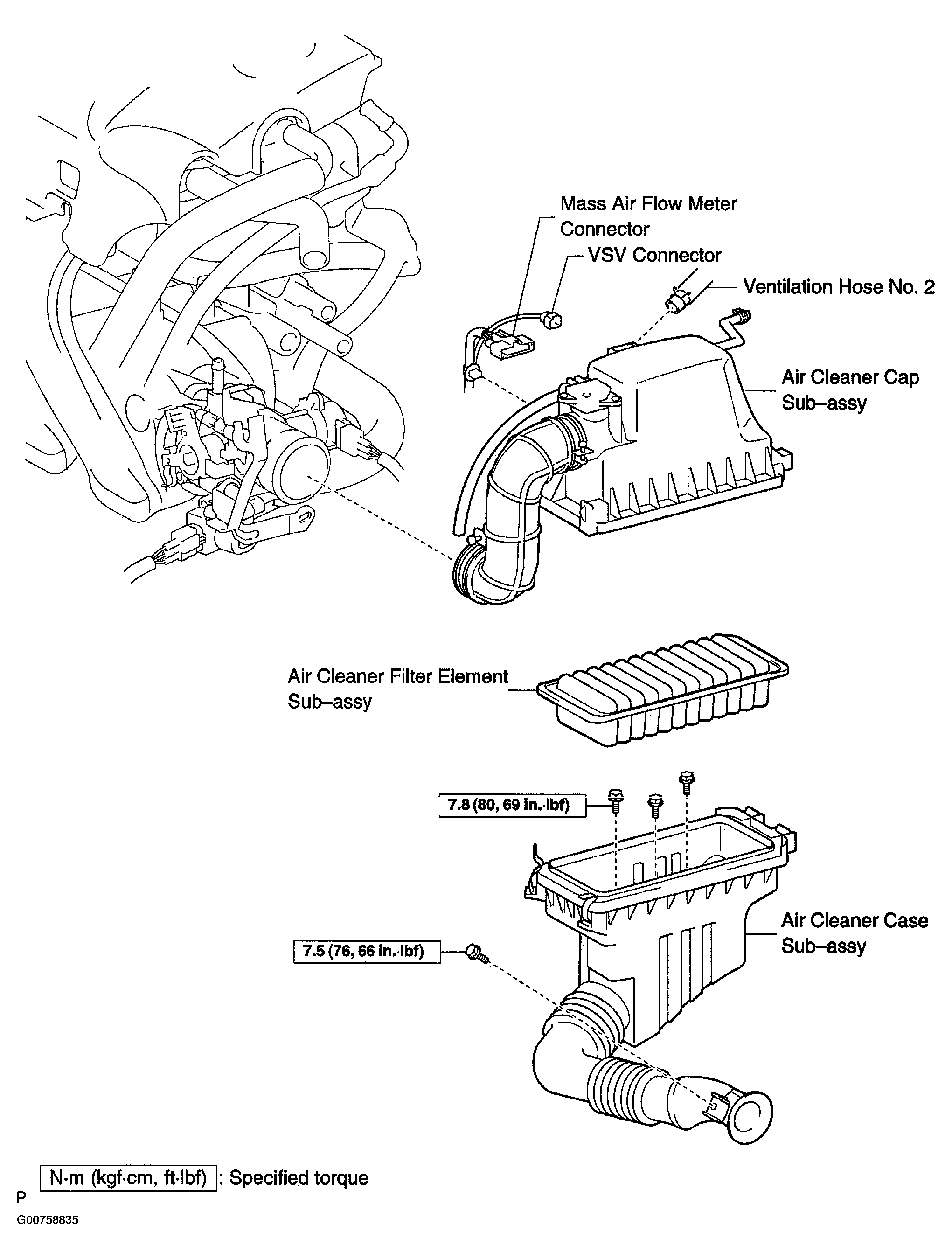

Fig 2: Exploded View Of Knock Sensor Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

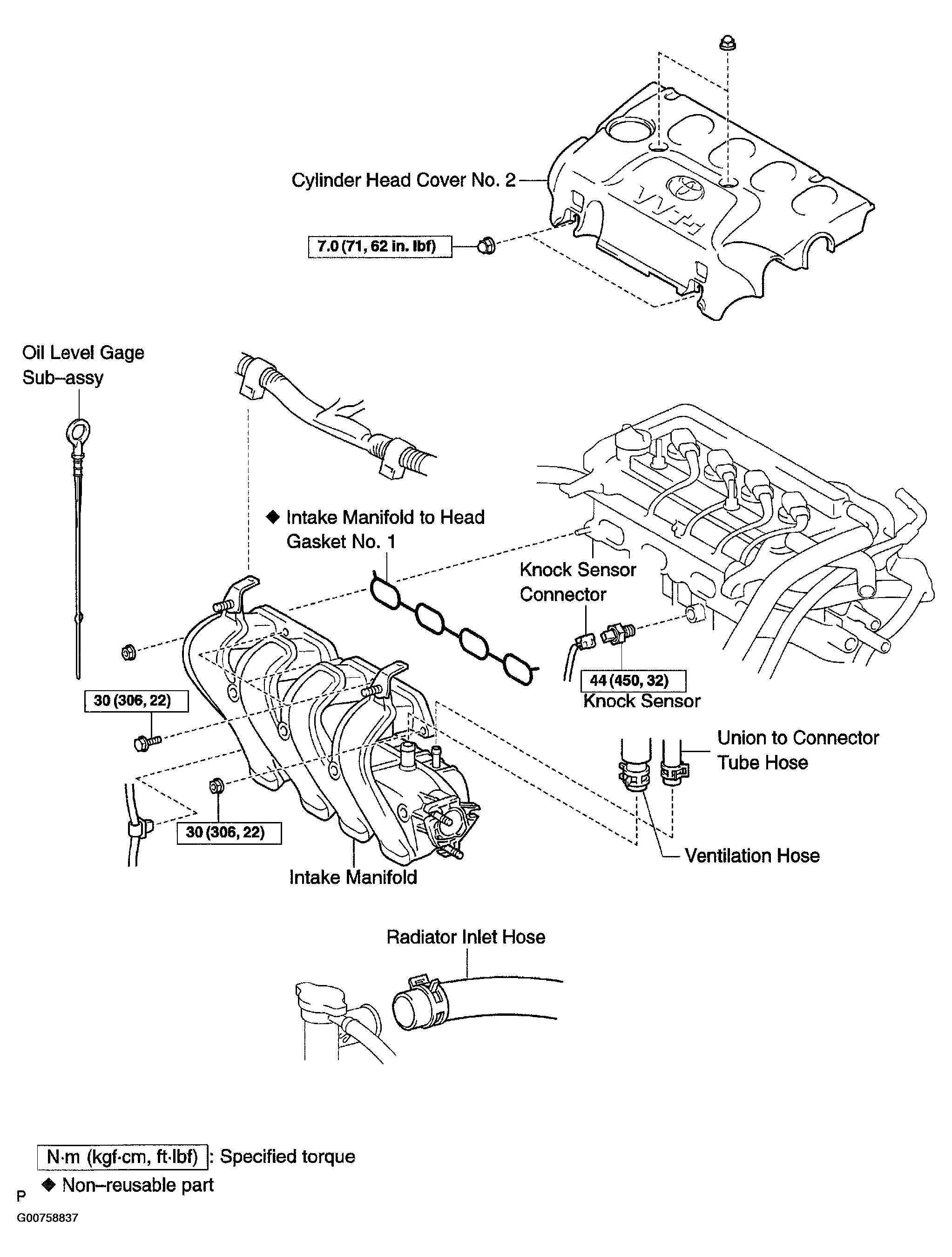

Fig 3: Exploded View Of Knock Sensor Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
