Throttle Body ASSY: Components

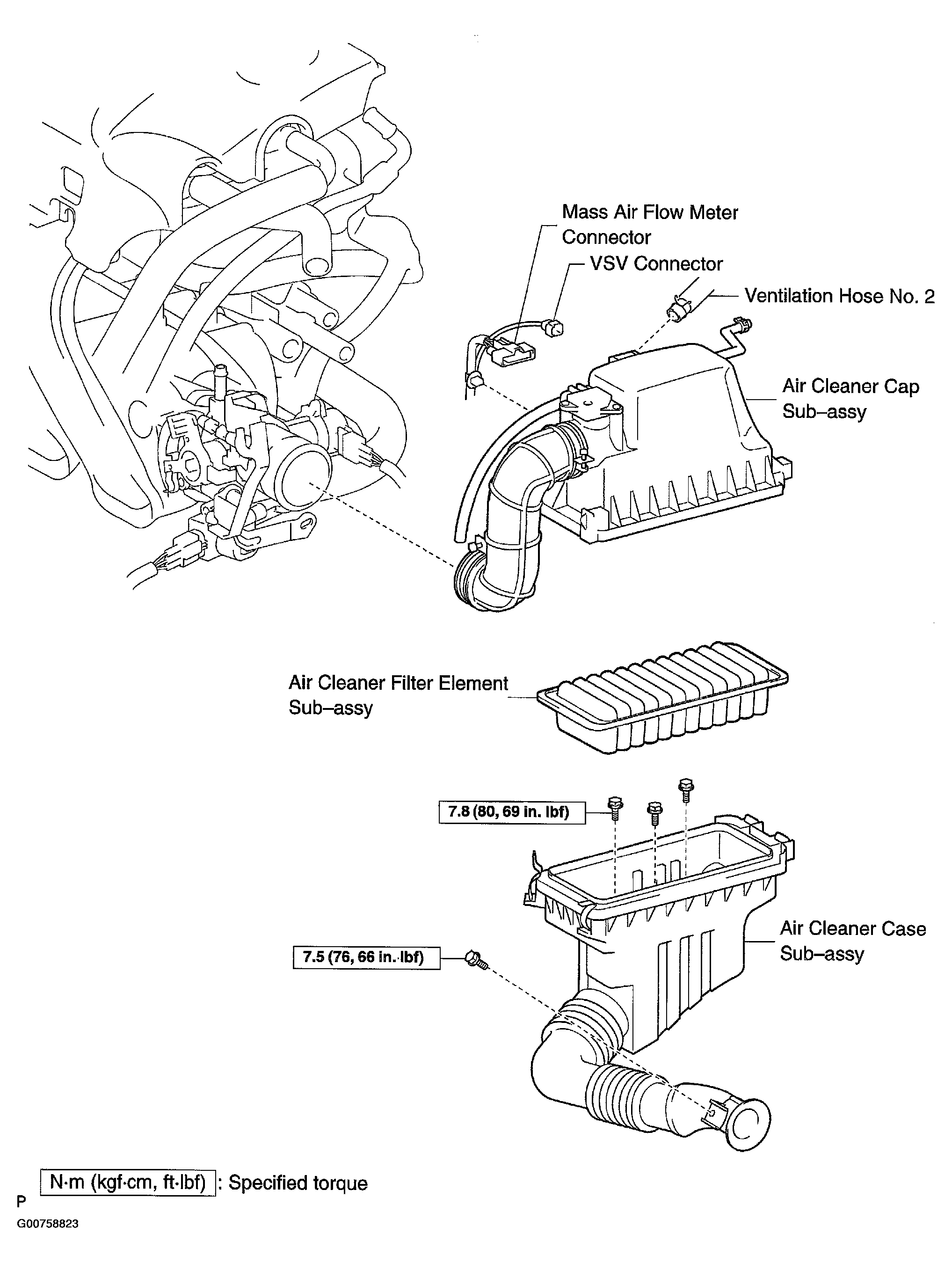

Fig 1: Locating Throttle Body Assembly Components (1 Of 2)
G00758823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

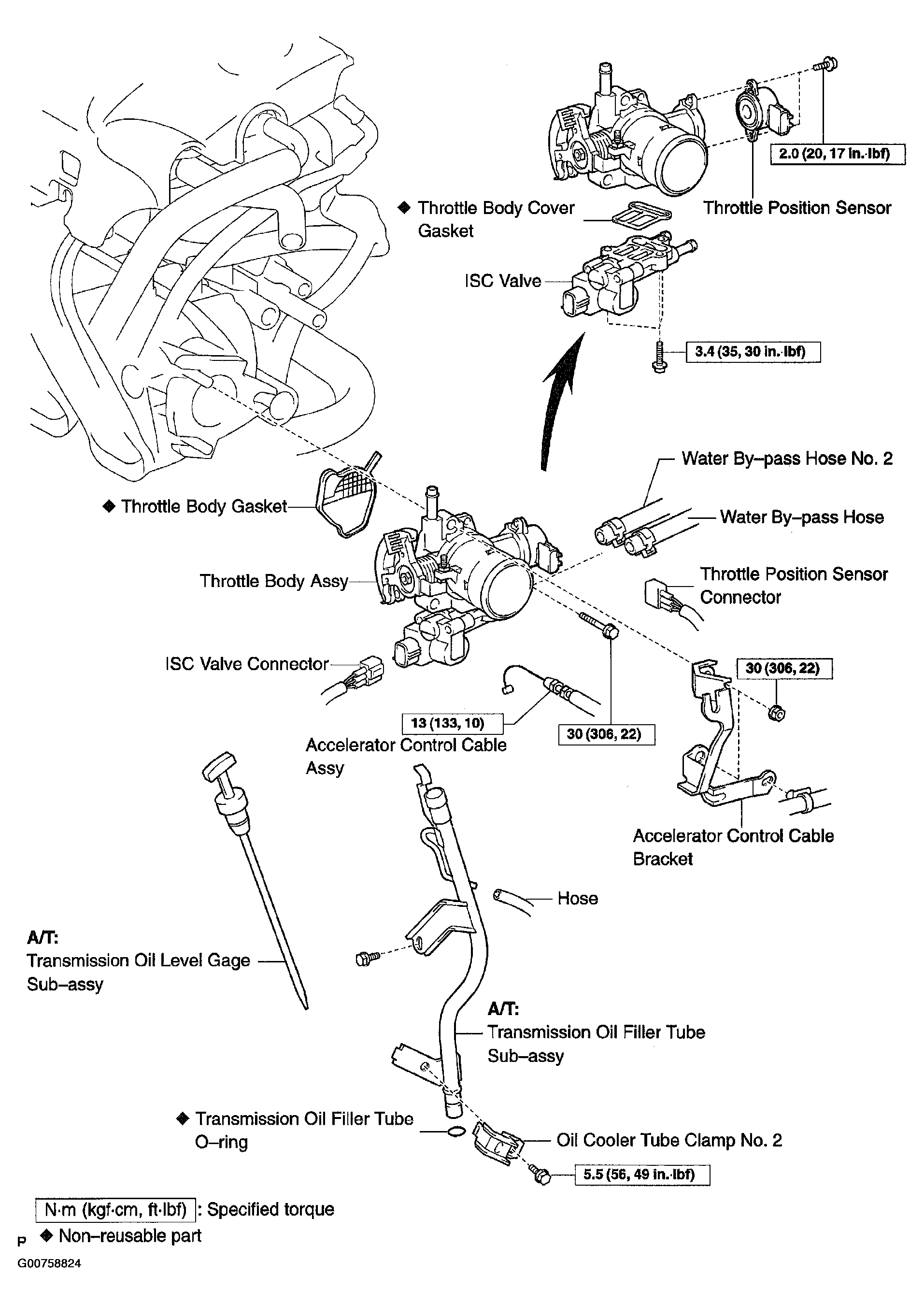

Fig 2: Locating Throttle Body Assembly Components (2 Of 2)
G00758824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
