Power Window Control System
>>
Location
Power Window Control System: Location

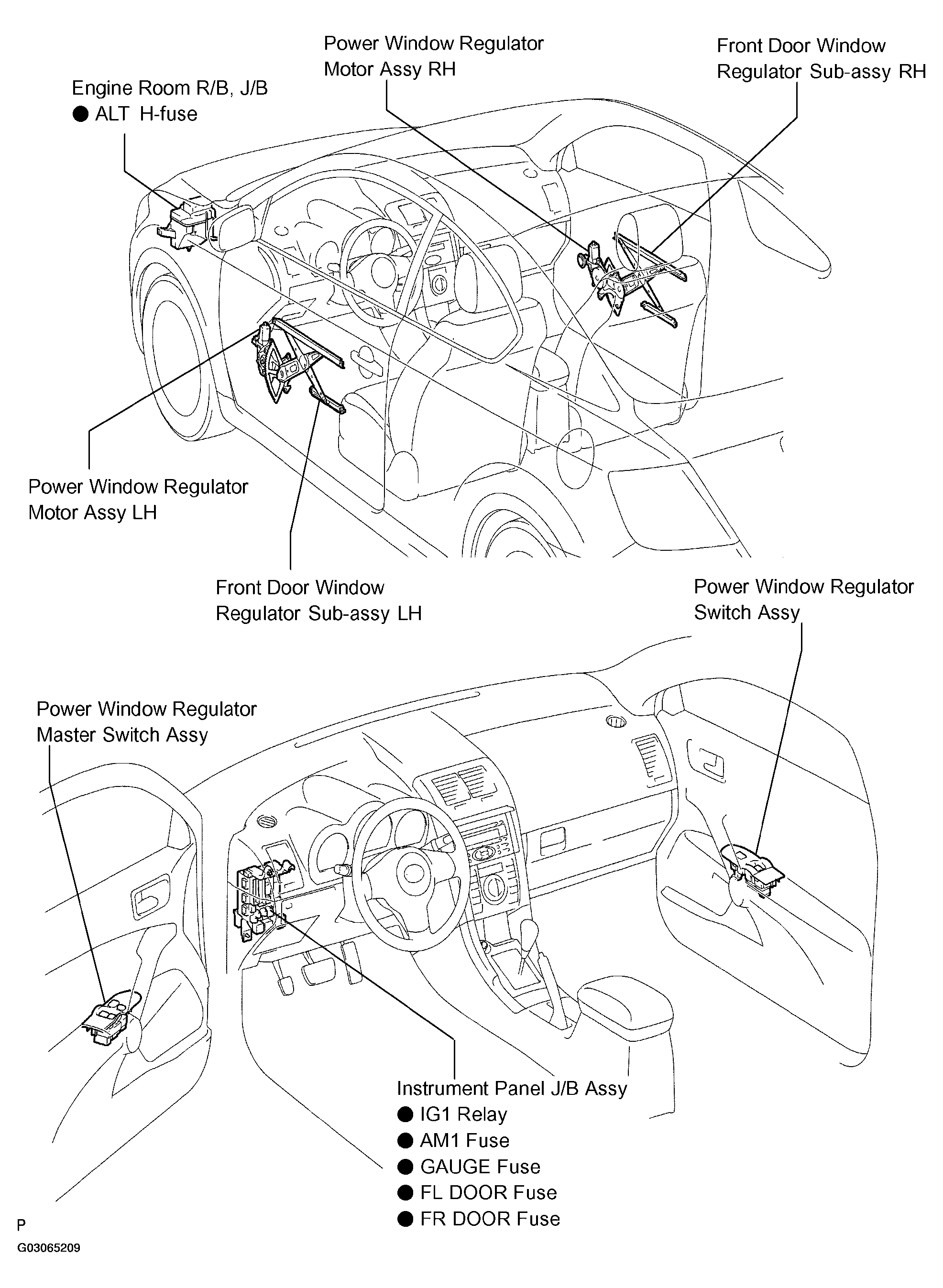

Fig 1: Identifying Power Window Control System Component Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
