Home >> Scion >> 2005 >> tC Automatic >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Column ASSY >> Components

Steering Column ASSY: Components

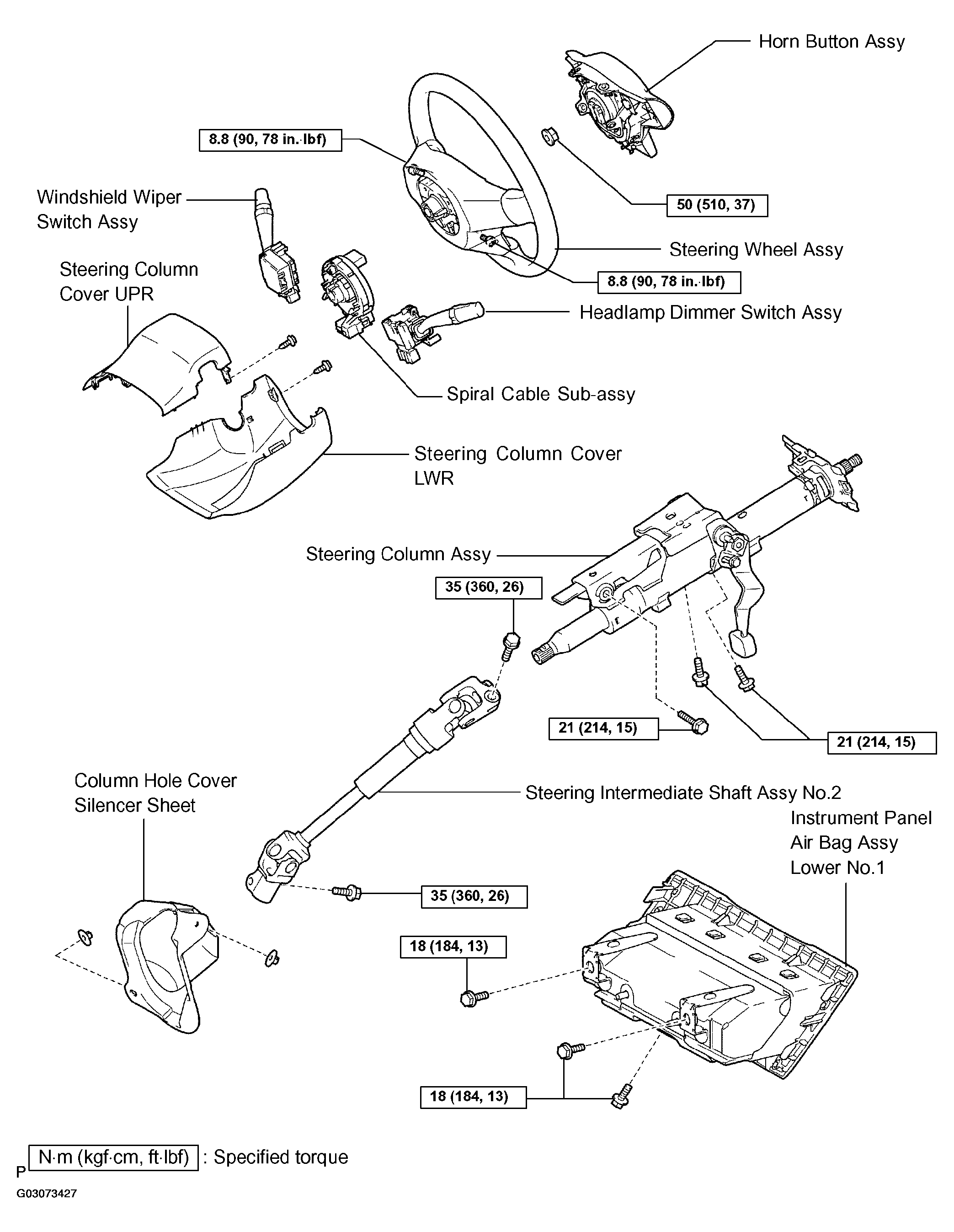

Fig 1: Identifying Steering Column Assy Components (1 Of 2)
G03073427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

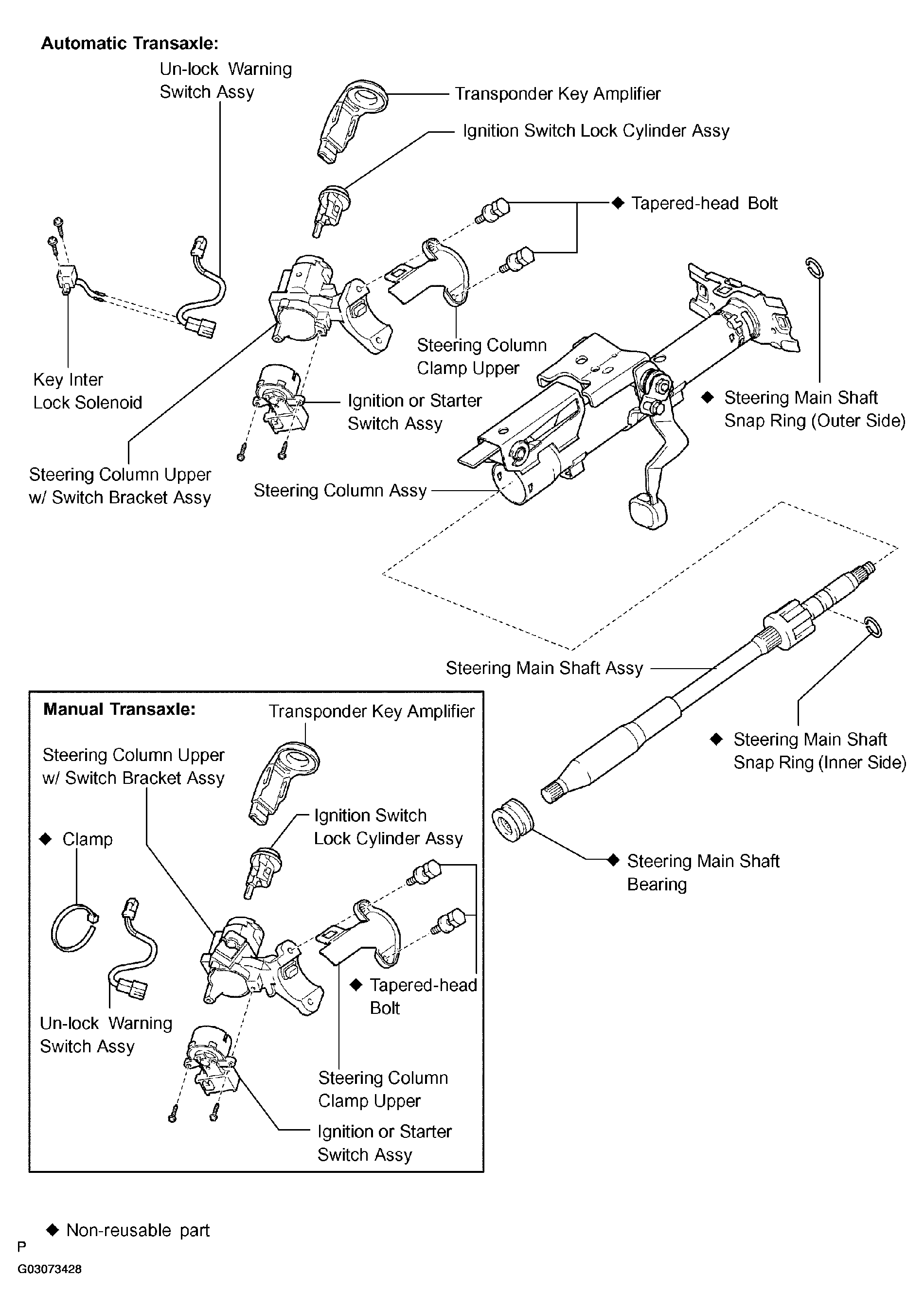

Fig 2: Identifying Steering Column Assy Components (2 Of 2)
G03073428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
