Instrument Panel/Meter: Components

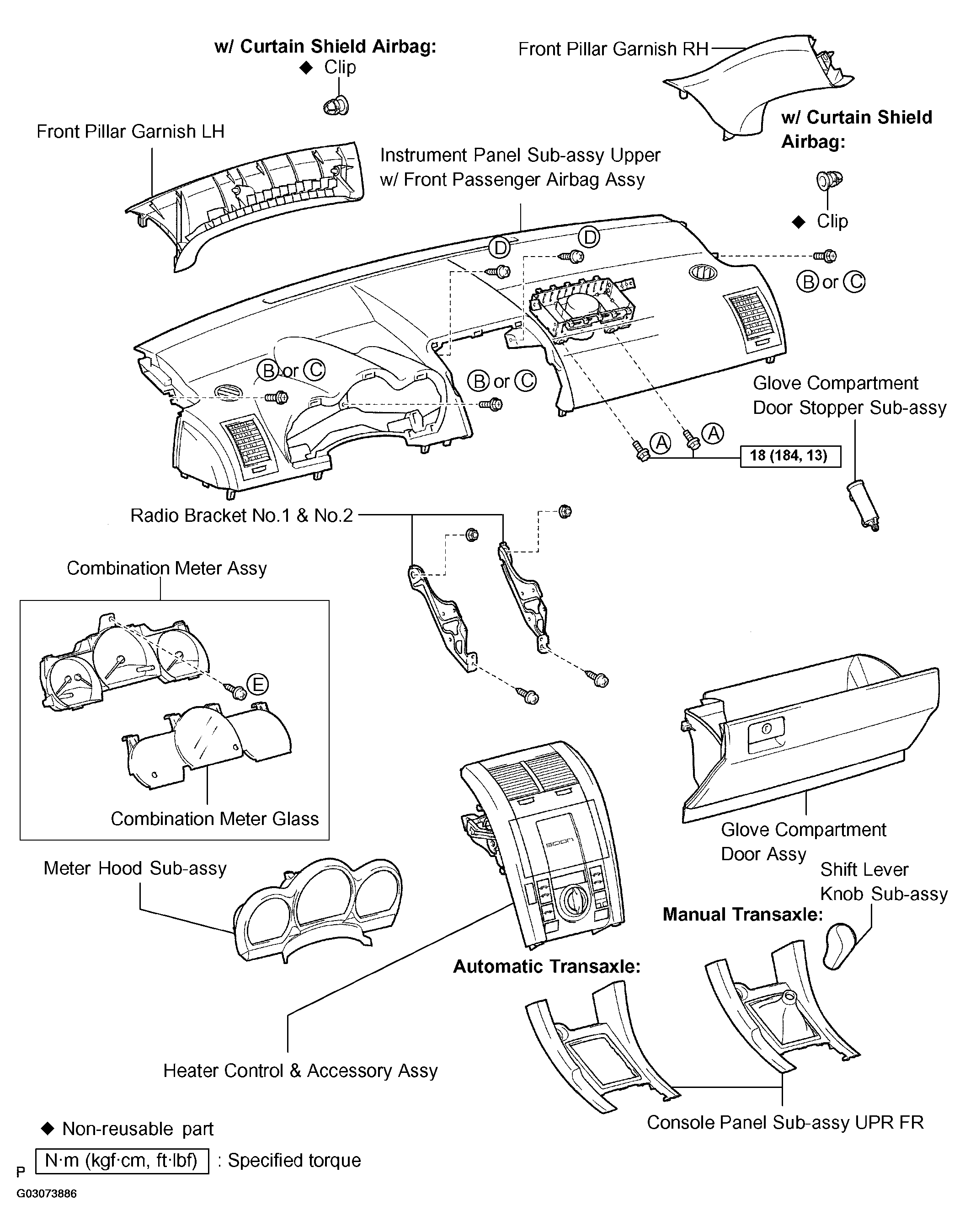

Fig 1: Identifying Instrument Panel/Meter Components (1 of 4)
G03073886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

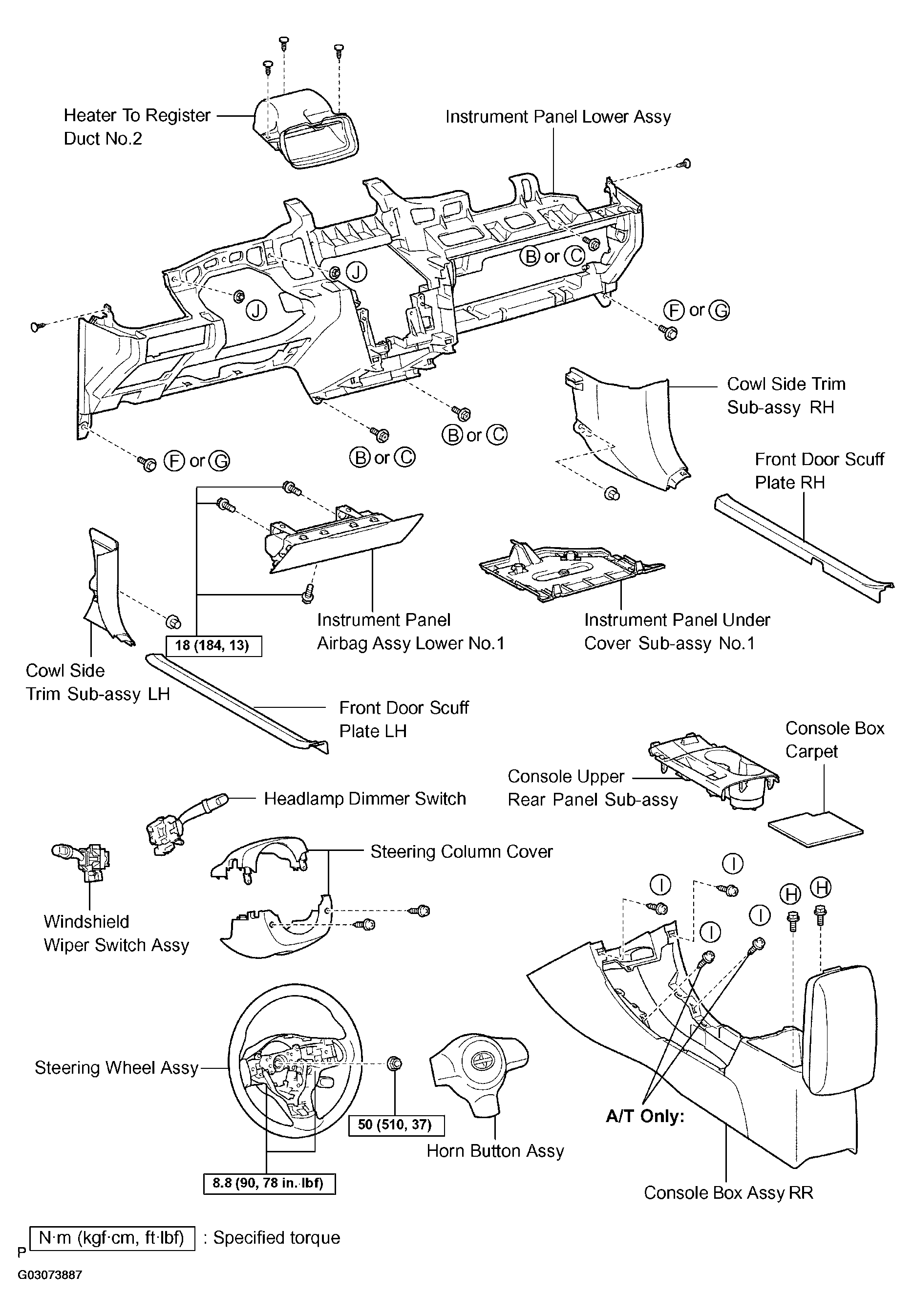

Fig 2: Identifying Instrument Panel/Meter Components (2 of 4)
G03073887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

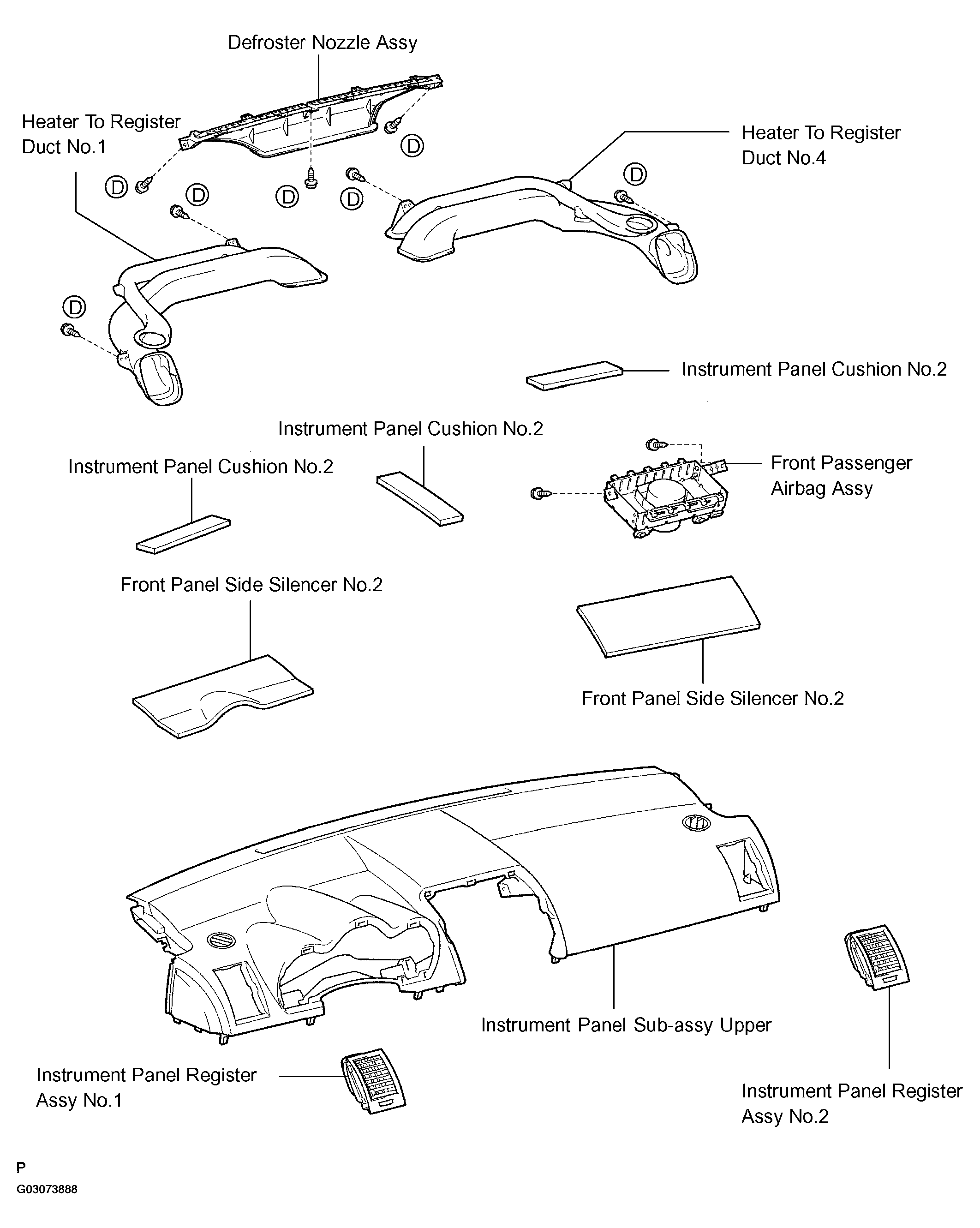

Fig 3: Identifying Instrument Panel/Meter Components (3 of 4)
G03073888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

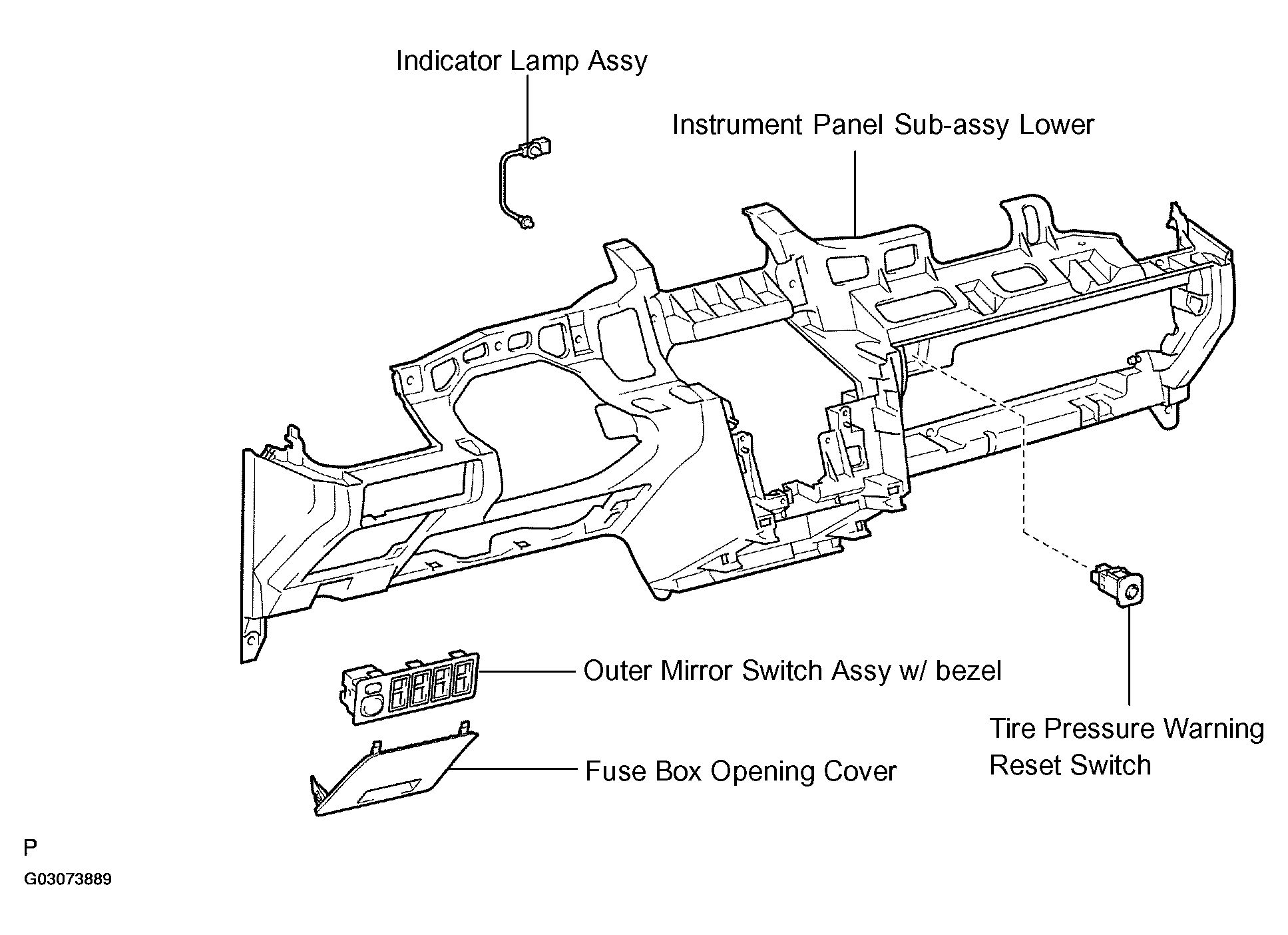

Fig 4: Identifying Instrument Panel/Meter Components (4 of 4)
G03073889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
