Crankshaft Position Sensor (2AZ-FE): Replacement

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.

INITIALIZE SYSTEMS

System Name	Refer to
Power Window Control System	INITIALIZATION
Sliding Roof System	INITIALIZATION

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FRONT FENDER APRON SEAL RH (See REPLACEMENT )
REMOVE FAN AND GENERATOR V BELT (See FAN AND GENERATOR V BELT (2AZ-FE) )
1. SST 09249-63010
REMOVE GENERATOR ASSY (See REPLACEMENT )
REMOVE CRANKSHAFT POSITION SENSOR
1. Disconnect the crankshaft position sensor connector.
2. Remove the connector clamp.
3. Remove wire harness from the wire harness clamp bracket.
4. Remove the wire harness clamp.
5. Remove the bolt, then crankshaft position sensor.

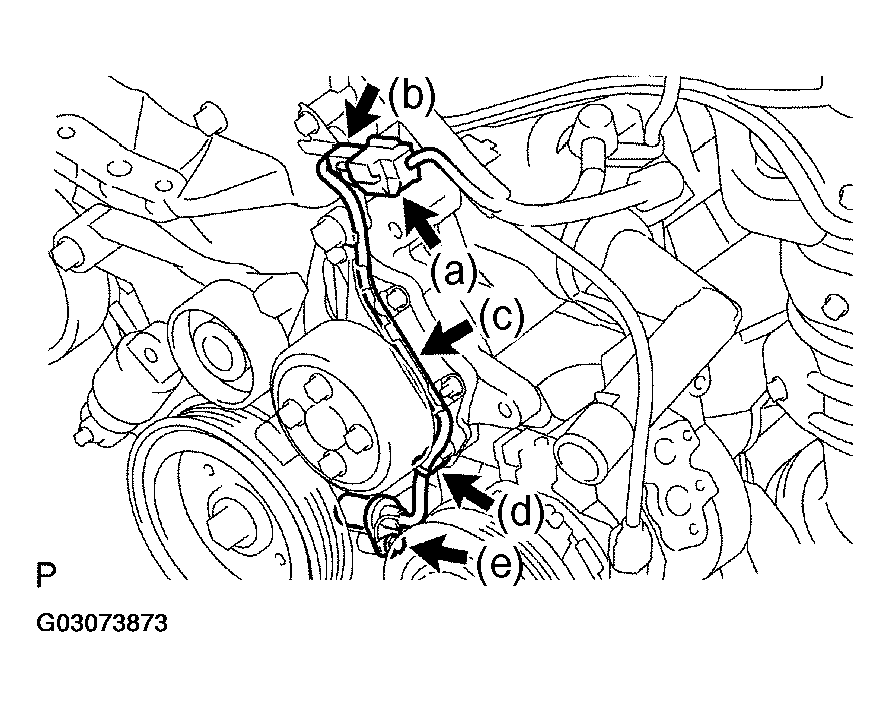

Fig 1: Removing Crankshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANKSHAFT POSITION SENSOR
1. Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.

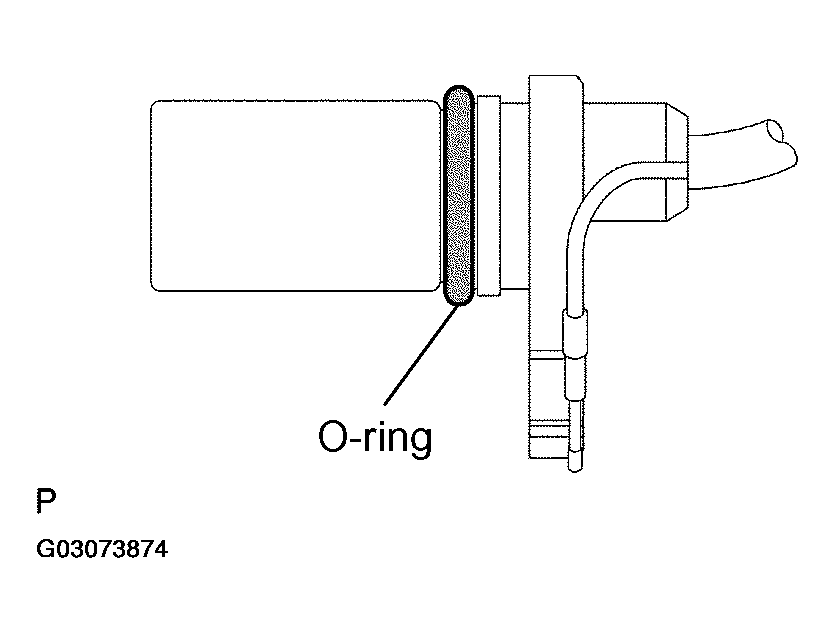

  Fig 2: Identifying O-Ring Of Crankshaft Position Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the crankshaft position sensor with the bolt.
  1. Torque: 9.0 N.m (90 kgf.cm, 80 in.lbf)
  NOTE: Make sure that the O-ring is not cracked or jammed when installing.
3. Install the wire harness clamp.
4. Install the connector clamp.
5. Connect the crankshaft position sensor connector.
6. Confirm that the wire harness of the crankshaft position sensor is secured to the wire harness clamp bracket through the back of the rib of the timing chain cover.

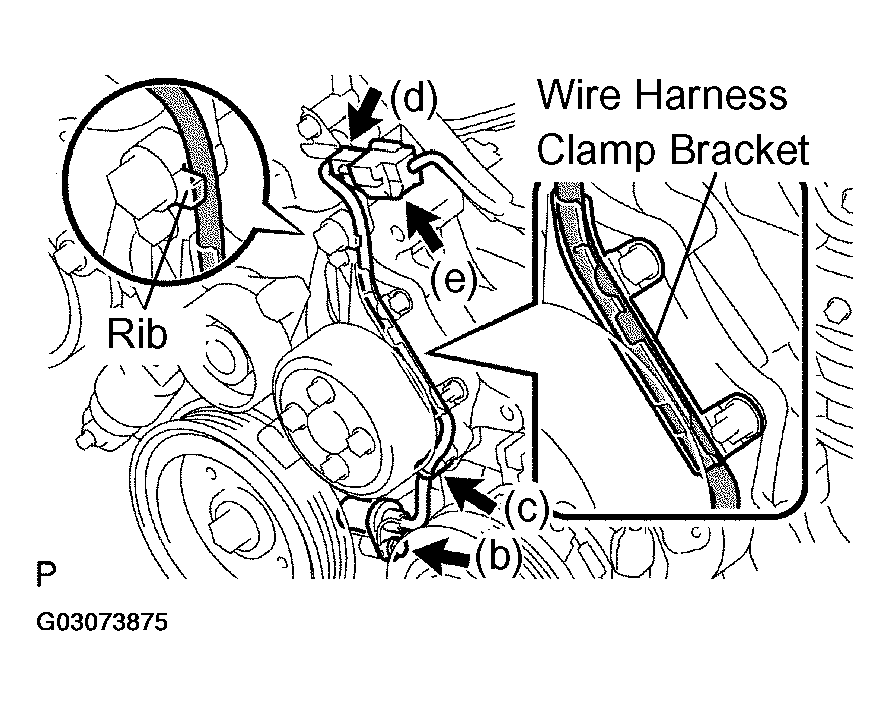

Fig 3: Installing Crankshaft Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL GENERATOR ASSY (See REPLACEMENT )
INSTALL FAN AND GENERATOR V BELT (See FAN AND GENERATOR V BELT (2AZ-FE) )
1. SST 09249-63010
CONNECT BATTERY NEGATIVE TERMINAL
1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
CHECK FOR ENGINE OIL LEAKAGE
INSTALL FRONT FENDER APRON SEAL RH (See REPLACEMENT )
