Fuel Pump Control Circuit: Wiring Diagram

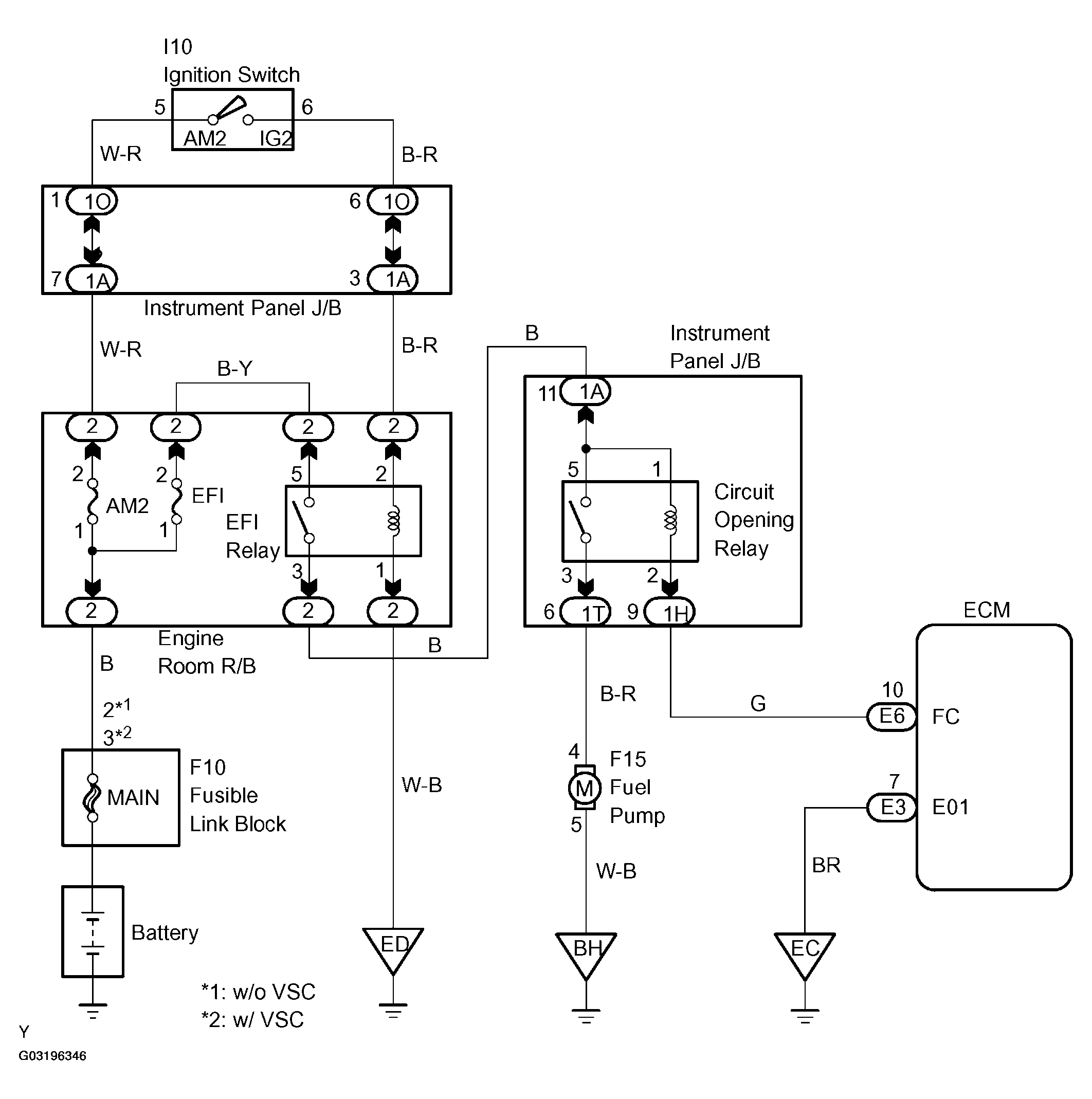

Fig 1: Fuel Pump Control Wiring Diagram

G03196346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
