Waveform 1

Airbag sensor assembly

TERMINAL SPECIFICATIONS

ECM Terminal Names Between F/PS and E1
Tester Ranges 5 V/DIV, 500 msec./DIV
Conditions Idling with warm engine

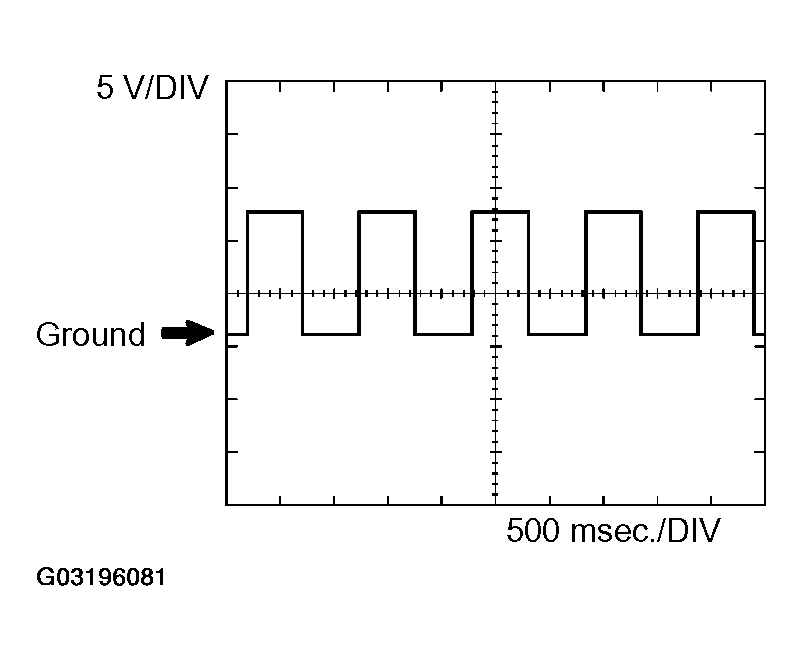

Fig 1: Identifying Waveform 1
G03196081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
