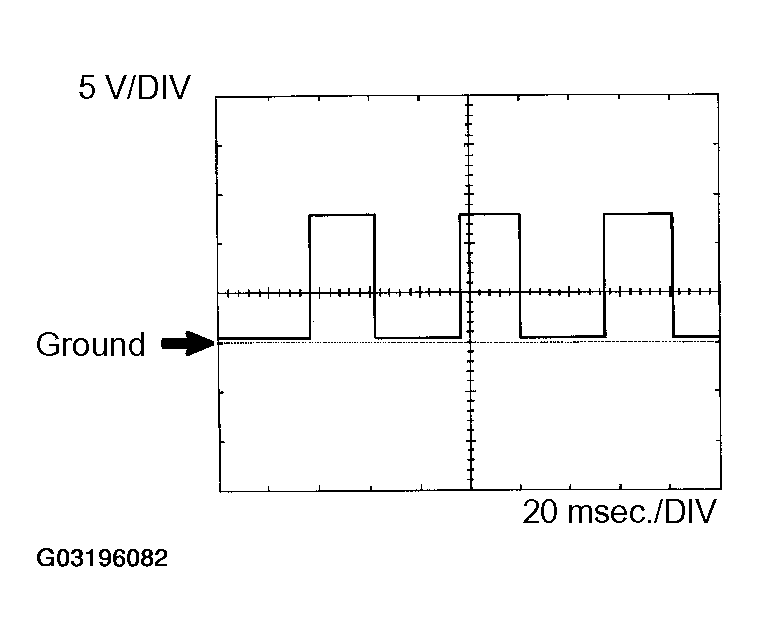

Waveform 2
Vehicle speed signal
TERMINAL SPECIFICATIONS
| ECM Terminal Names |
Between SPD and E1 |
| Tester Ranges |
5 V/DIV, 20 msec./DIV |
| Conditions |
Driving at 25 mph (40 km/h) |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
The wavelength becomes shorter as the vehicle speed increases.
