Home >> Scion >> 2005 >> xB Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel >> Fuel Pump ASSY >> Components

Fuel Pump ASSY: Components

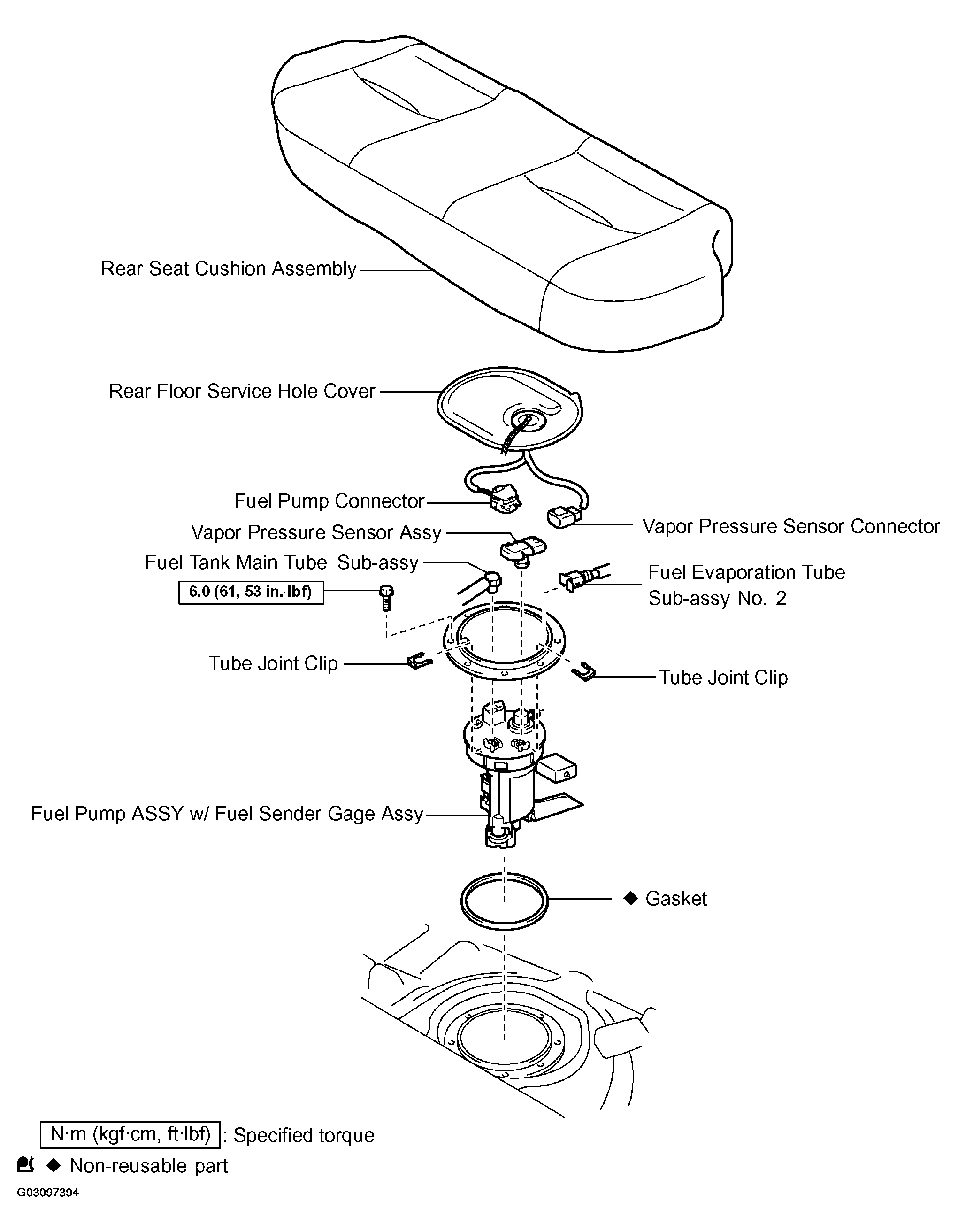

Fig 1: Identifying Fuel Pump Assy Components (1 Of 2)
G03097394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

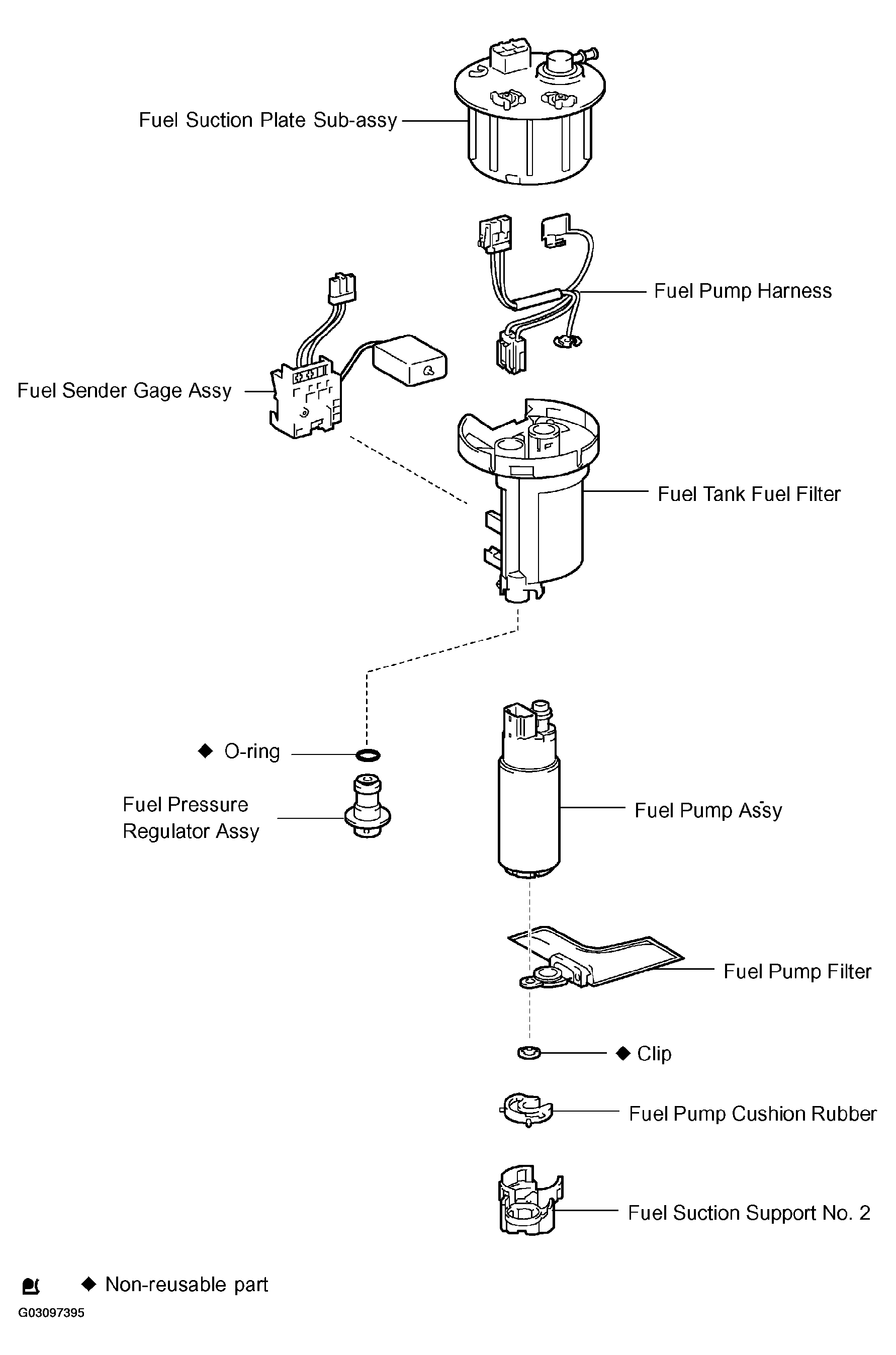

Fig 2: Identifying Fuel Pump Assy Components (2 Of 2)
G03097395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
