Scion
>>
2005
>>
xB Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel
>>
Fuel Tank ASSY
>>
Components
Fuel Tank ASSY: Components

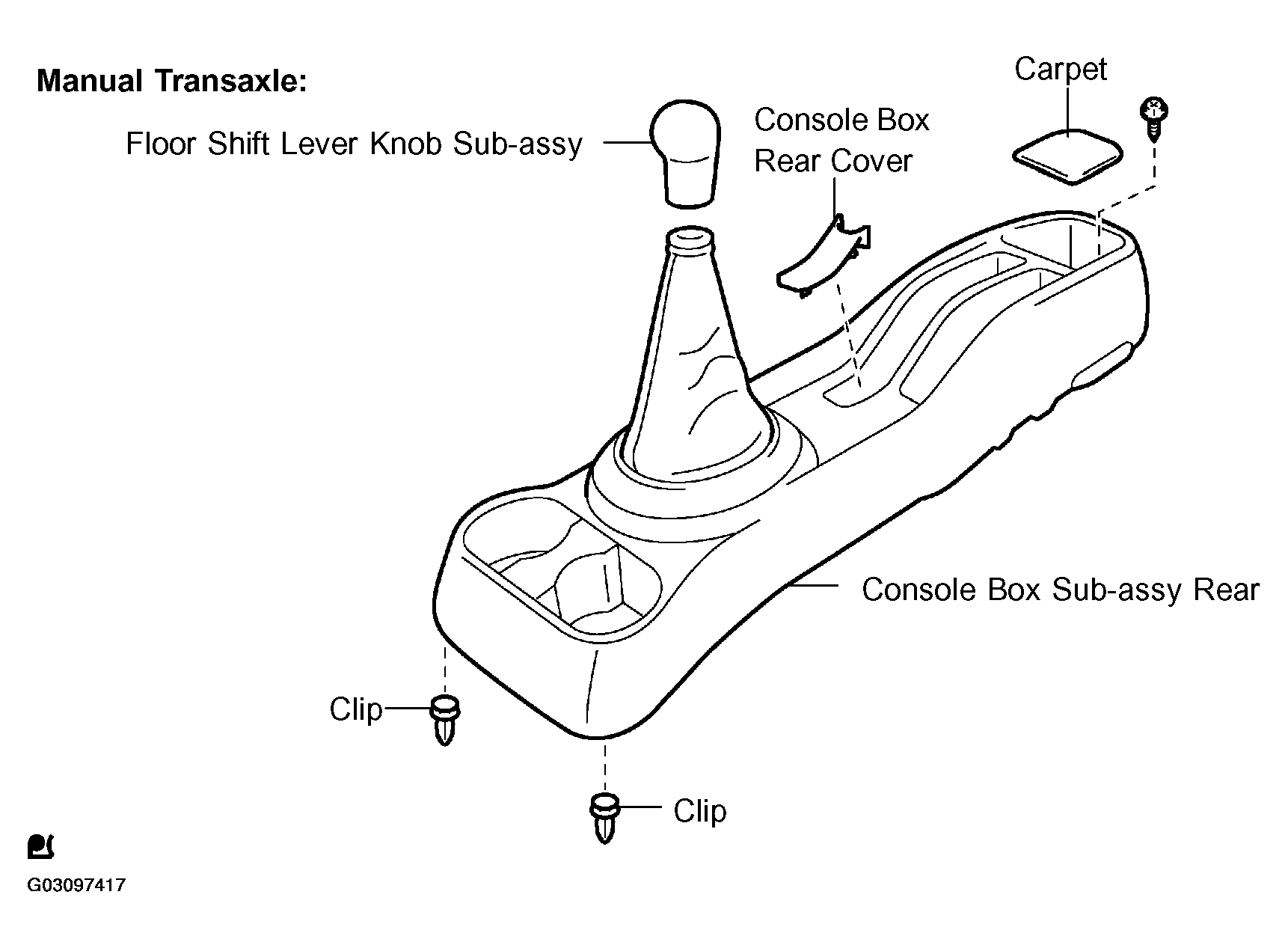

Fig 1: Identifying Fuel Tank Assy Components (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

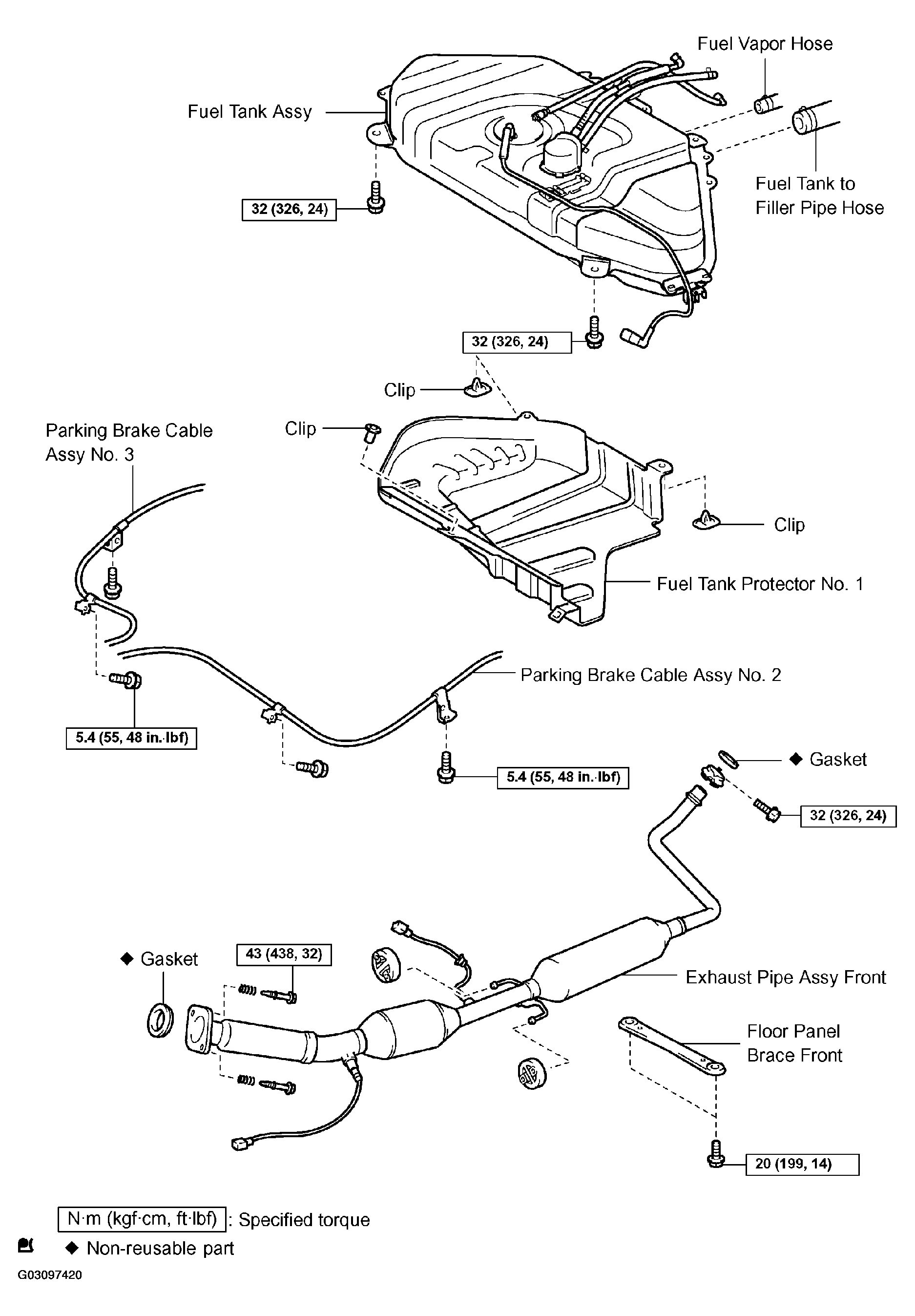

Fig 2: Identifying Fuel Tank Assy Components (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

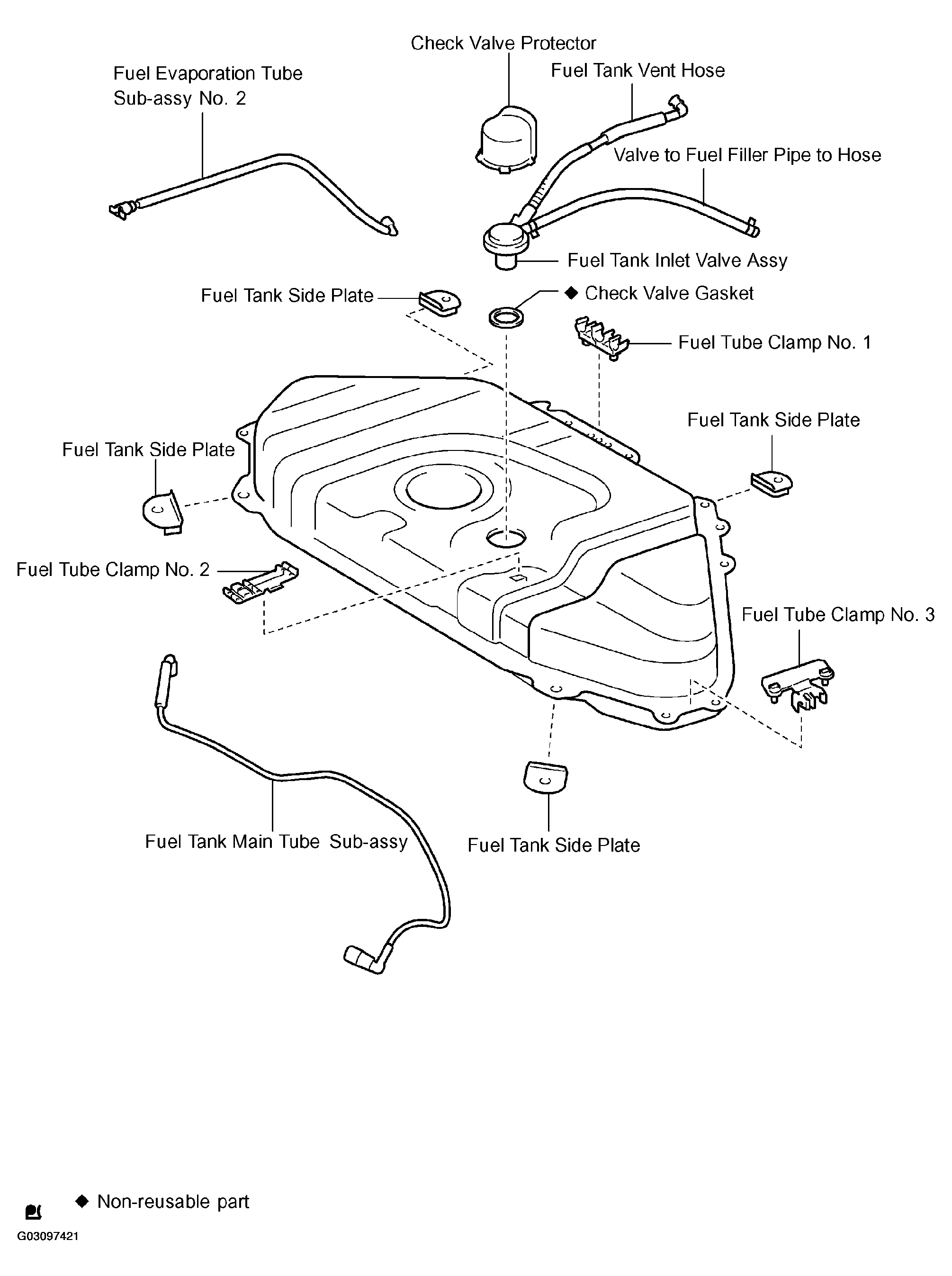

Fig 3: Identifying Fuel Tank Assy Components (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Tank Assy Components (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Fuel Tank Assy Components (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
