Home >> Scion >> 2005 >> xB Standard >> Repair and Diagnosis >> Engine Performance >> SFI System >> ECM Power Source Circuit >> Wiring Diagram

ECM Power Source Circuit: Wiring Diagram

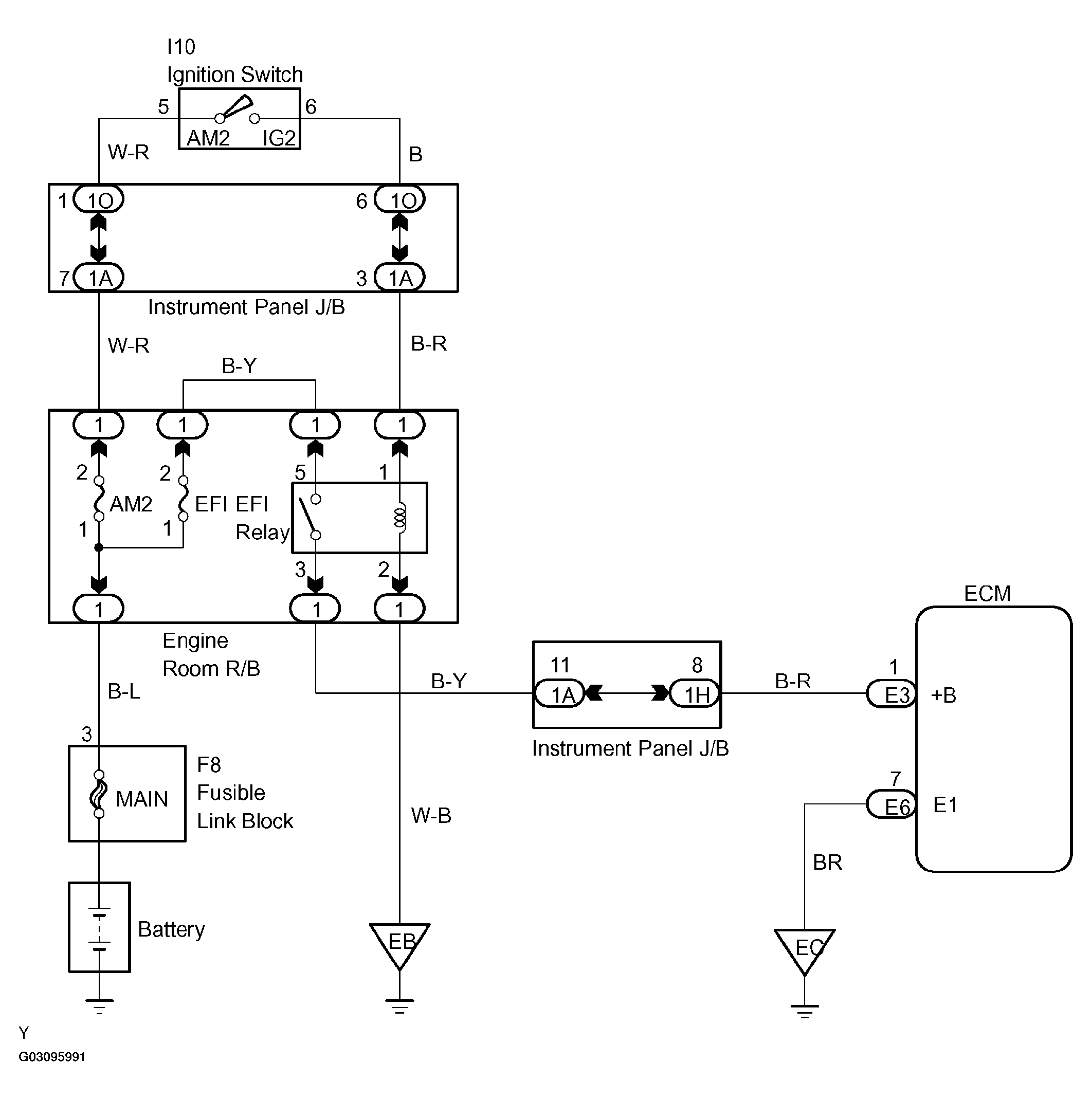

Fig 1: ECM Power Source Circuit Wiring Diagram

G03095991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
