Camshaft Position Sensor: Inspection

INSPECT CAMSHAFT POSITION SENSOR

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Specified Condition
1 (G+) - 2 (G-)	835 to 1,400 Ω at cold
1 (G+) - 2 (G-)	1,060 to 1,645 Ω at hot

NOTE: Cold and Hot mean the temperature of the coils themselves. Cold is from -10 to 50°C (14 to 122 °F) and Hot is from 50 to 100°C (122 to 212°F).

If the result is not as specified, replace the camshaft position sensor.

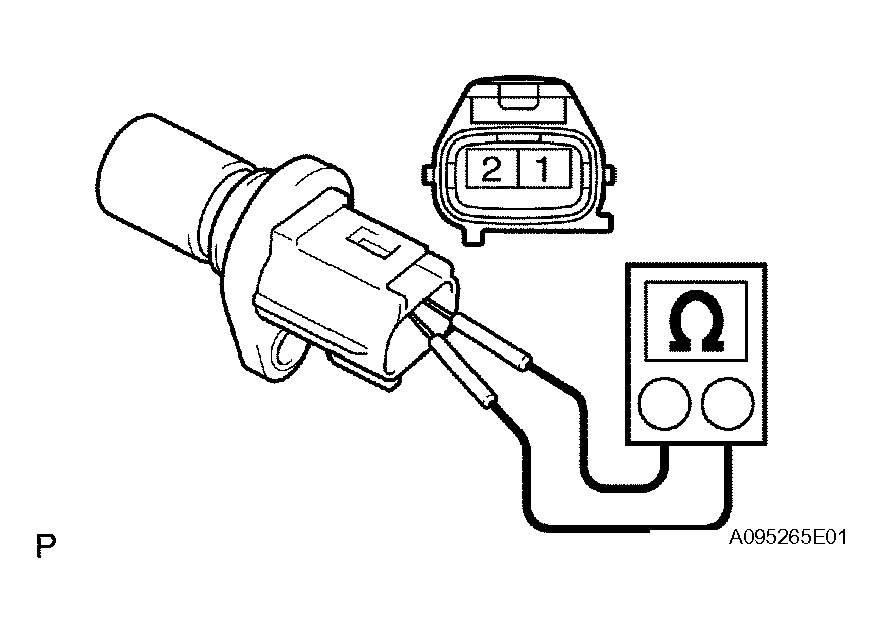

Fig 1: Measuring Resistance Of Sensor Terminals
