Home >> Scion >> 2006 >> tC Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (2AZ-FE) >> ECM >> Components

Engine Control System (2AZ-FE): ECM: Components

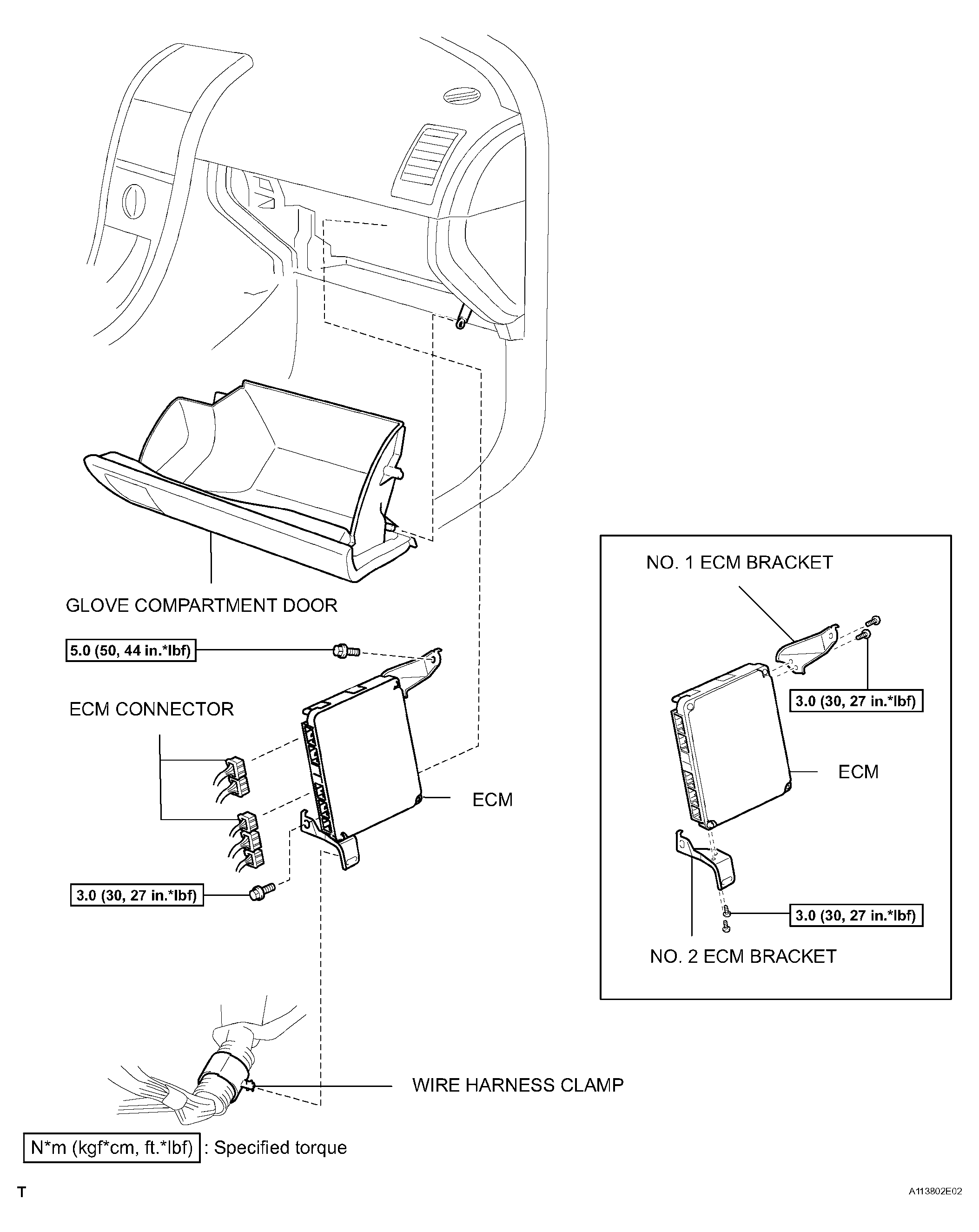

Fig 1: Identifying ECM Components

G04221412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
