Home >> Scion >> 2006 >> xA Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1NZ-FE) >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

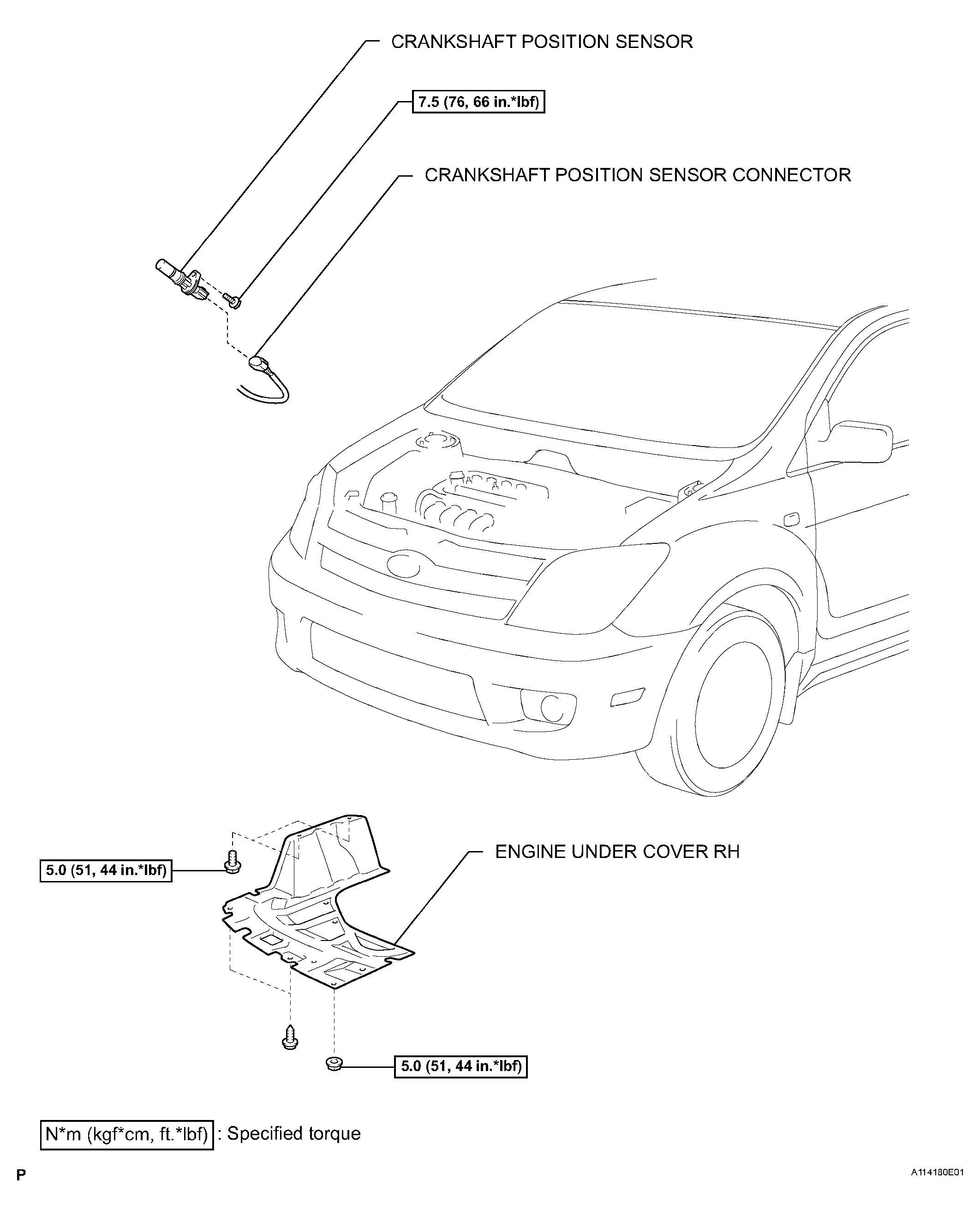

Fig 1: Identifying Crankshaft Position Sensor Components
G04153189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
