Home >> Scion >> 2006 >> xA Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1NZ-FE) >> Throttle Body >> Components

Throttle Body: Components

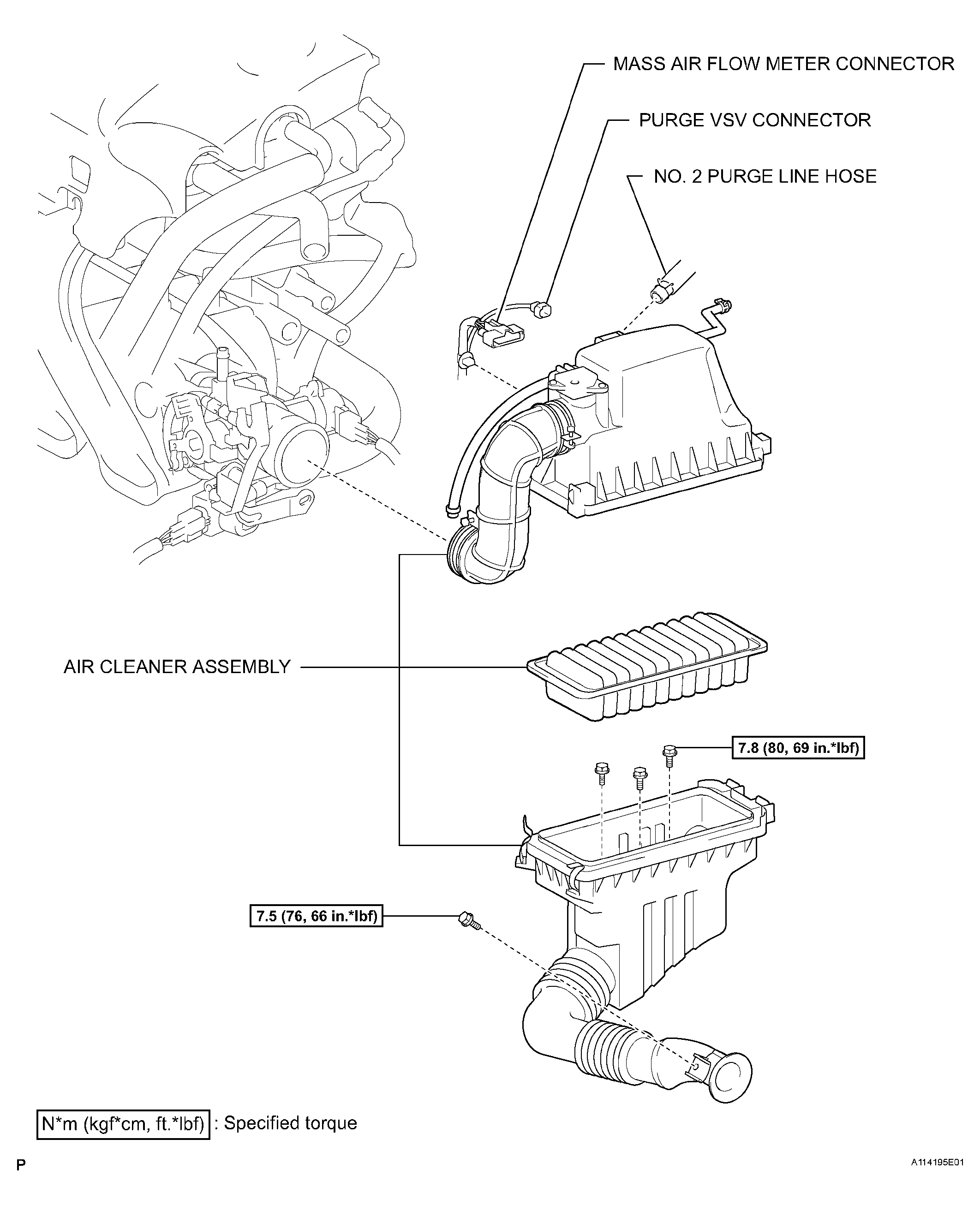

Fig 1: Identifying Throttle Body Components (1 Of 2)
G04153202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

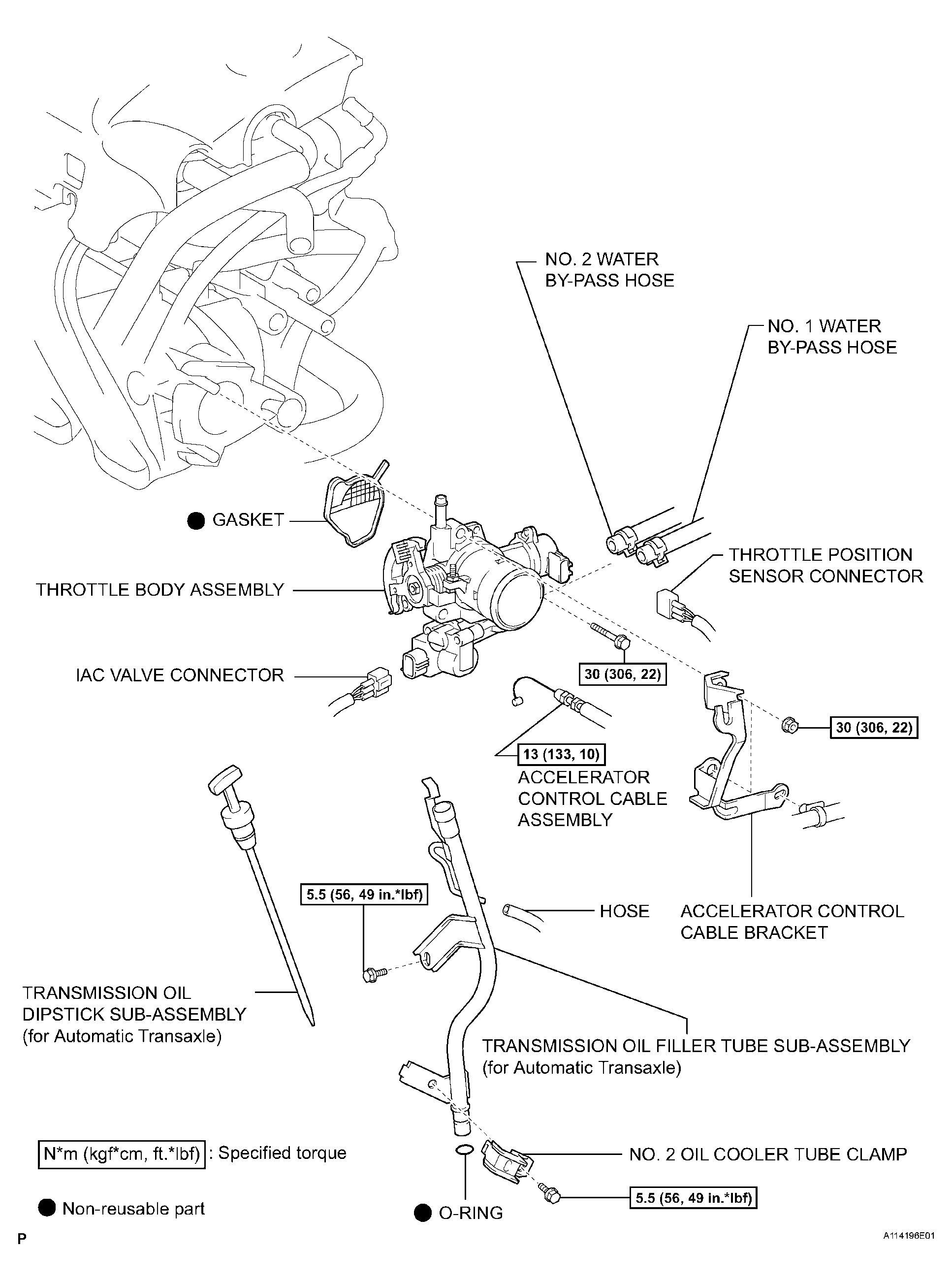

Fig 2: Identifying Throttle Body Components (2 Of 2)
G04153203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
