Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1NZ-FE) >> Idle Air Control Valve >> Components

Idle Air Control Valve: Components

Fig 1: Identifying Idle Air Control Valve Components (1 Of 2)
G04225757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

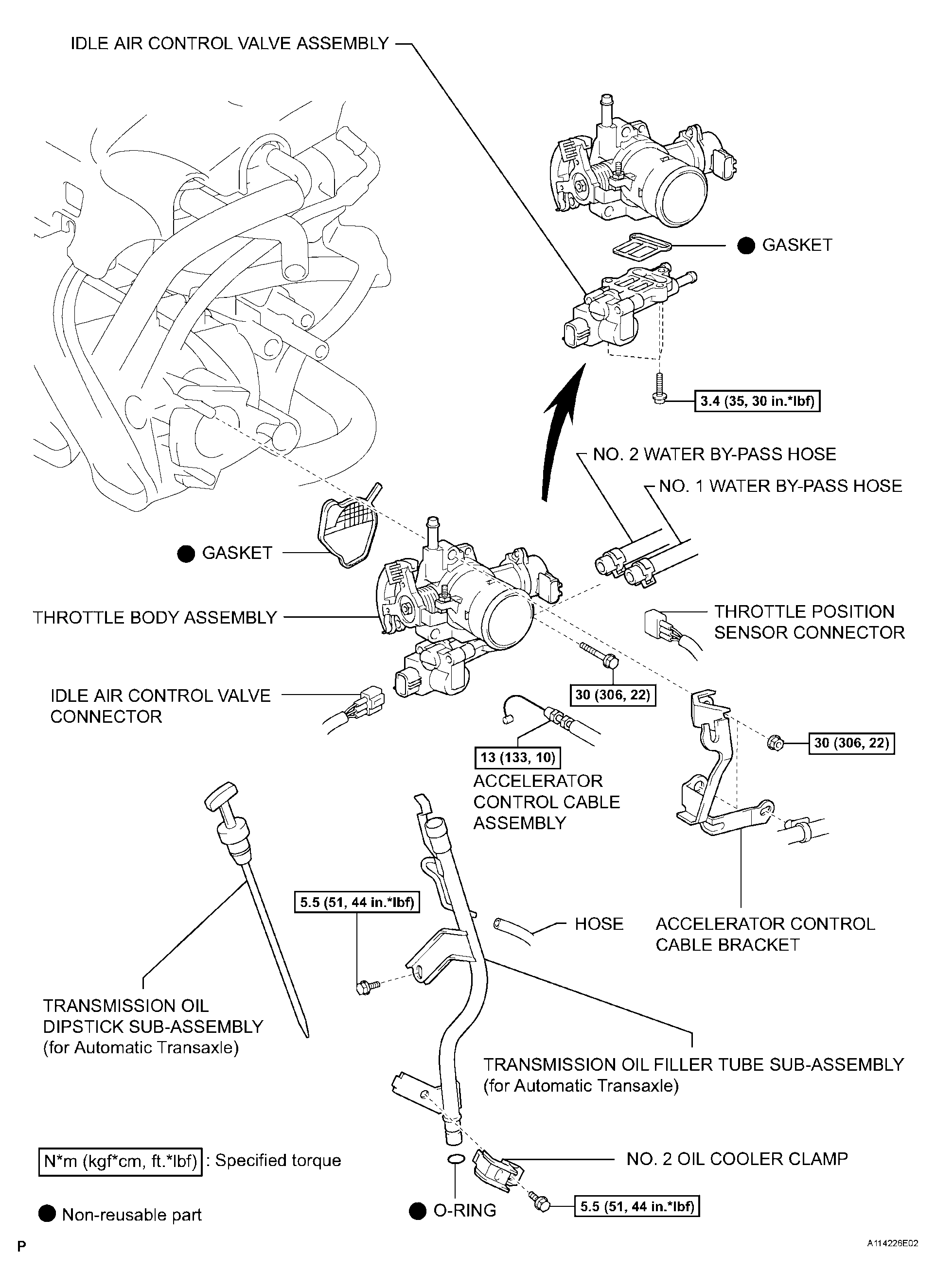

Fig 2: Identifying Idle Air Control Valve Components (2 Of 2)
G04225758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
