Mass Air Flow Meter: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install a new O-ring to the MAF meter.
    2. Install the MAF meter with the 2 screws.
    3. Connect the MAF connector.

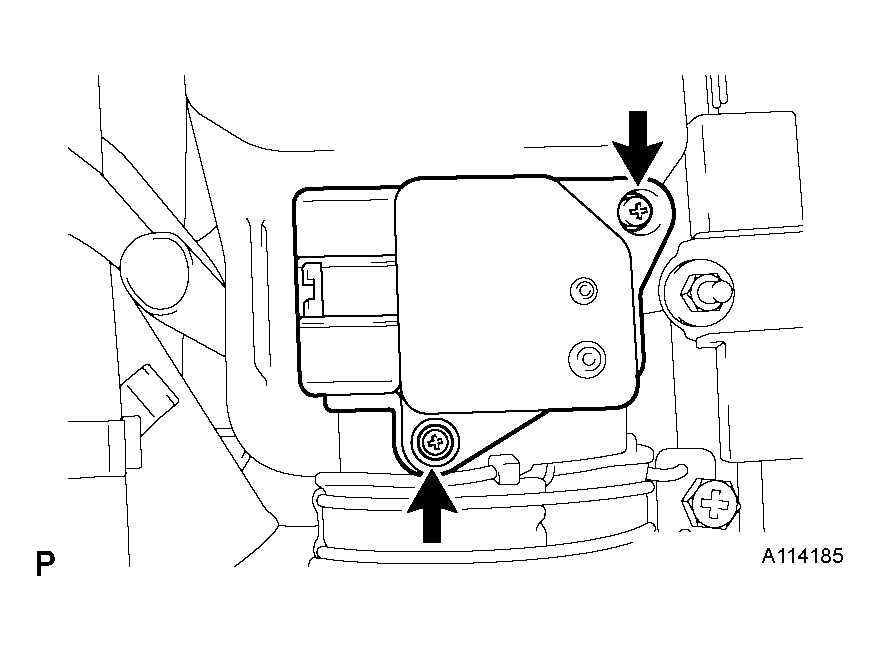

      Fig 1: Connecting MAF Connector
      G04225714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
