Home >> Scion >> 2006 >> xB Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (1NZ-FE) >> Parts Location >> Notes

Parts Location: Notes

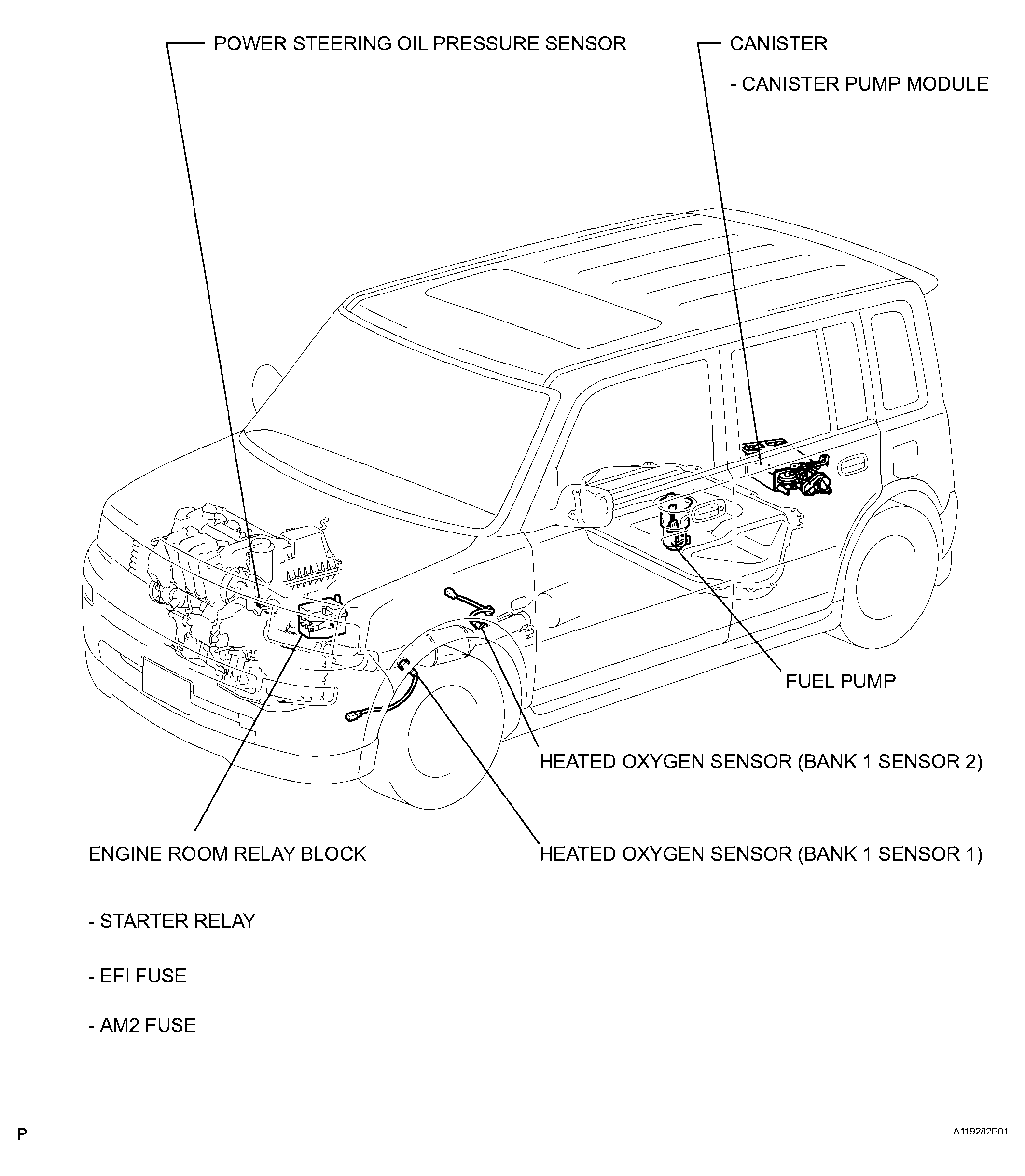

Fig 1: Locating SFI System Components (1 Of 3)
G04225347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

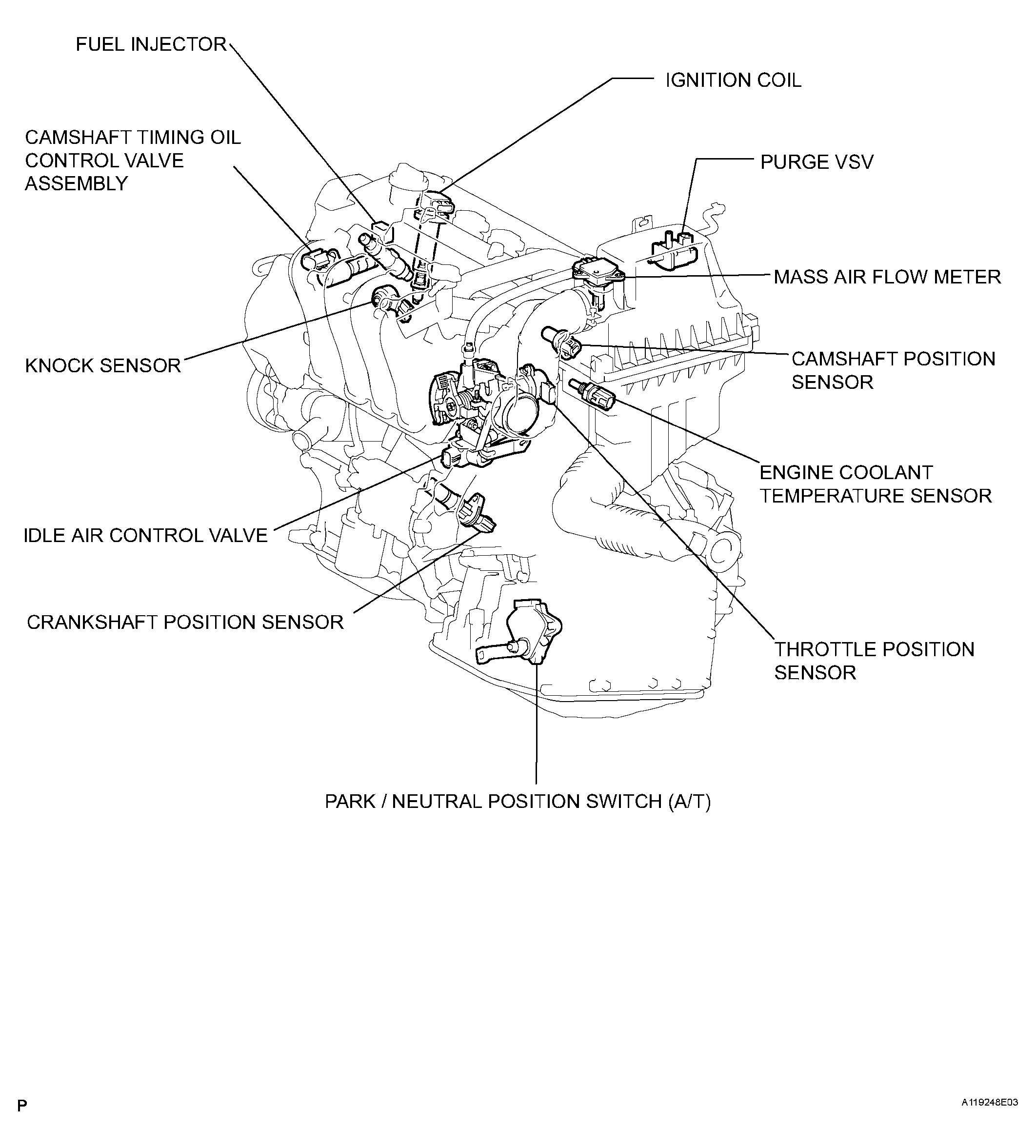

Fig 2: Locating SFI System Components (2 Of 3)
G04225348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

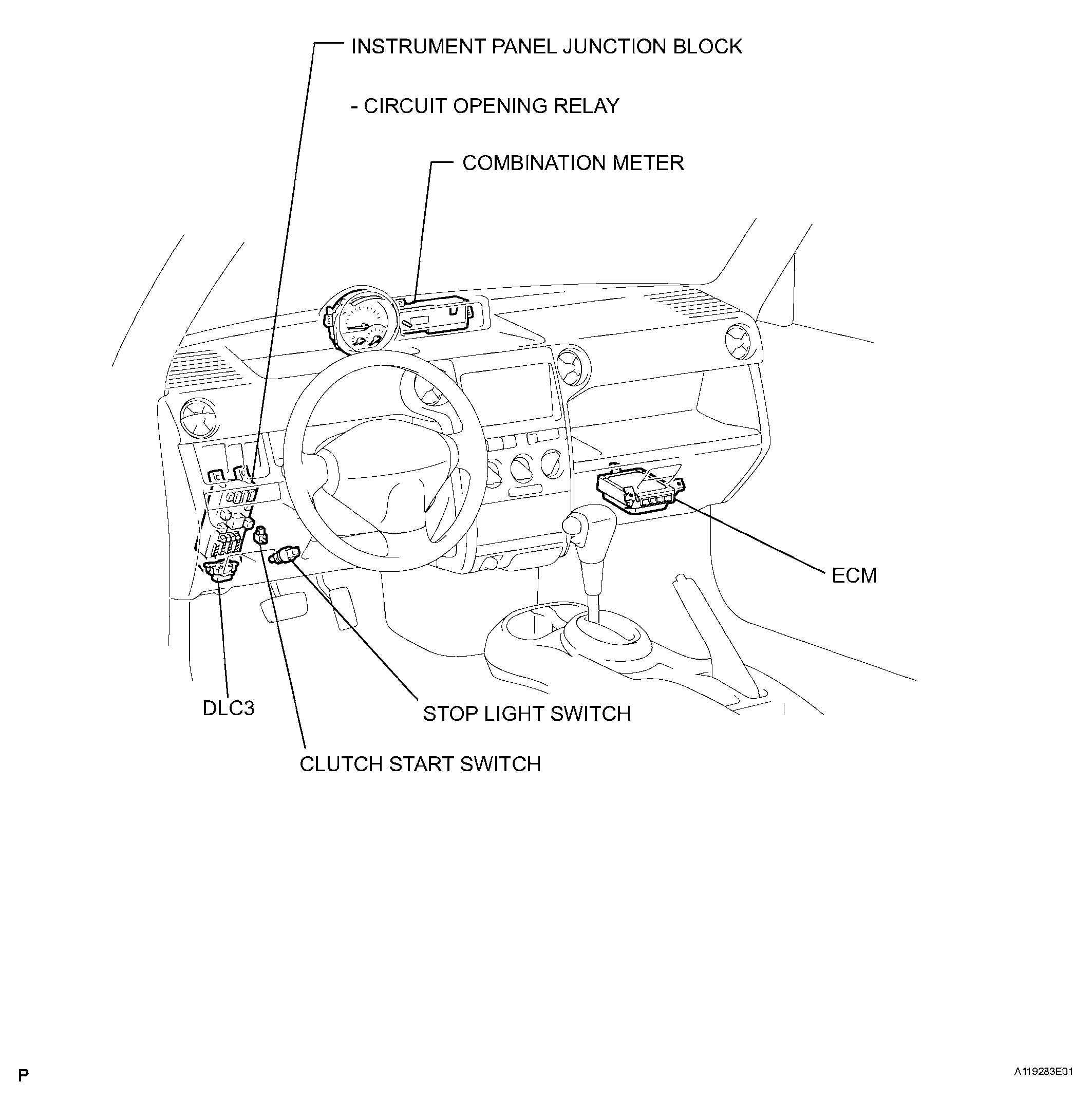

Fig 3: Locating SFI System Components (3 Of 3)
G04225349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
