System Diagram

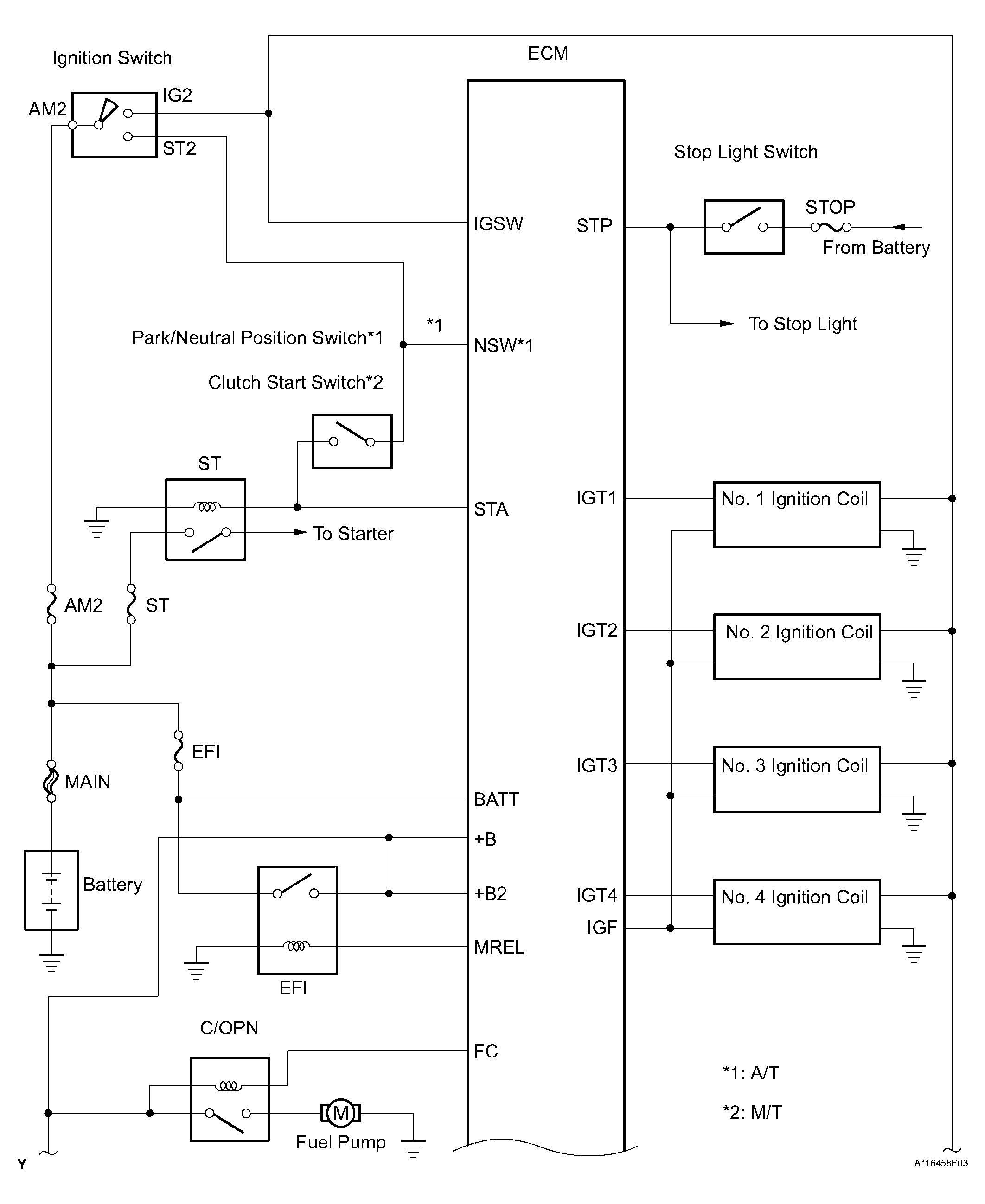

Fig 1: Identifying SFI System Diagram (1 Of 3)
G04225350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

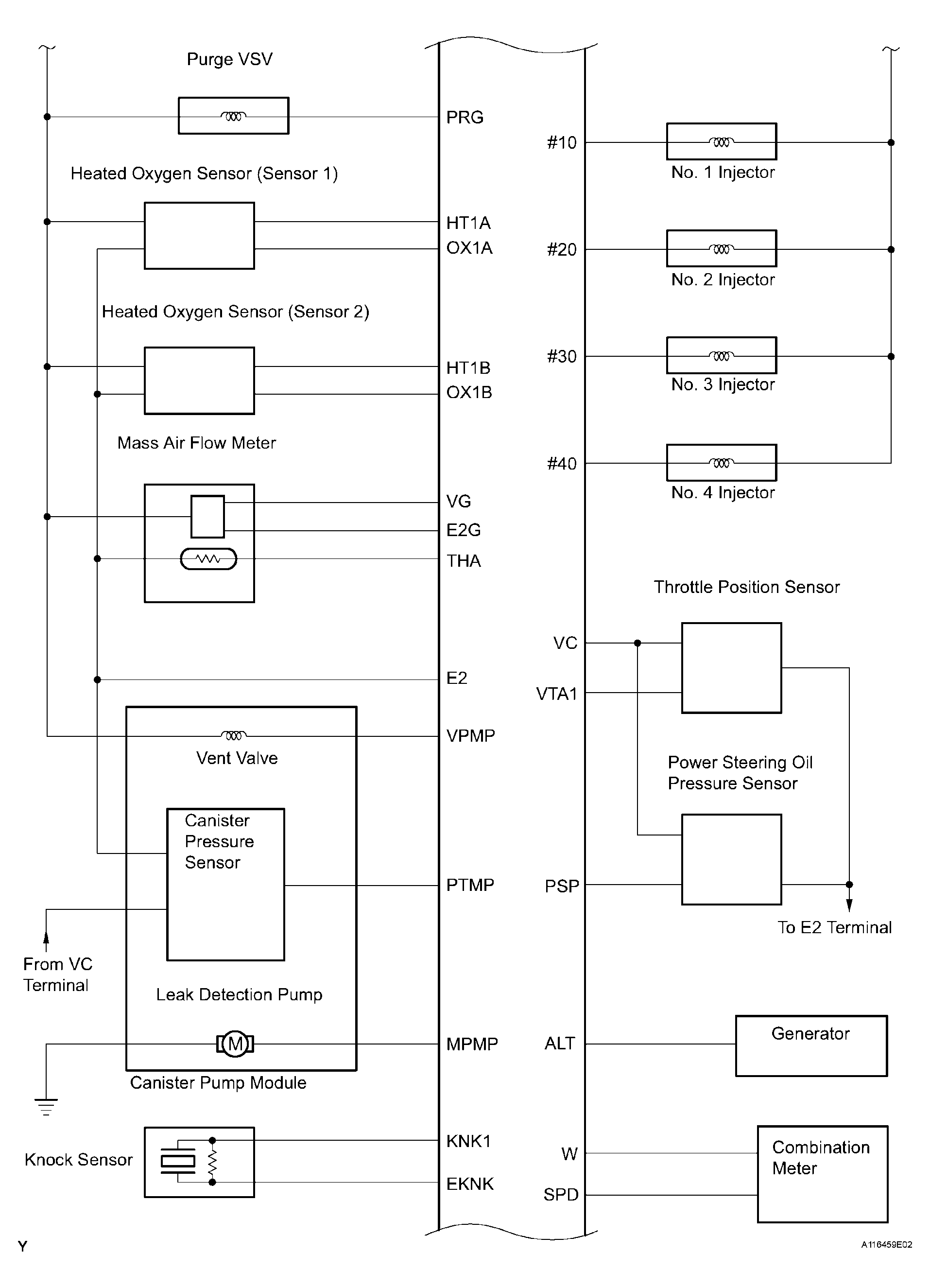

Fig 2: Identifying SFI System Diagram (2 Of 3)
G04225351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

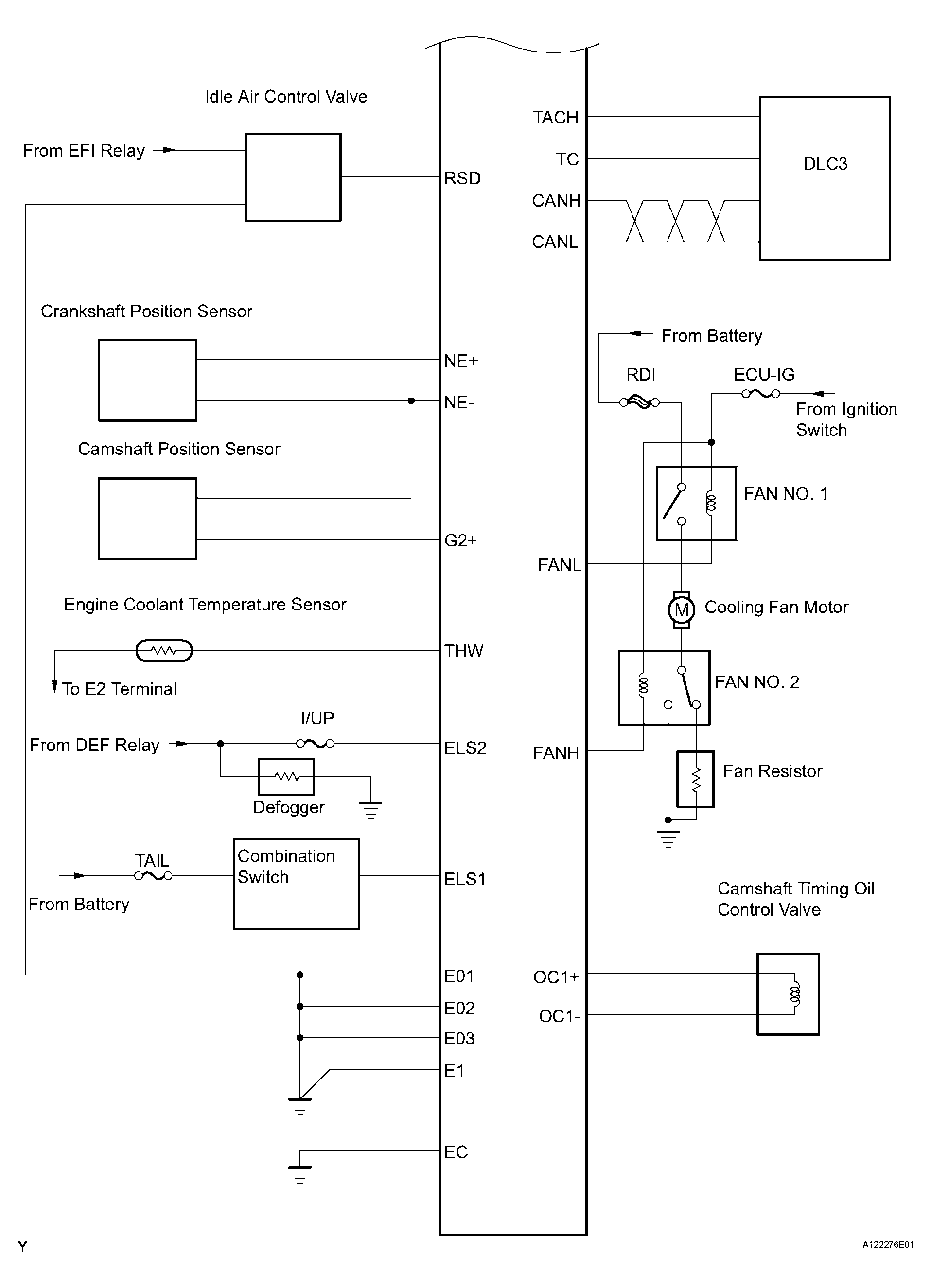

Fig 3: Identifying SFI System Diagram (3 Of 3)
G04225352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
