Home >> Scion >> 2007 >> tC Base, Standard >> Repair and Diagnosis >> General Information >> Computer Relearn >> Engine Control System (2AZ-FE) >> ECM >> Components

Engine Control System (2AZ-FE): ECM: Components

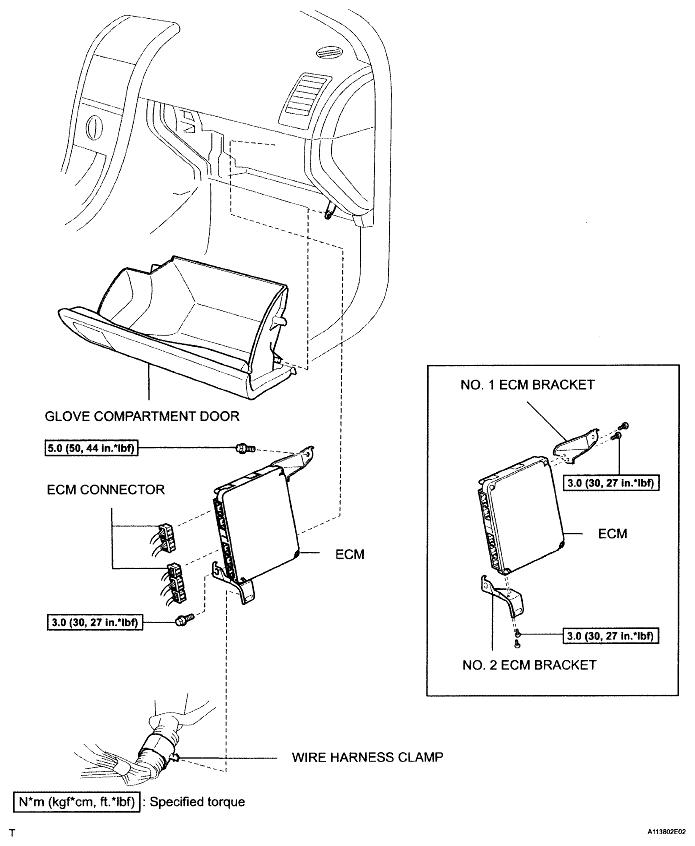

Fig 1: Identifying ECM Components With Specifications
G04869404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
