Engine Control System (2AZ-FE)
>>
Knock Sensor
>>
Components
Knock Sensor: Components

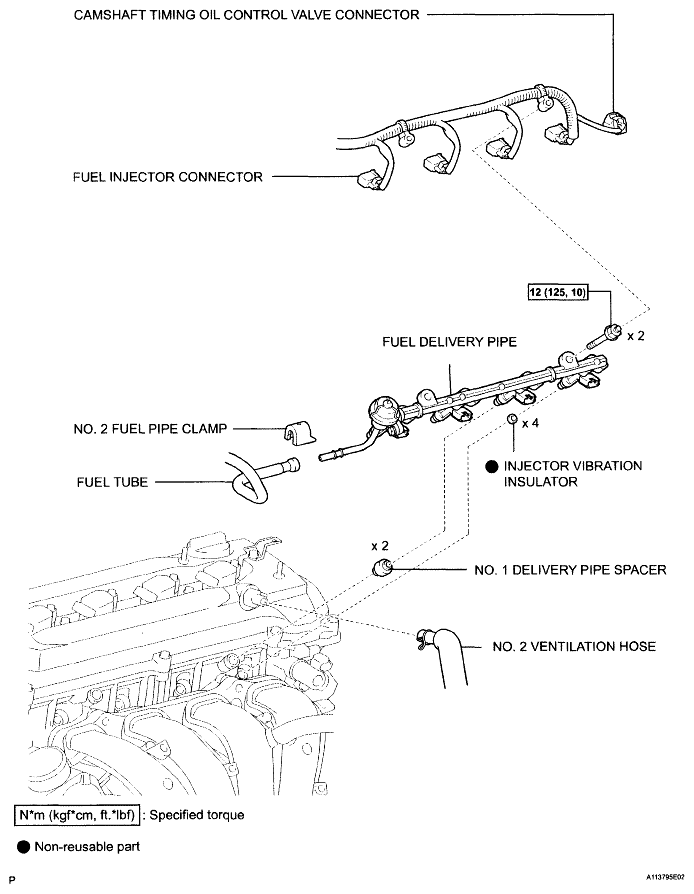

Fig 1: Identifying Components With Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

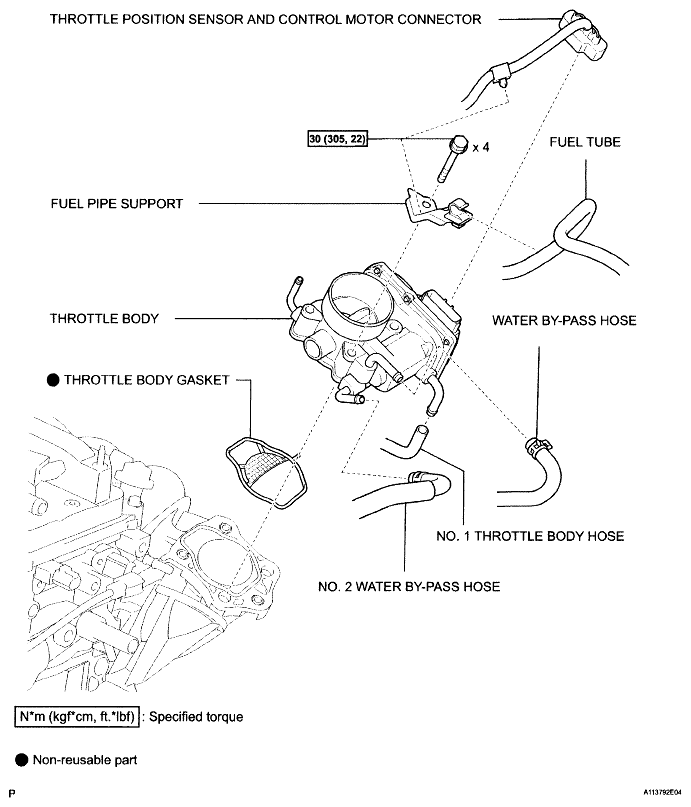

Fig 2: Identifying Components With Specifications (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

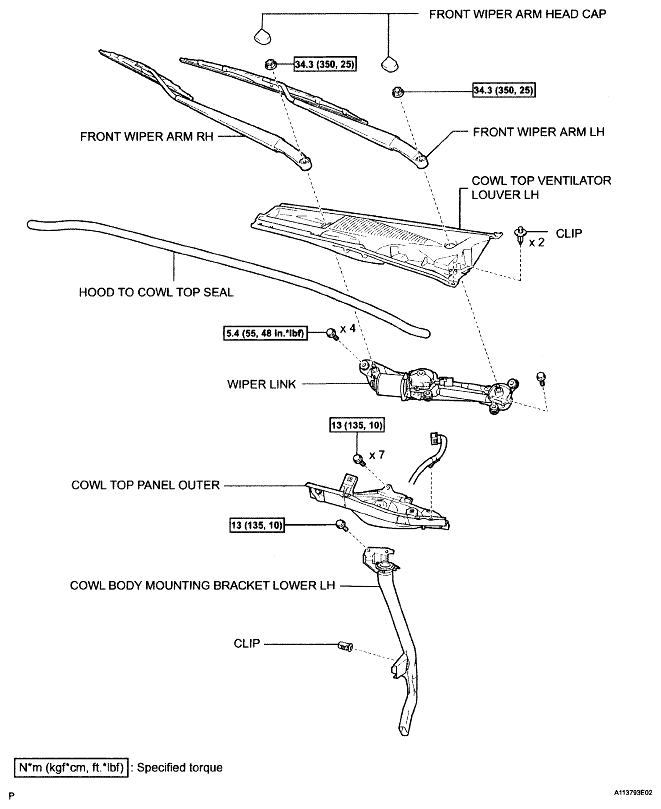

Fig 3: Identifying Components With Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

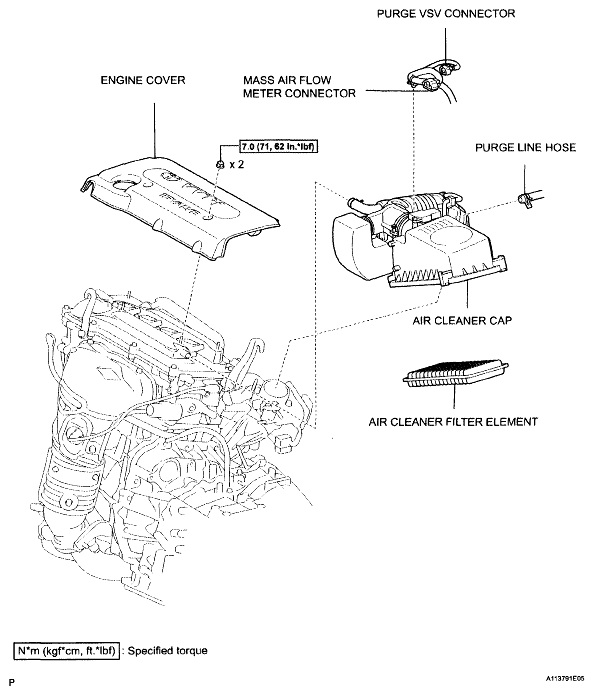

Fig 4: Identifying Components With Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

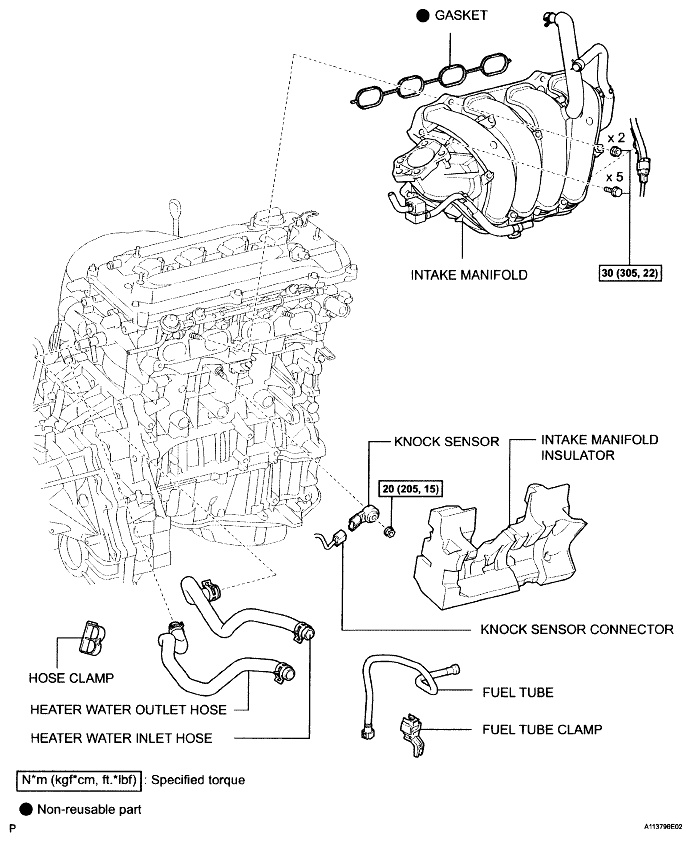

Fig 5: Identifying Components With Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
