Throttle Body: Components

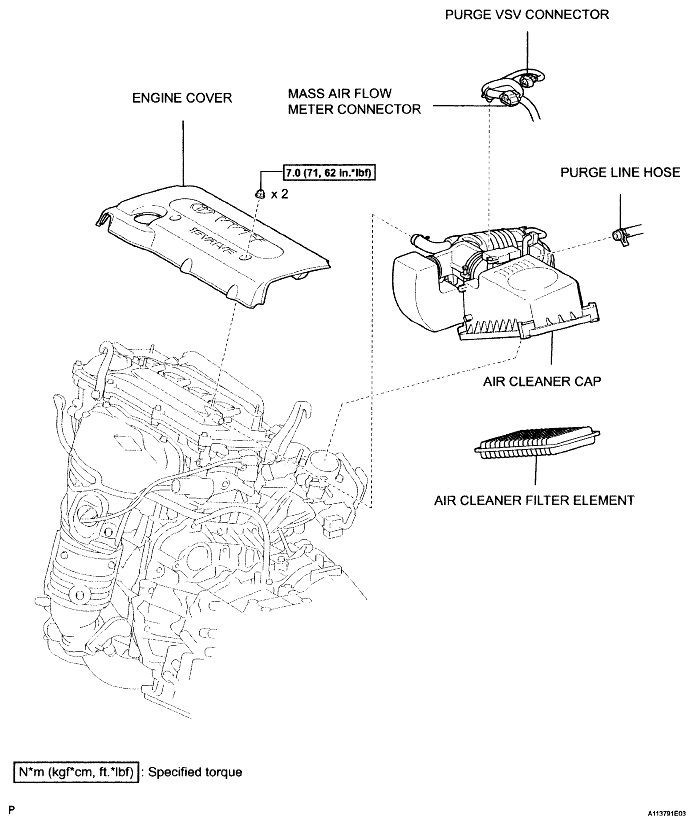

Fig 1: Identifying Throttle Body Components With Specifications (1 Of 2)
G04869339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

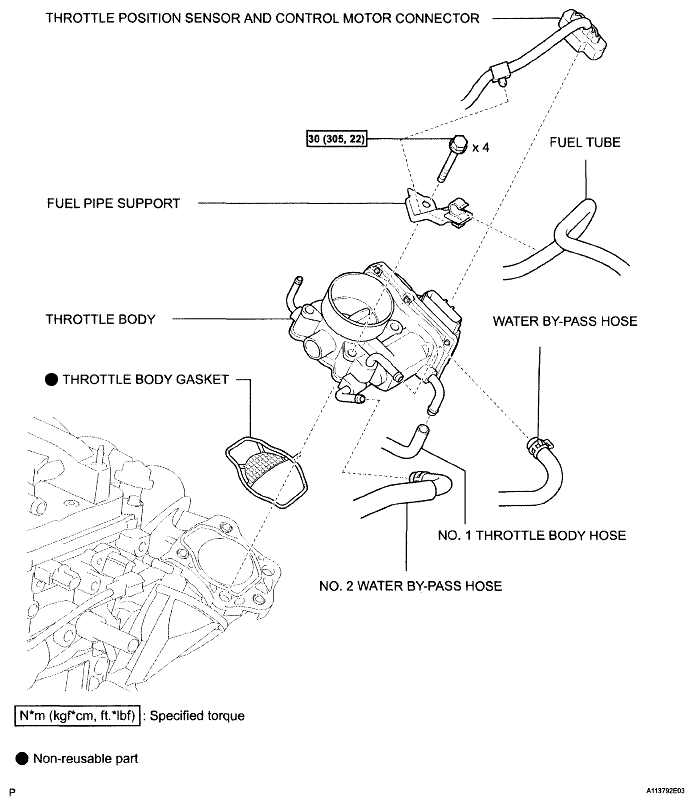

Fig 2: Identifying Throttle Body Components With Specifications (2 Of 2)
G04869340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
