Home >> Scion >> 2008 >> tC Base, Automatic >> Repair and Diagnosis >> Engine Performance >> 2AZ-FE Engine Control System >> ECM >> Components

2AZ-FE Engine Control System: ECM: Components

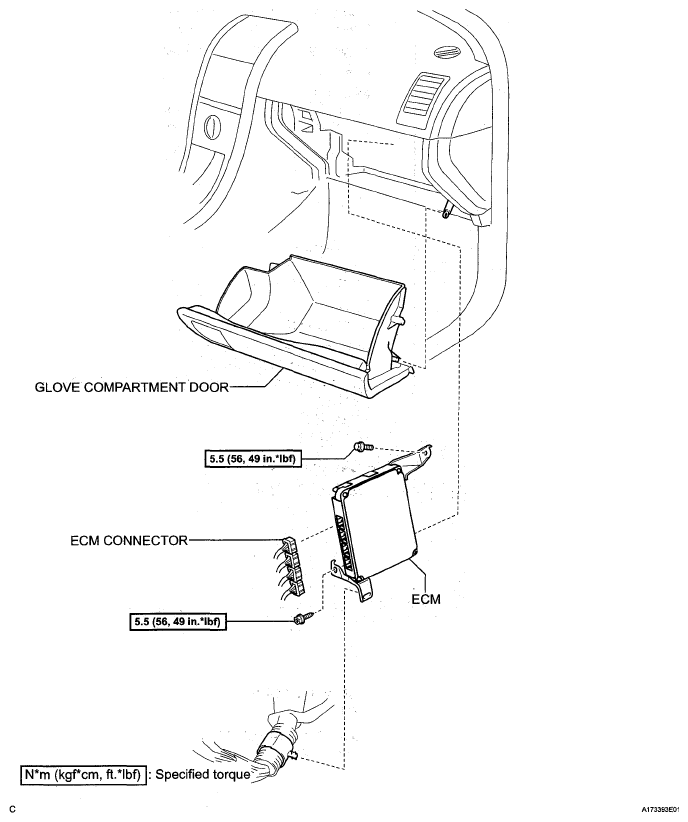

Fig 1: ECM Replacement Components With Torque Specifications
G05539214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
