ECM Power Source Circuit: Wiring Diagram

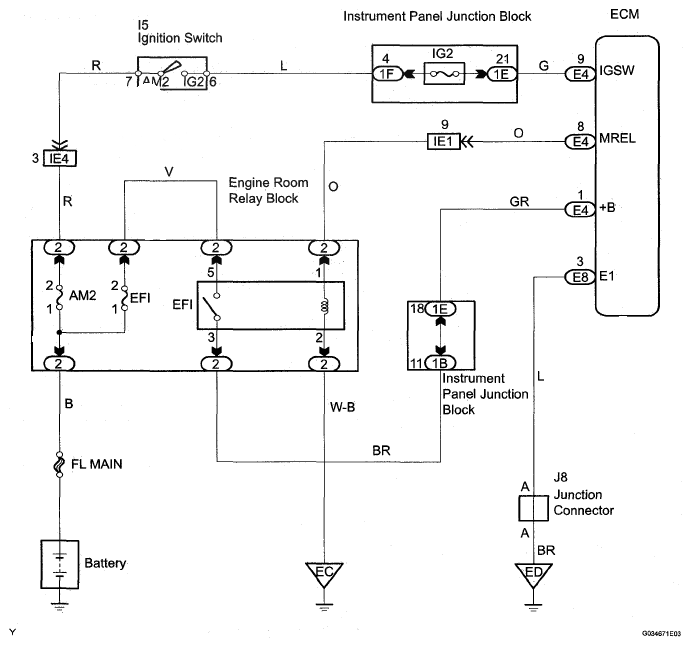

Fig 1: ECM Power Source - Wiring Diagram

G05539151

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
