Home >> Scion >> 2008 >> tC Base, Standard >> Repair and Diagnosis >> Engine Performance >> 2AZ-FE Engine Control System >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

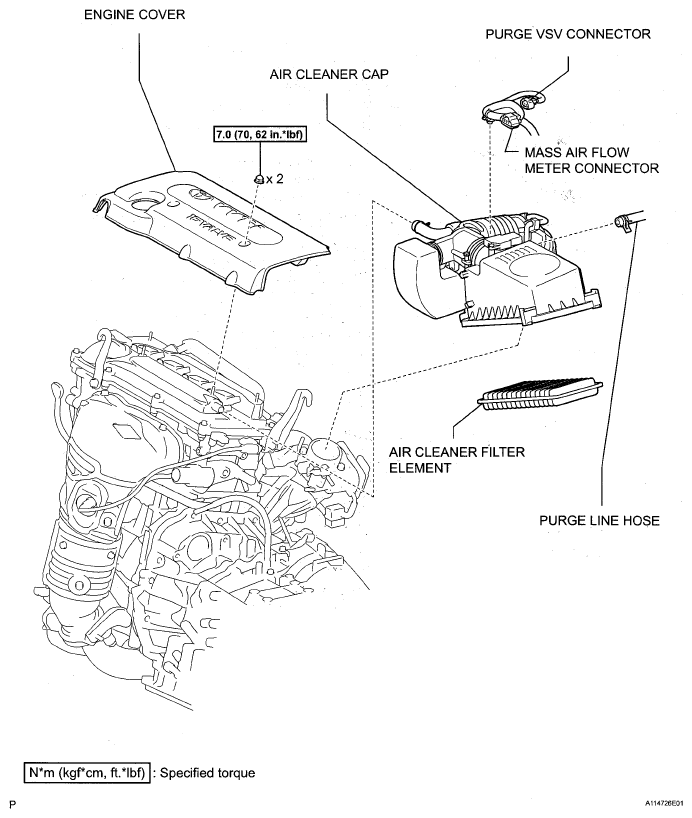

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications (1 Of 2)
G05539228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

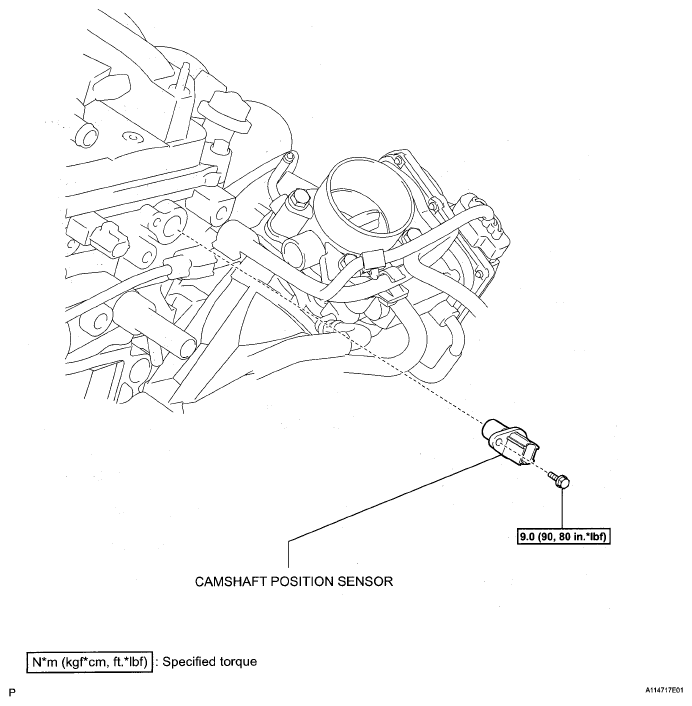

Fig 2: Camshaft Position Sensor Replacement Components With Torque Specifications (2 Of 2)
G05539229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
