tC Base, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
2AZ-FE Engine Control System
>>
Knock Sensor
>>
Components
Knock Sensor: Components

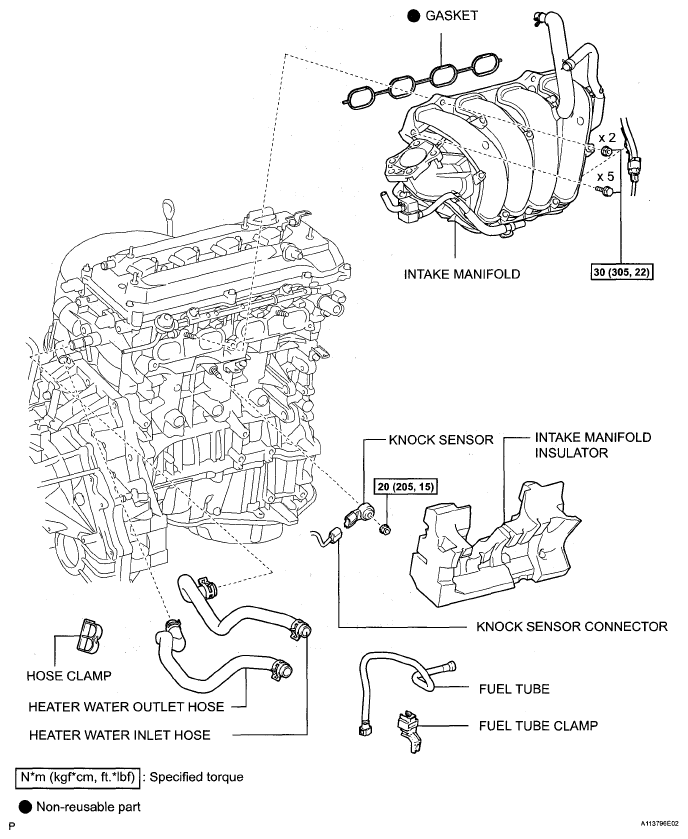

Fig 1: Knock Sensor Replacement Components With Torque Specifications (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

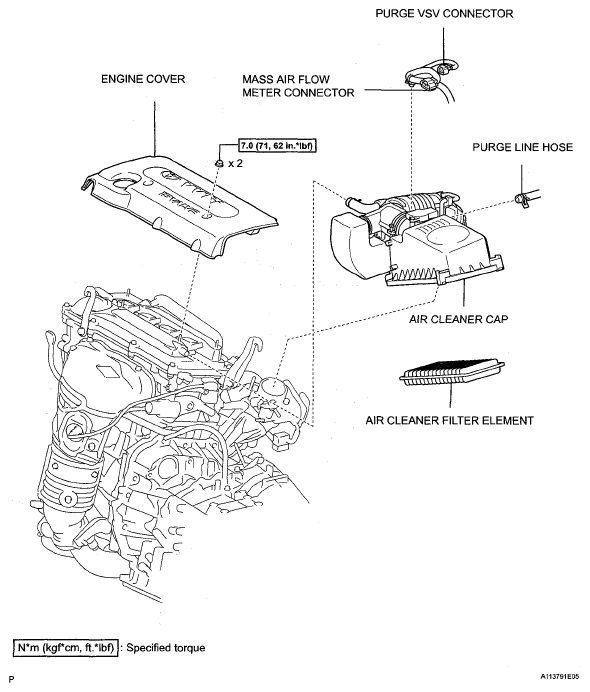

Fig 2: Knock Sensor Replacement Components With Torque Specifications(2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

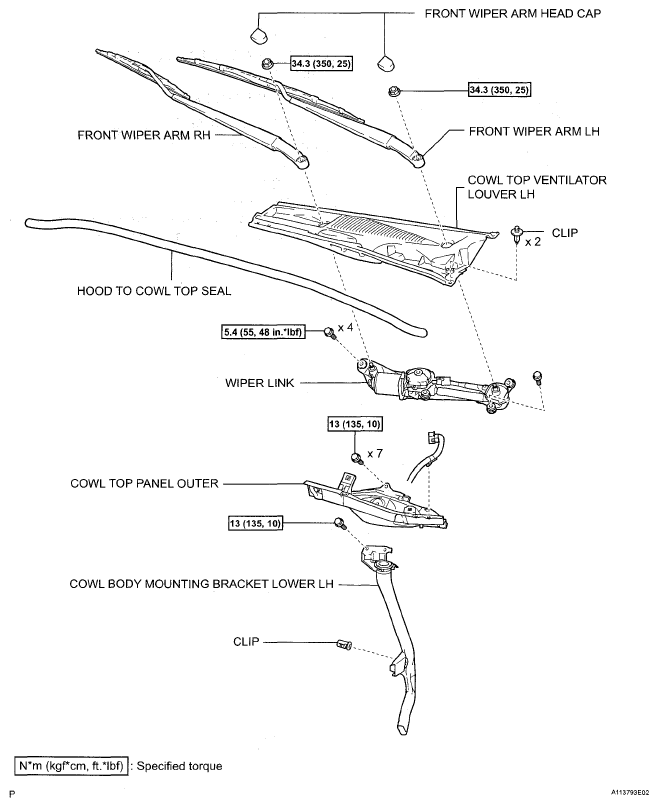

Fig 3: Knock Sensor Replacement Components With Torque Specifications (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

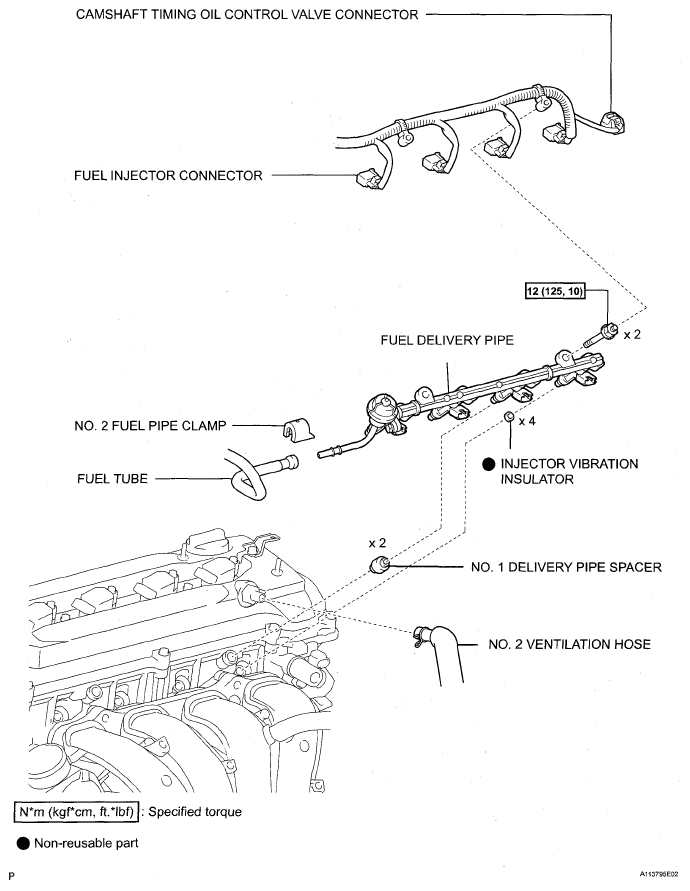

Fig 4: Knock Sensor Replacement Components With Torque Specifications (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

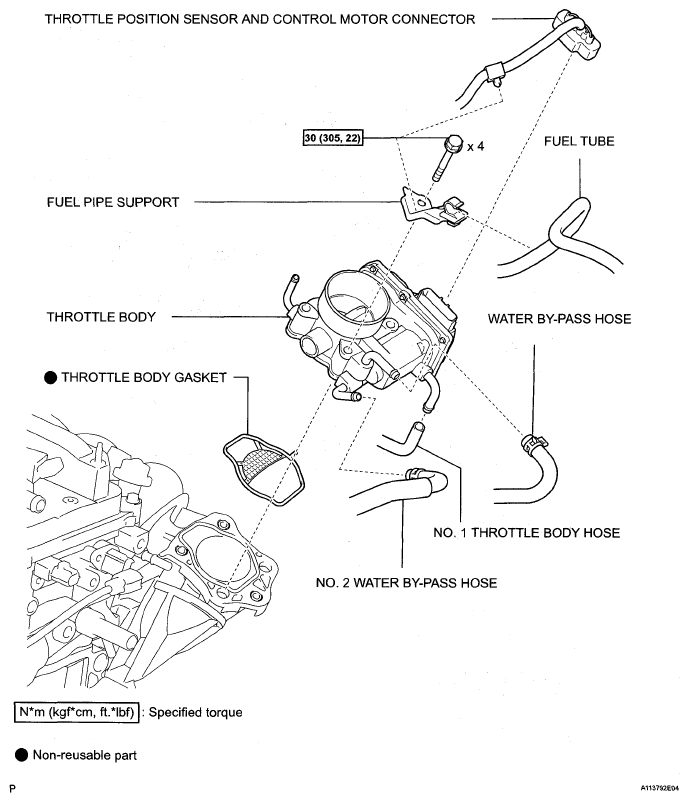

Fig 5: Knock Sensor Replacement Components With Torque Specifications (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
