Integration Relay: Removal

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE INTEGRATION RELAY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.

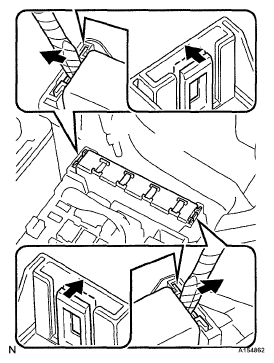

      2. Fig 1: Removing Integration Relay
      G05398815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 3 connectors.
