Fuel Injector Circuit: Wiring Diagram

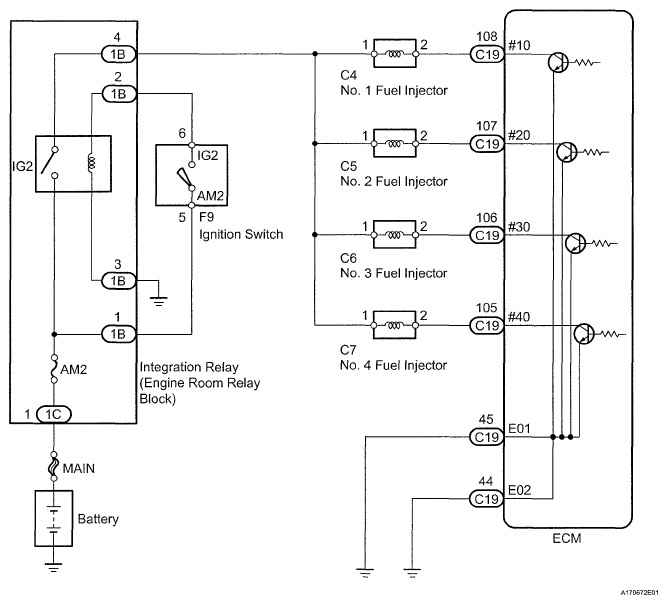

Fig 1: Fuel Injector Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
