Throttle Body: Inspection: Inspection

  1. INSPECT THROTTLE BODY
    1. Measure the resistance of the throttle control motor.

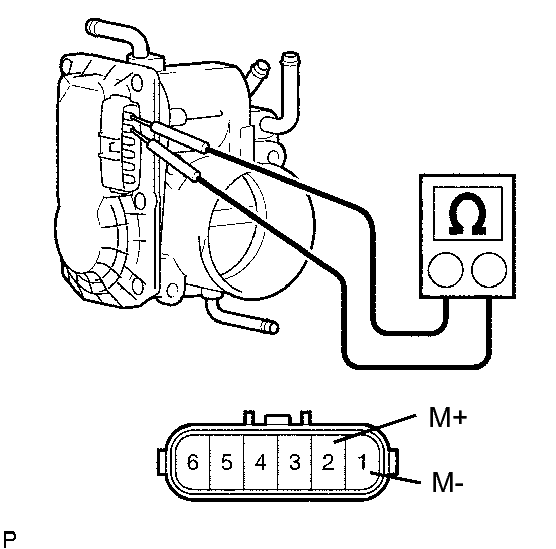

      Fig 1: Identifying Resistance Of Throttle Control Motor Connector Terminal
      GTY161769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Specified Condition
      1 (M-) - 2 (M+) 0.3 to 100 Ω at 20°C (68°F)

      If the result is not as specified, replace the throttle body.
