Parts Location: Illustration

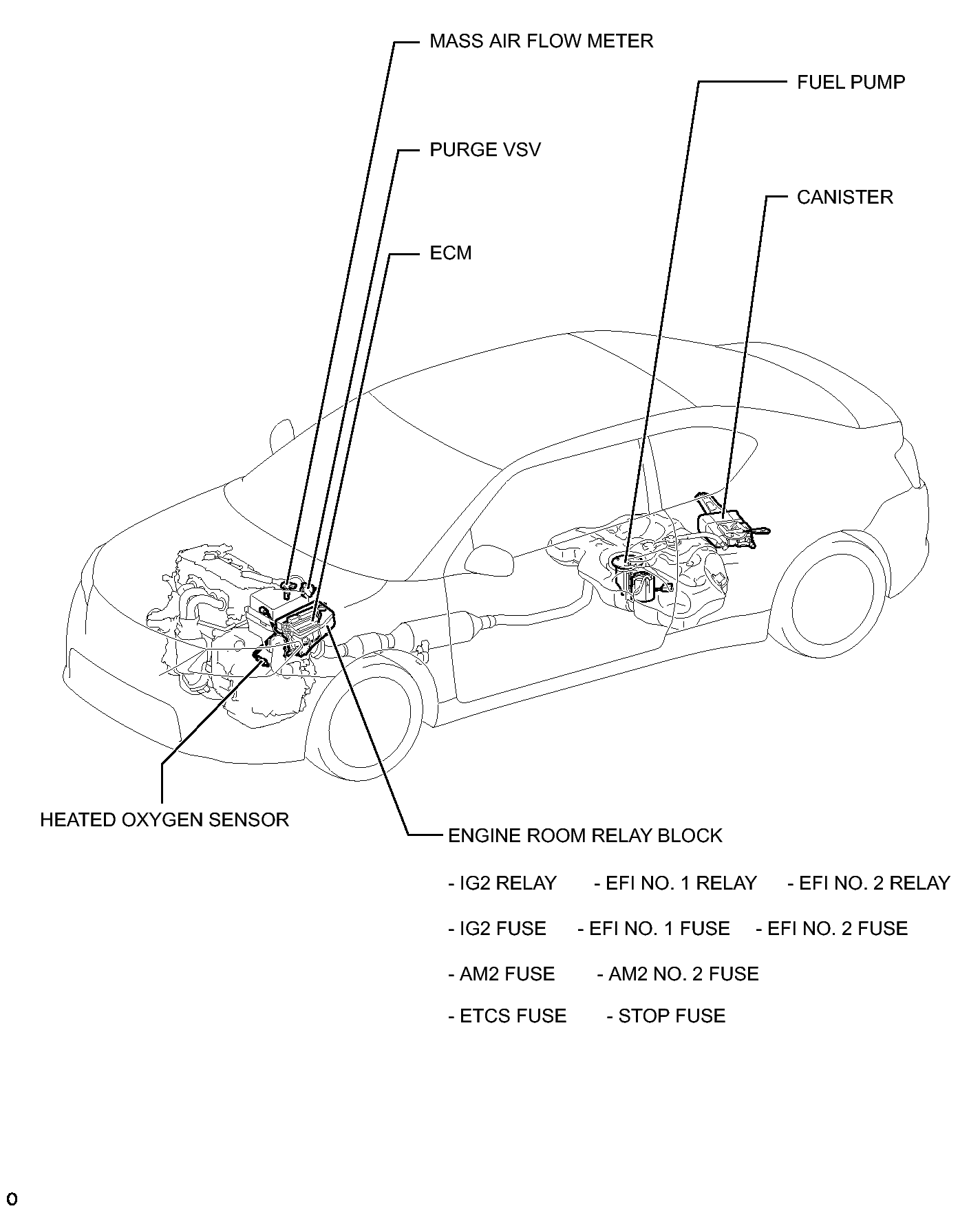

Fig 1: Identifying SFI System Components Location (1 Of 4)
GTY310450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

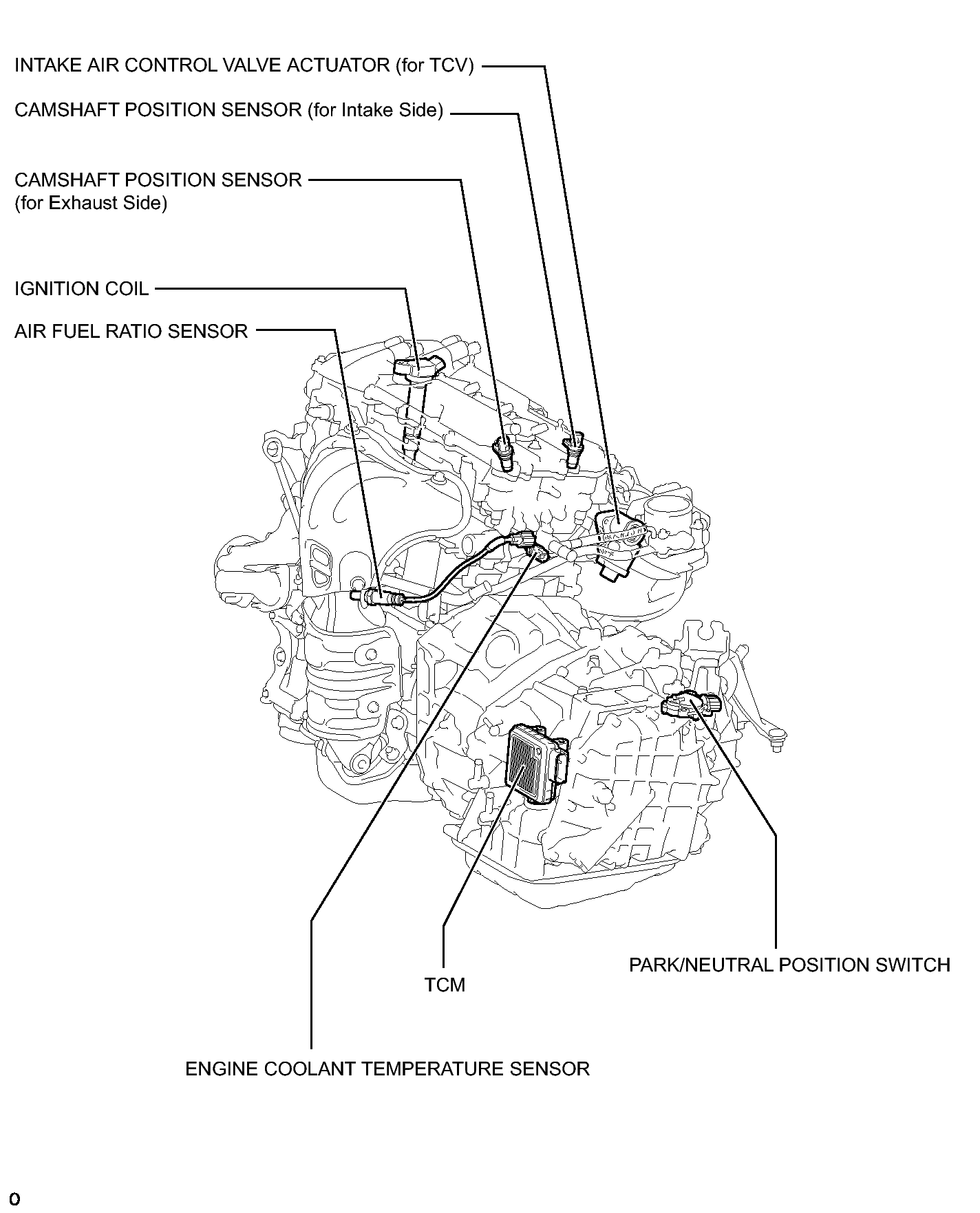

Fig 1: Identifying SFI System Components Location (2 Of 4)
GTY314144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

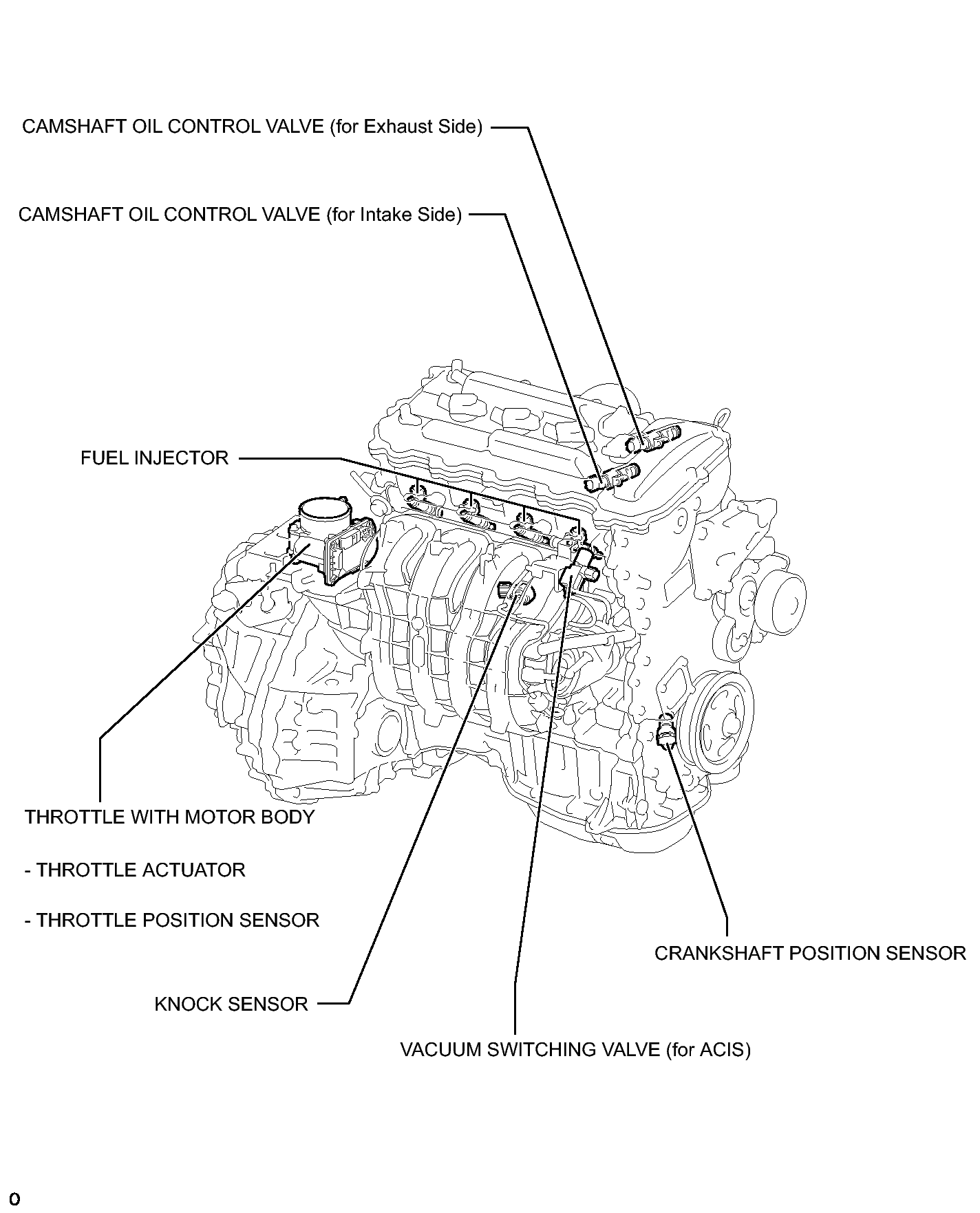

Fig 1: Identifying SFI System Components Location (3 Of 4)
GTY344997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

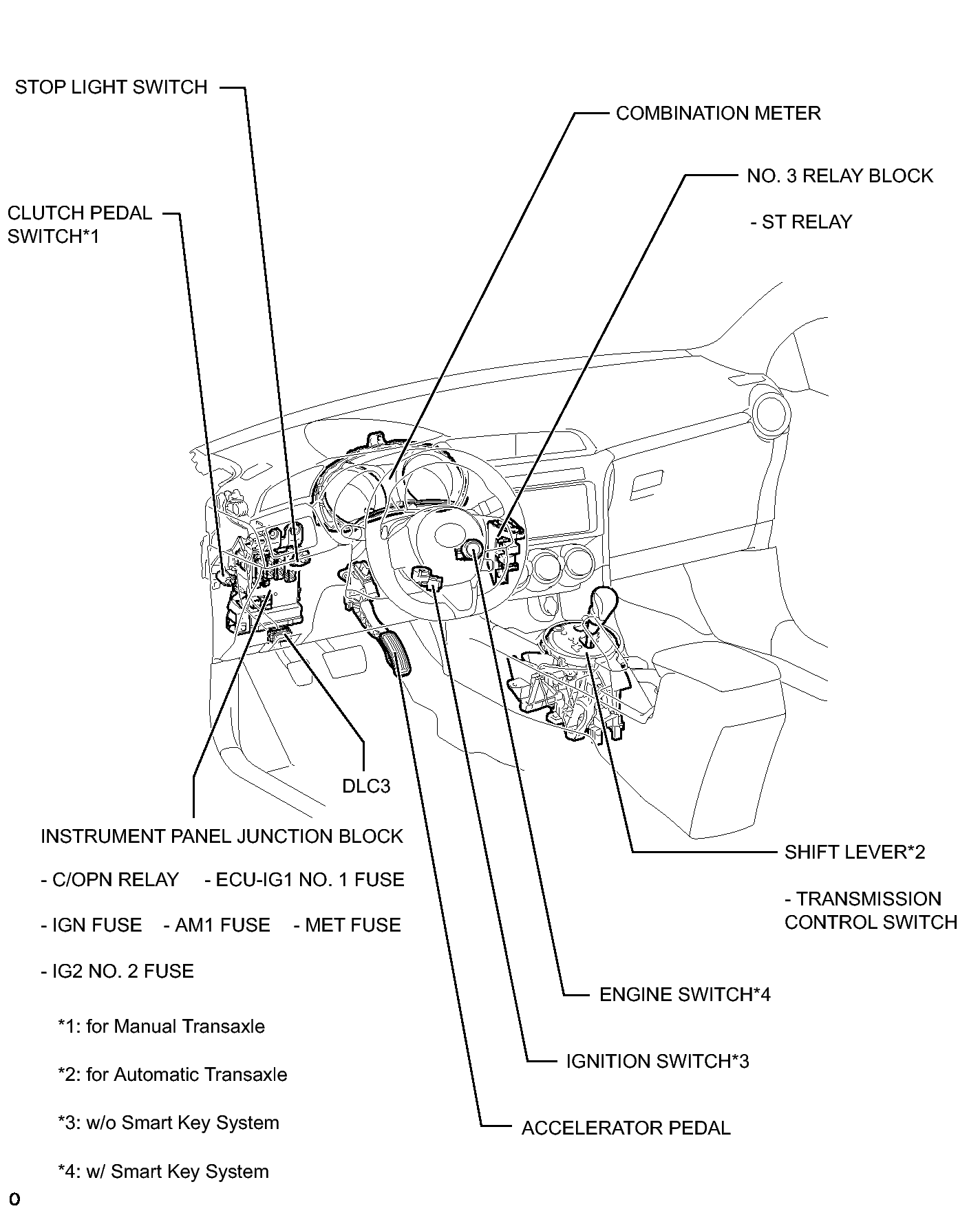

Fig 1: Identifying SFI System Components Location (4 Of 4)
GTY345403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
