Home >> Scion >> 2012 >> tC Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Accelerator Pedal >> Components >> Illustration

Accelerator Pedal: Components: Illustration

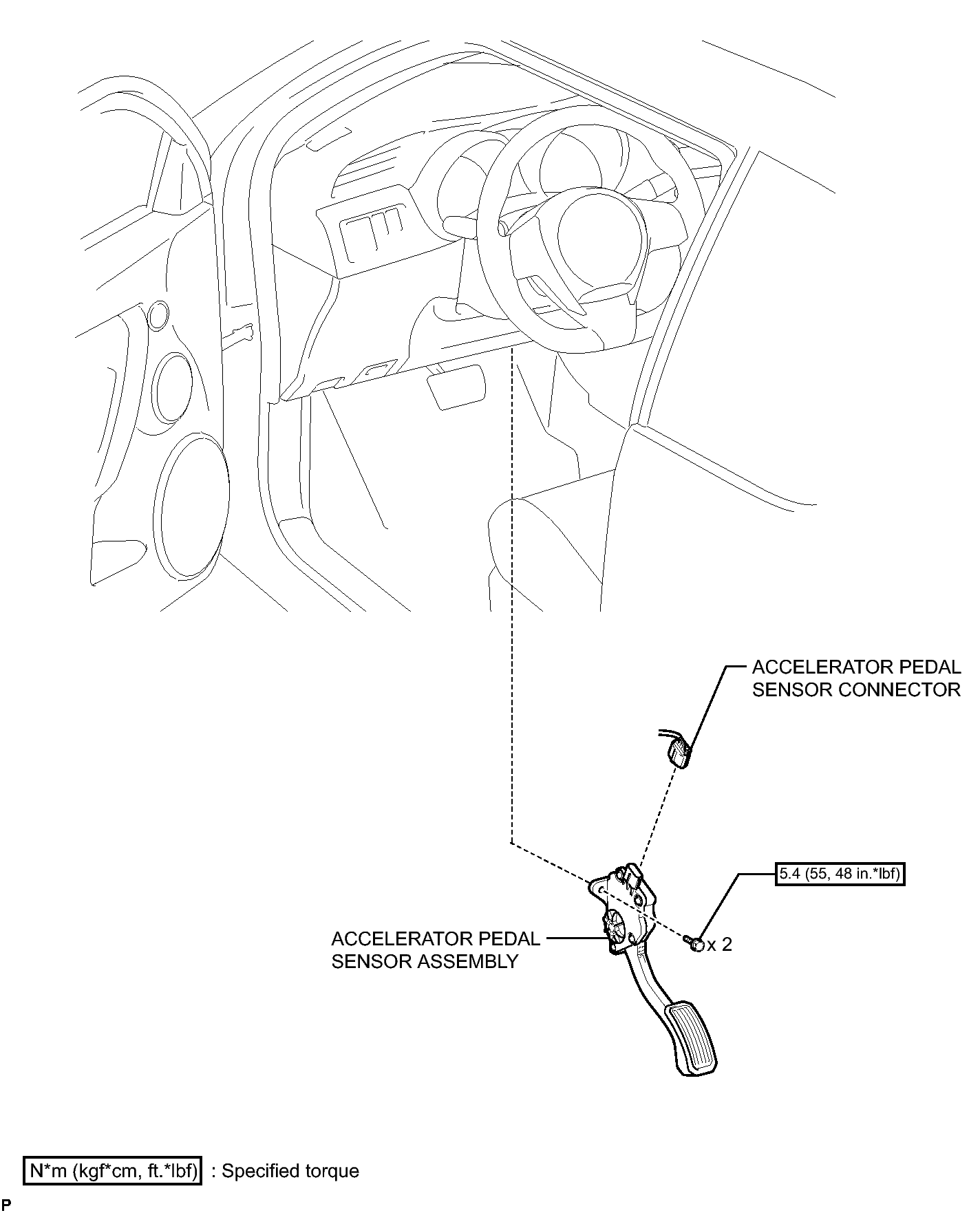

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications

GTY313789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
