Camshaft Oil Control Valve: Components: Illustration

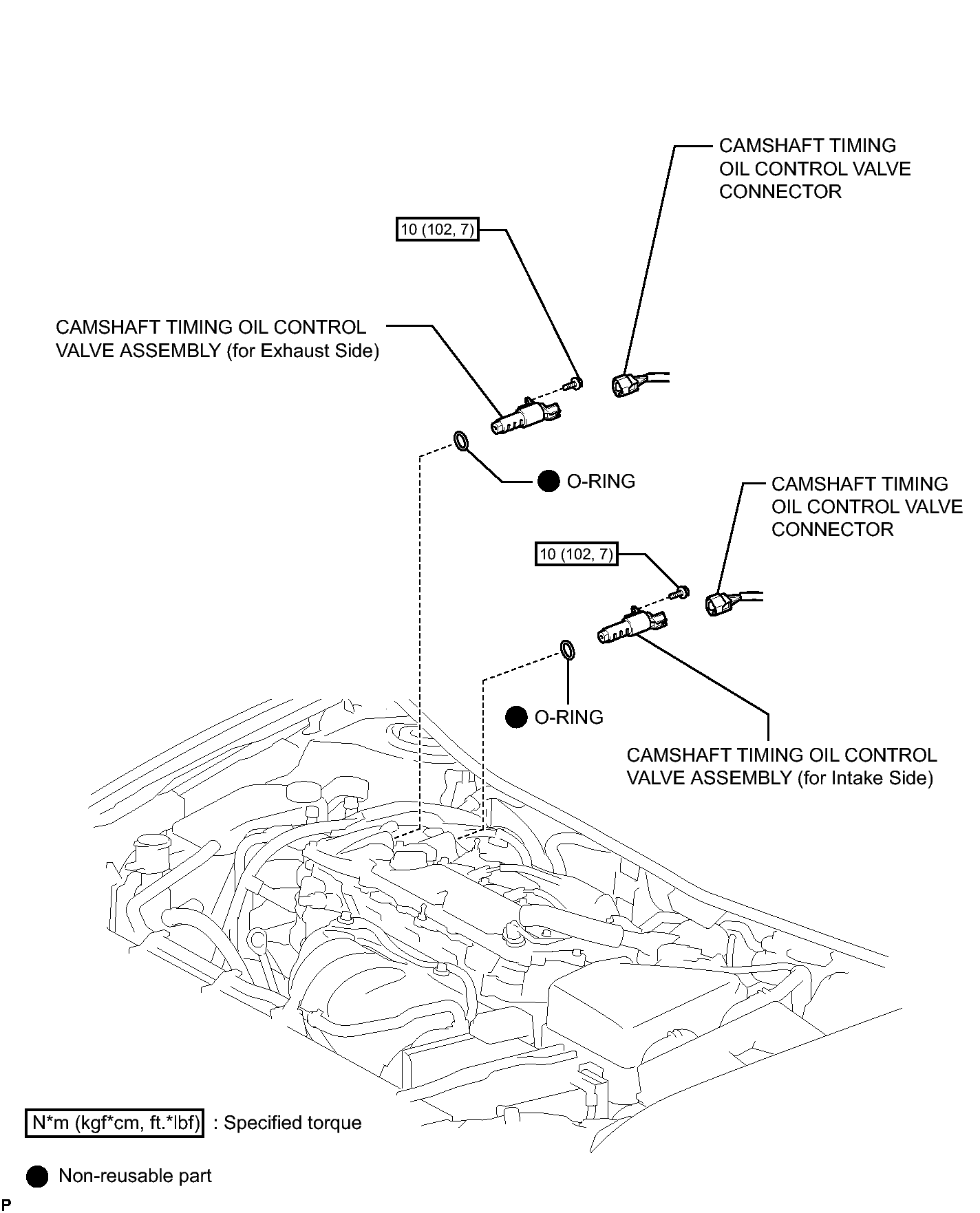

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications

GTY311809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
