Home >> Scion >> 2012 >> tC Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Camshaft Position Sensor >> Components >> Illustration

Camshaft Position Sensor: Components: Illustration

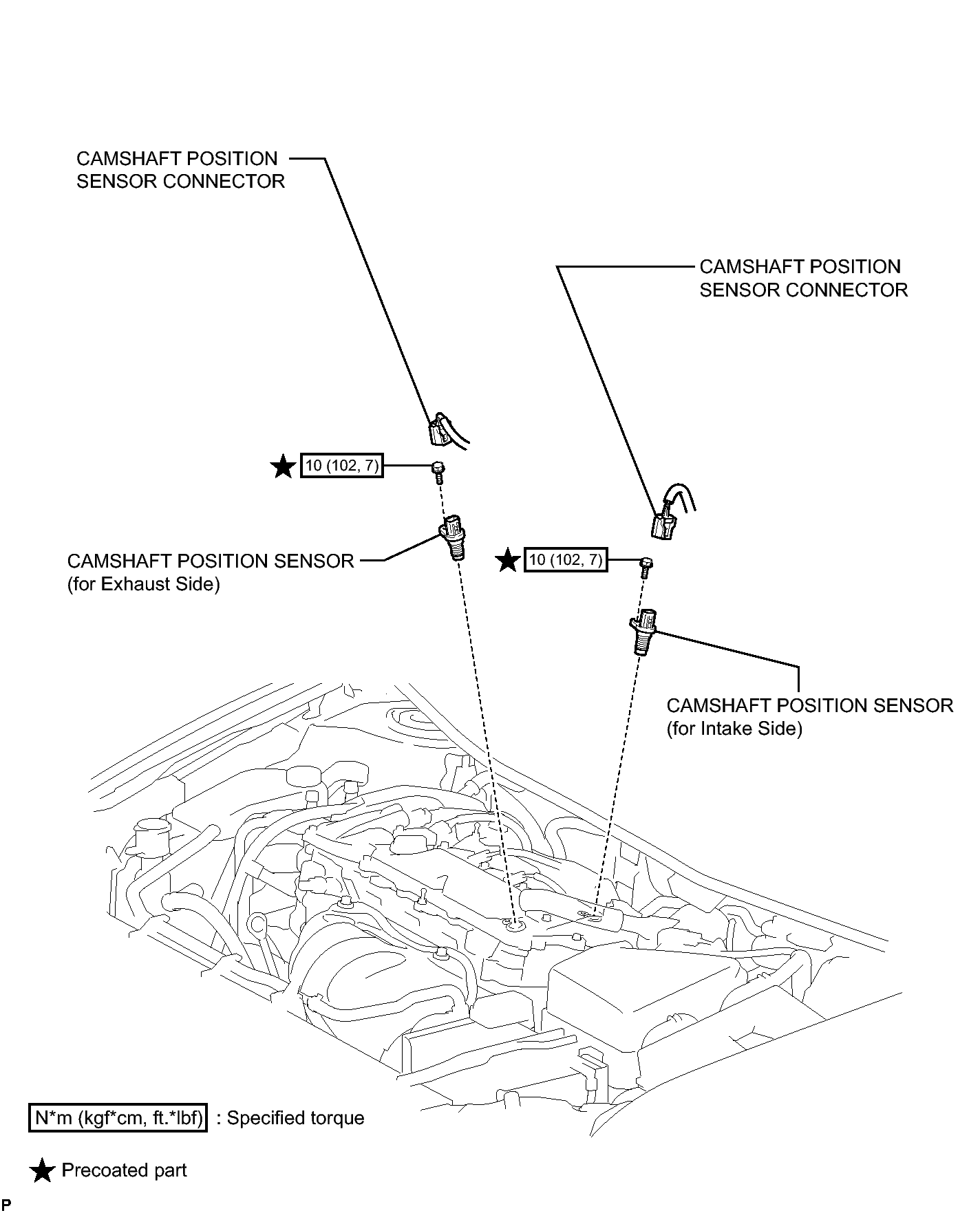

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications

GTY310605

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
