Home >> Scion >> 2012 >> tC Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Engine Coolant Temperature Sensor >> Components >> Illustration

Engine Coolant Temperature Sensor: Components: Illustration

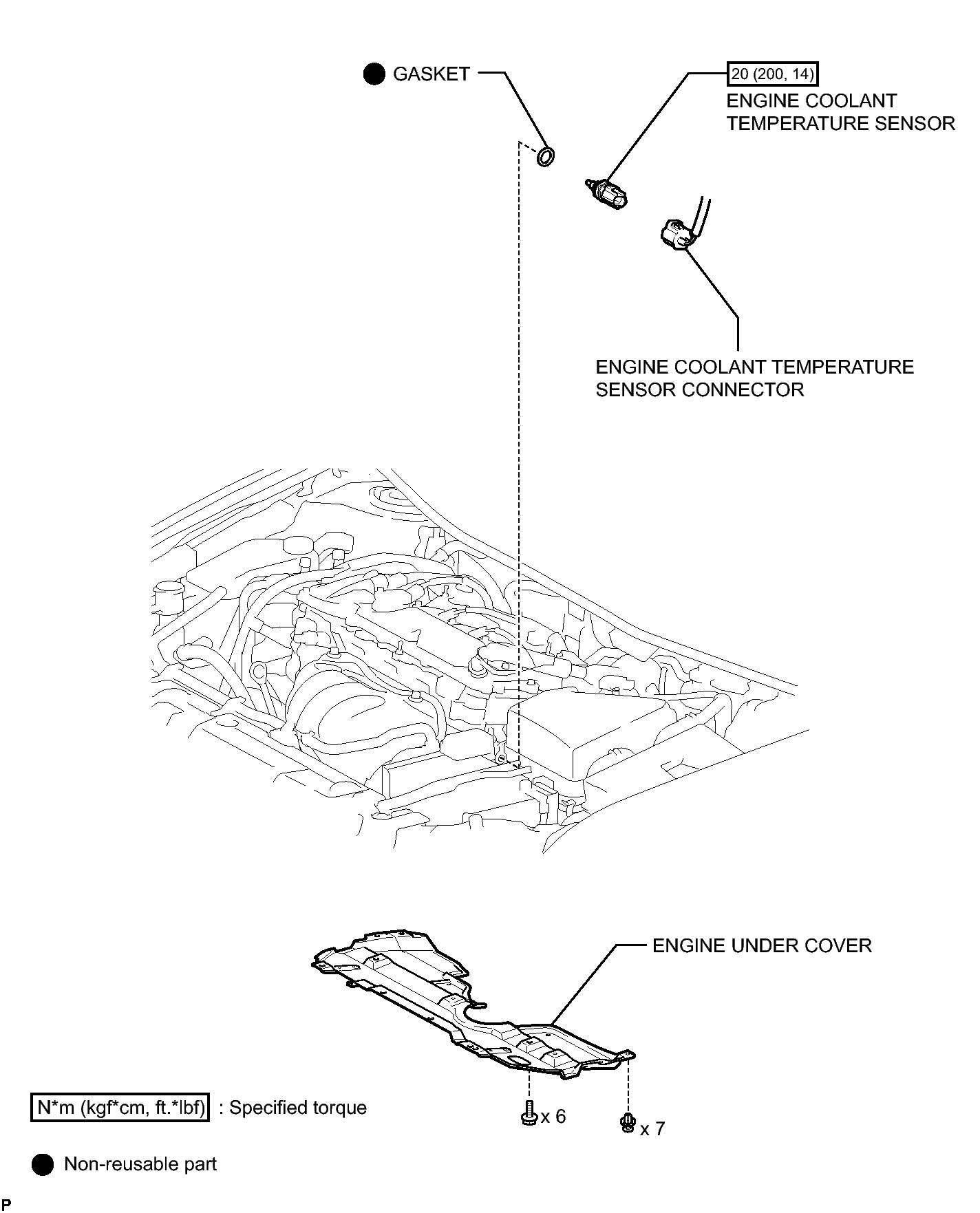

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications
GTY310980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
